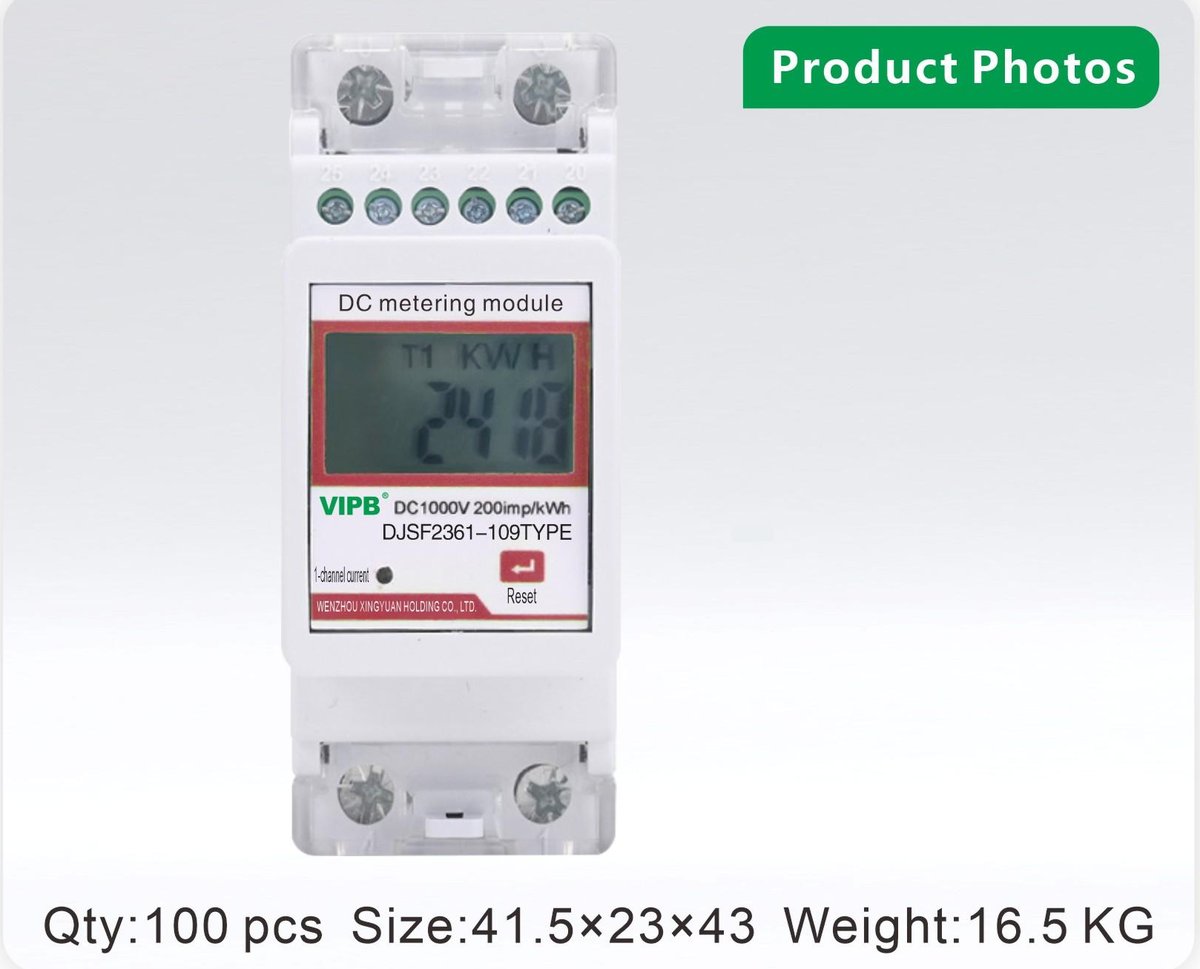

DJSF2361-109
DC DIN-rail energy metering module / 2P
Description
The DJSF2361-109 is a DIN-rail DC energy meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of DC1000V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 2P DC metering module. The housing measures 36×70×92 mm and weighs ≈0.18kg. Typical applications include DC charging, photovoltaic and battery-storage systems, and DC distribution monitoring.
Technical Specifications
| Model | DJSF2361-109 |
| Voltage | DC1000V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 36×70×92 mm |
| Weight | ≈0.18kg |
| Display | LCD |
| Features | 2P DC metering module |
| Packing | 100pcs/ctn, 16.5kg, 41.5×23×43 |

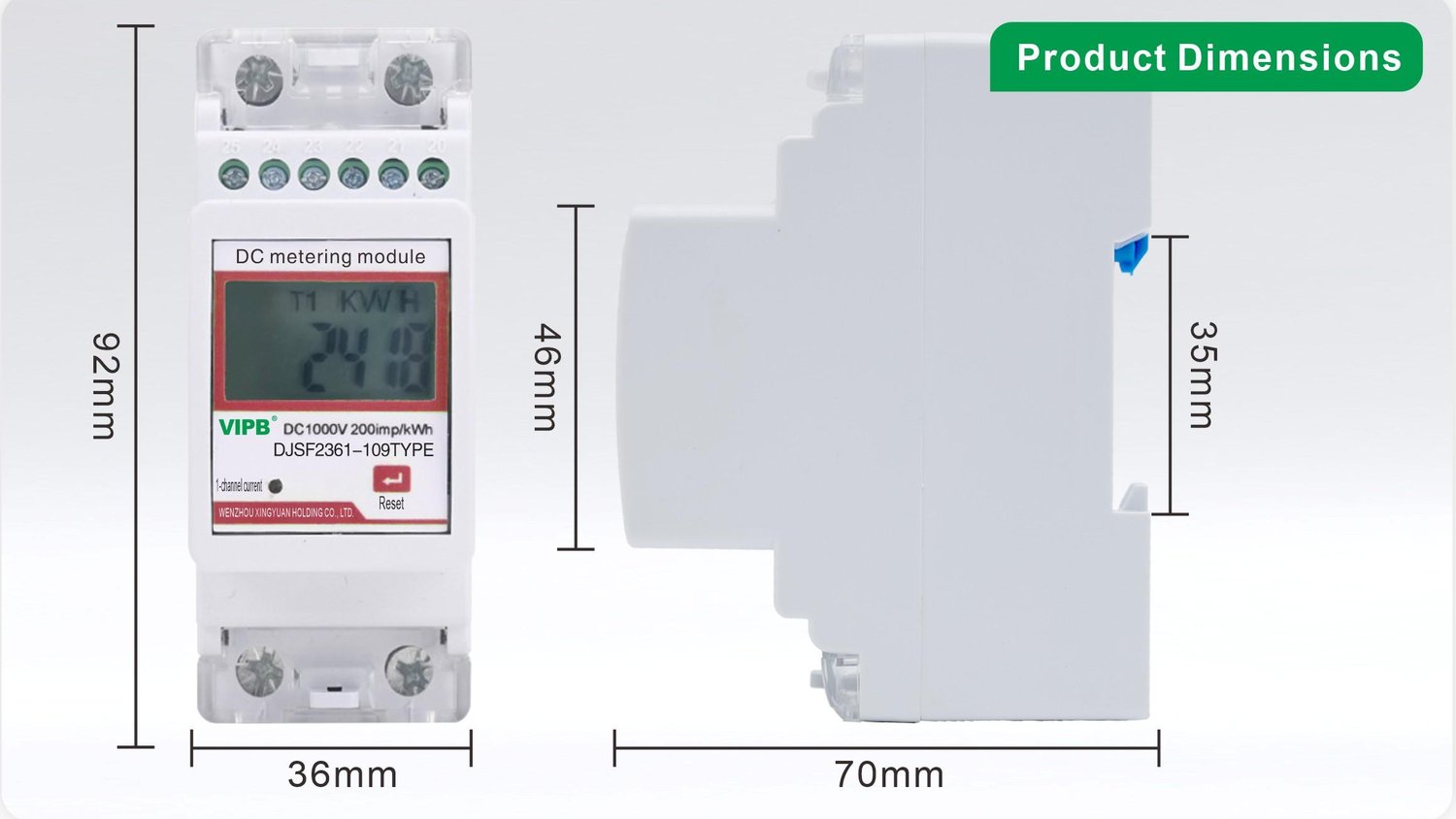

Dimensions
