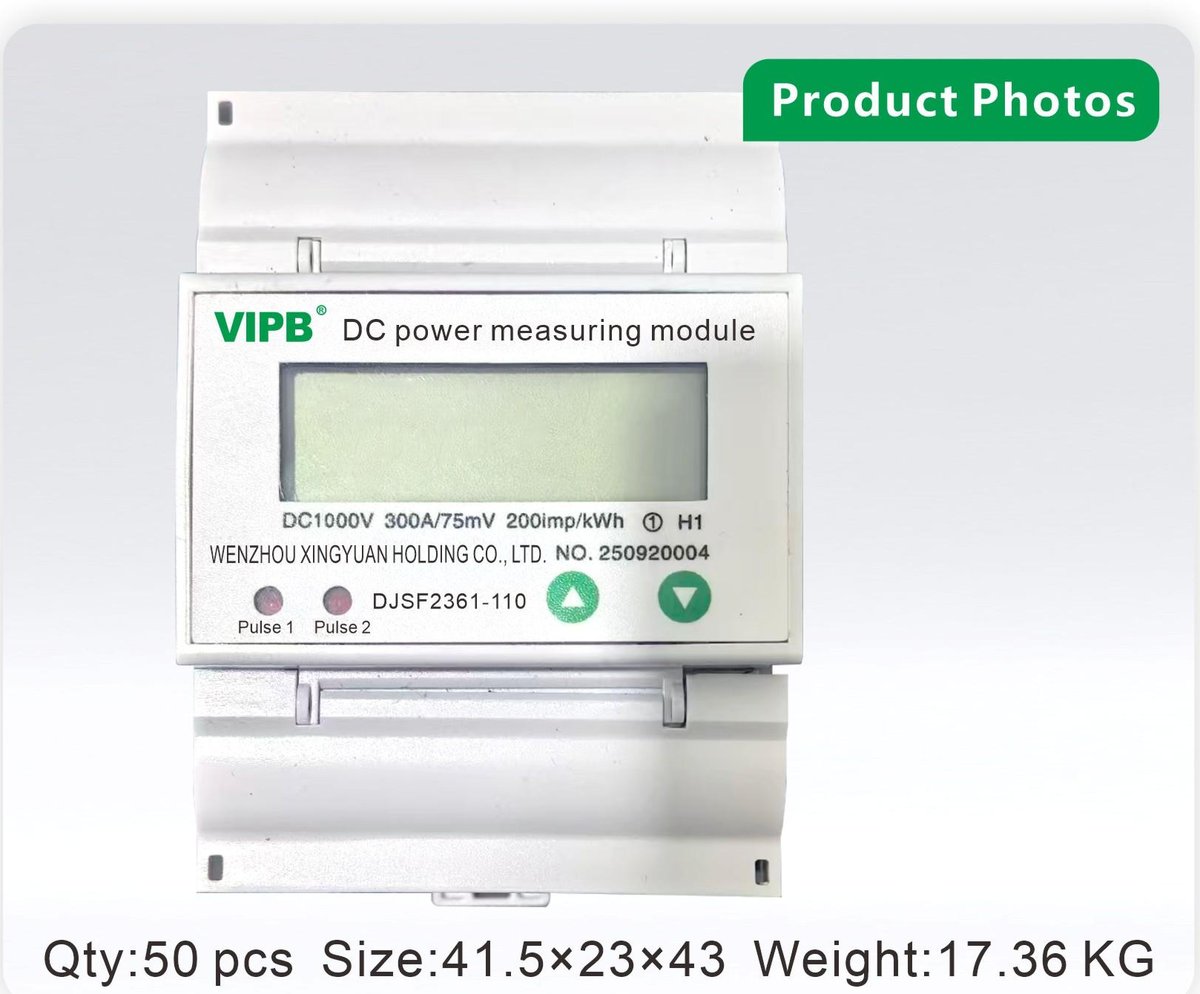

DJSF2361-110
DC DIN-rail energy metering module / 4P
Description
The DJSF2361-110 is a DIN-rail DC energy meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of DC1000V, a rated current of 300A/75mV, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: DC power measuring module. The housing measures 72mm×66mm×102mm and weighs ≈0.28kg. Typical applications include DC charging, photovoltaic and battery-storage systems, and DC distribution monitoring.
Technical Specifications
| Product Model | DJSF2361-110 |
| Voltage | DC1000V |
| Accuracy | Class 1 |
| Rated Current | 300A/75mV |
| Dimensions | 72mm×66mm×102mm |
| Weight | ≈0.28kg |
| Display Mode | LCD |
| Product Features | DC power measuring module |
| Packing | 50pcs/ctn, 17.36kg, 41.5×23×43 |

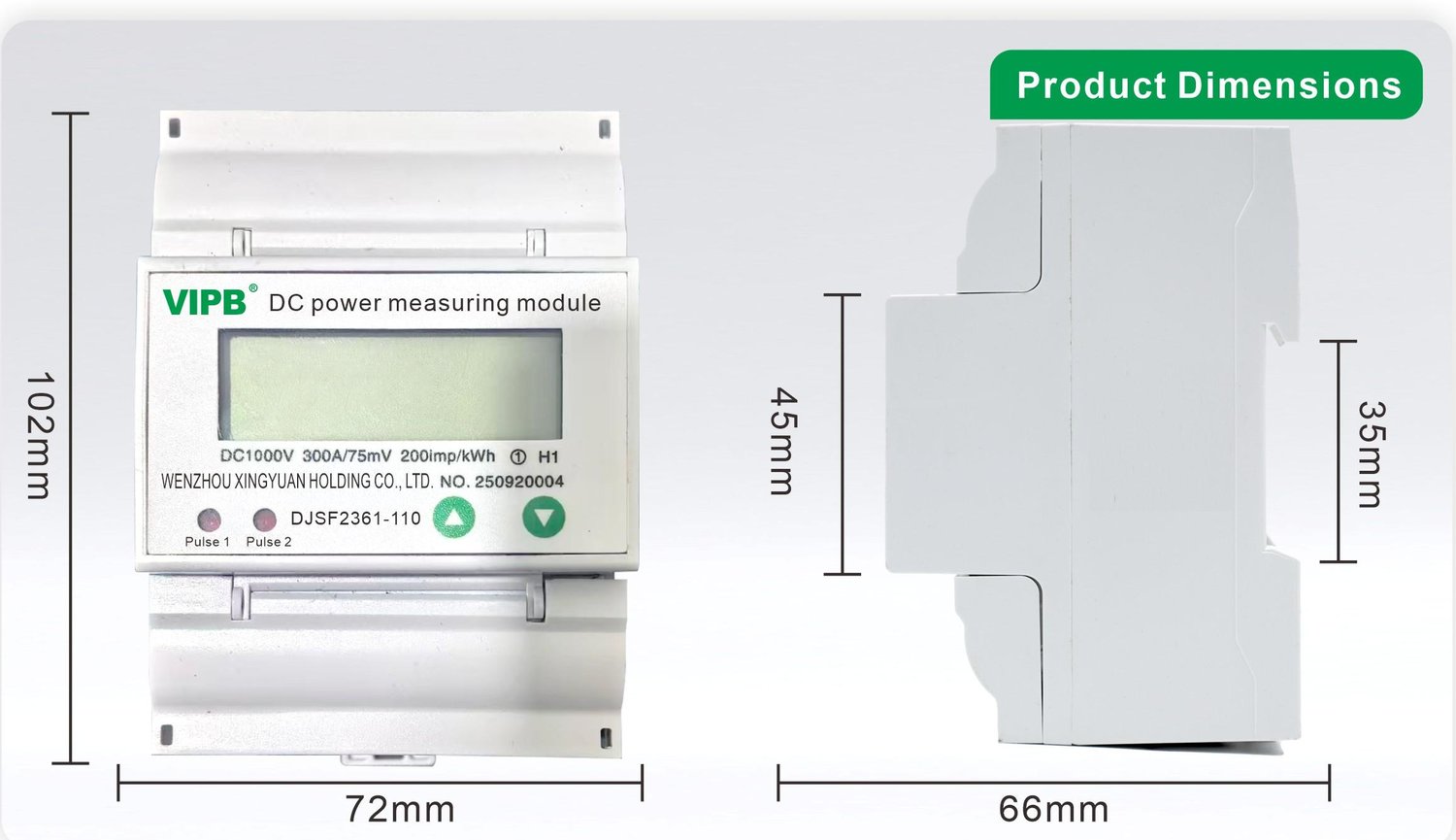

Dimensions
