DDS2361-1
single-phase AC DIN-rail electricity meter / 1P
Description
The DDS2361-1 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220 V, a rated current of 5(60)A, an accuracy of Class 1. Energy readings are shown on a mechanical counter register.
Product features: Single metering, counter display. The housing measures 19 mm × 65mm × 91 mm and weighs 0.08 kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Model | DDS2361-1 |
| Voltage | 220 V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 19 mm × 65mm × 91 mm |
| Weight | 0.08 kg |
| Display Mode | Counter |
| Features | Single metering, counter display |
| Packing | 100pcs/ctn, 9.68kg, 36×23.5×26 |

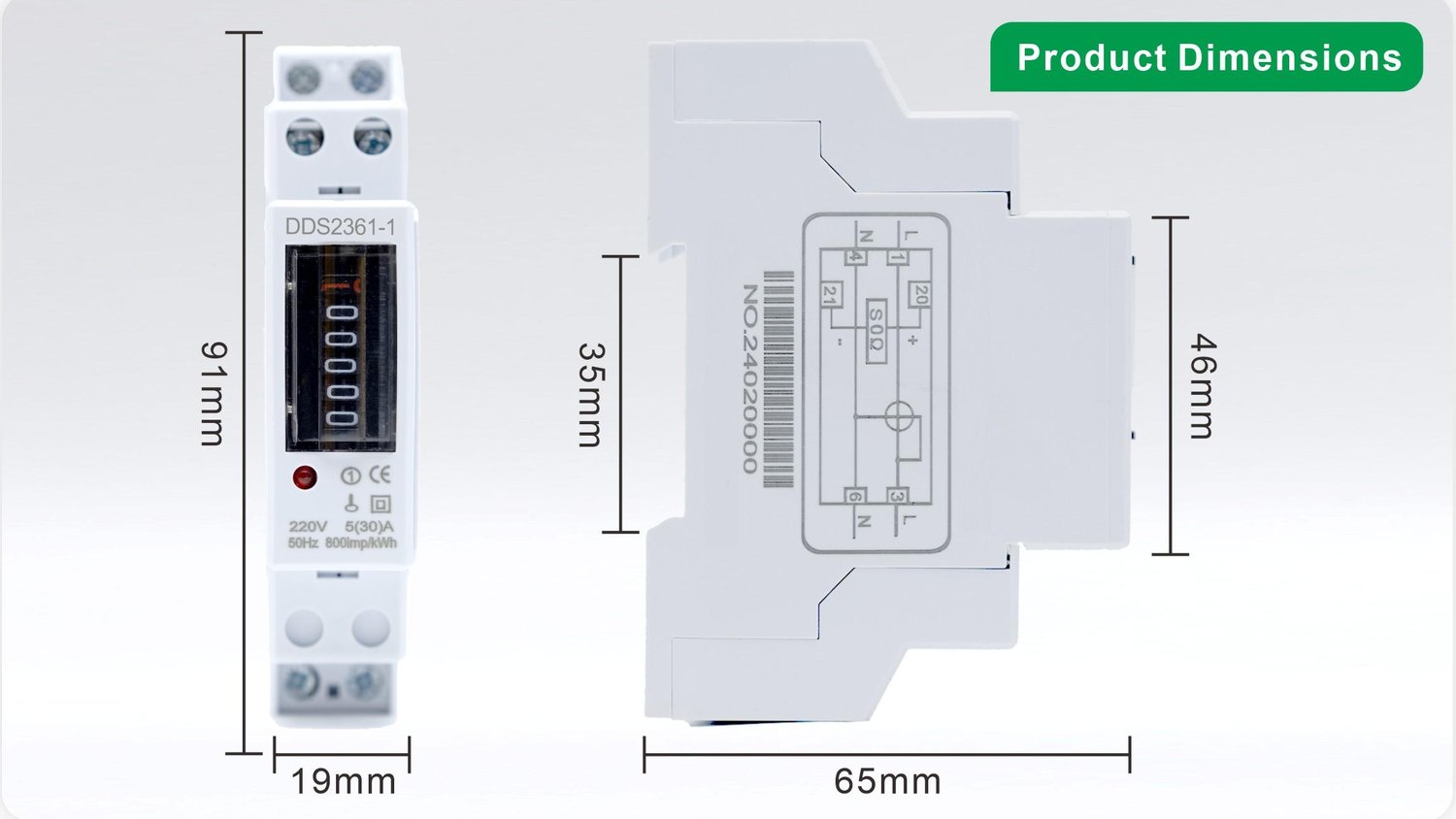

Dimensions
