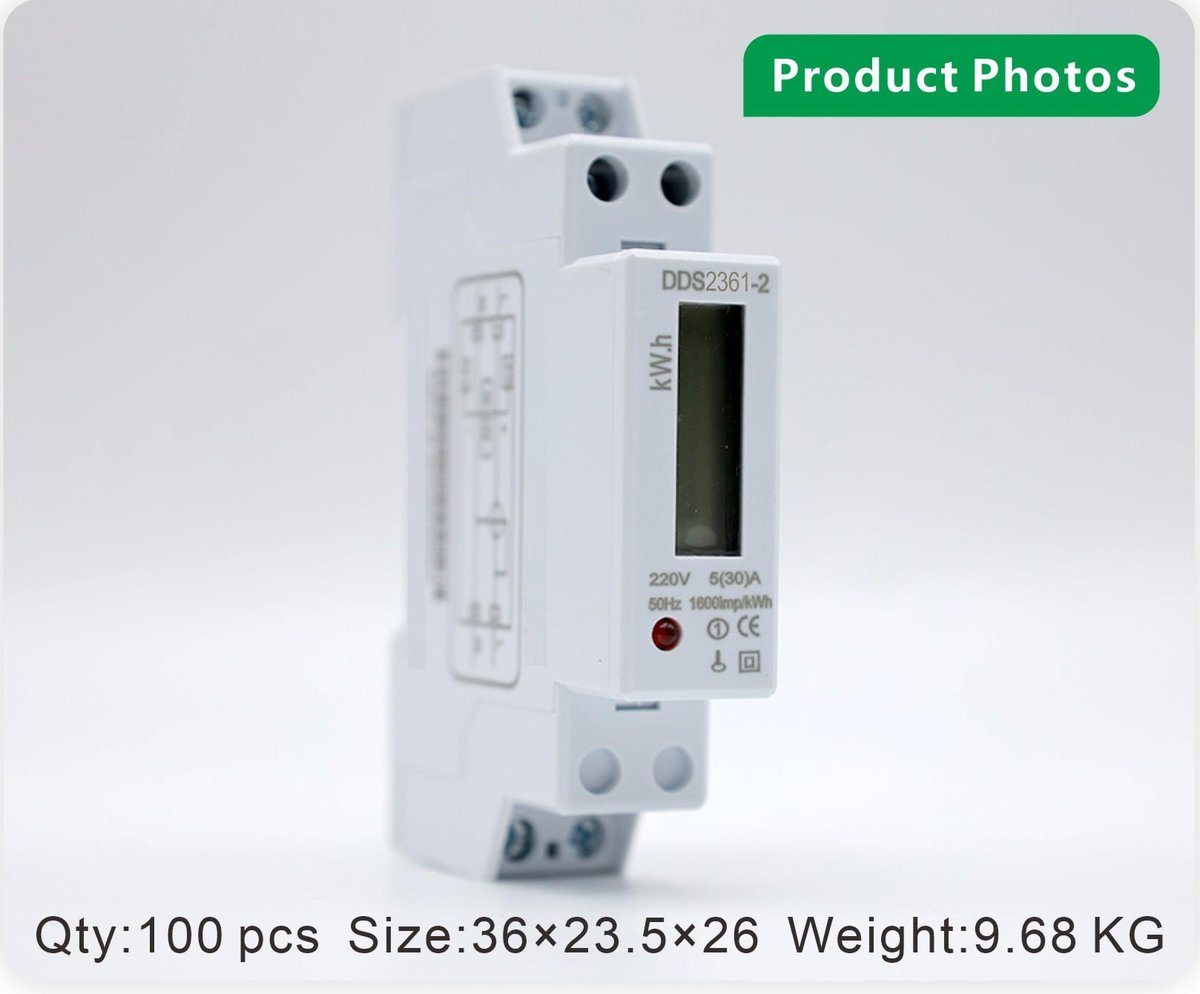

DDS2361-2
single-phase AC DIN-rail electricity meter / 1P
Description
The DDS2361-2 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: Single metering, LCD display. The housing measures 19×65×91 mm and weighs 0.08kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Model | DDS2361-2 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 19×65×91 mm |
| Weight | 0.08kg |
| Display Mode | LCD |
| Features | Single metering, LCD display |
| Packing | 100pcs/ctn, 9.68kg, 36×23.5×26 |

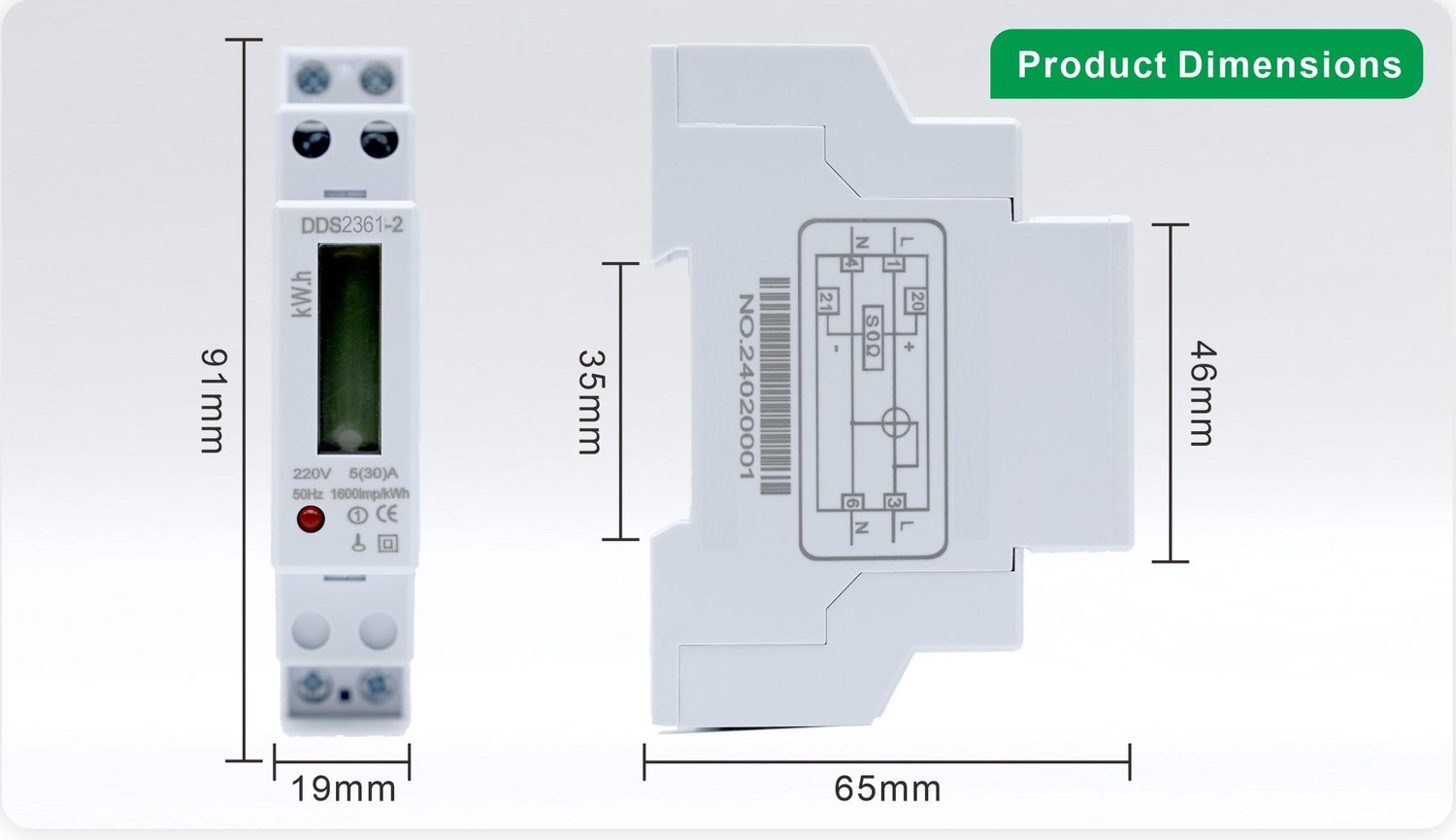

Dimensions
