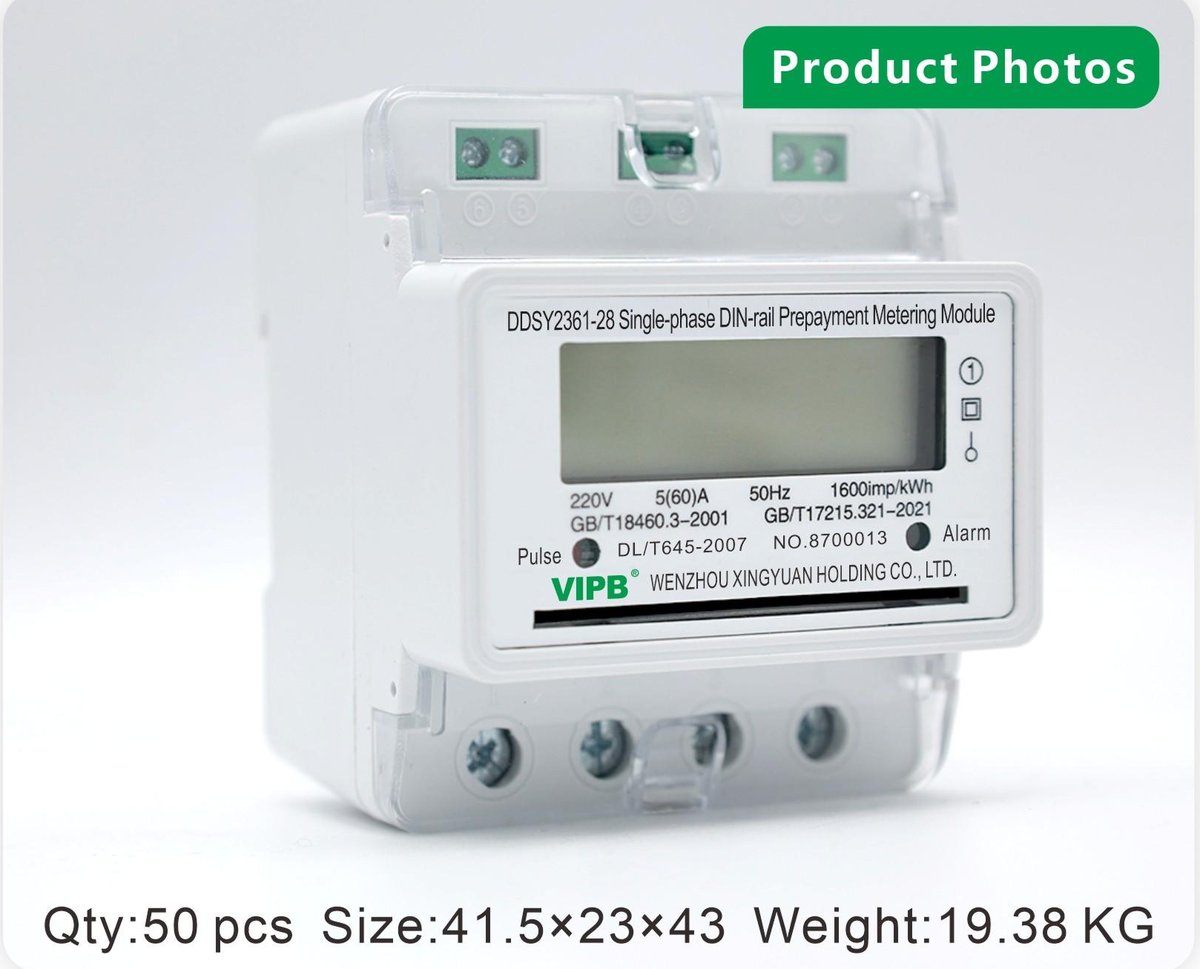

DDSY2361-28
single-phase AC DIN-rail electricity meter / 4P
Description
The DDSY2361-28 is a single-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 4P Single-phase Card Type, 485, Protocol: DL/T645-2007. The housing measures 93mm×77mm×76mm and weighs ≈0.32kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-28 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Product Dimensions | 93mm×77mm×76mm |
| Weight | ≈0.32kg |
| Display Mode | LCD |
| Product Features | 4P Single-phase Card Type, 485, Protocol: DL/T645-2007 |
| Packing | 50pcs/ctn, 19.38kg, 41.5×23×43 |

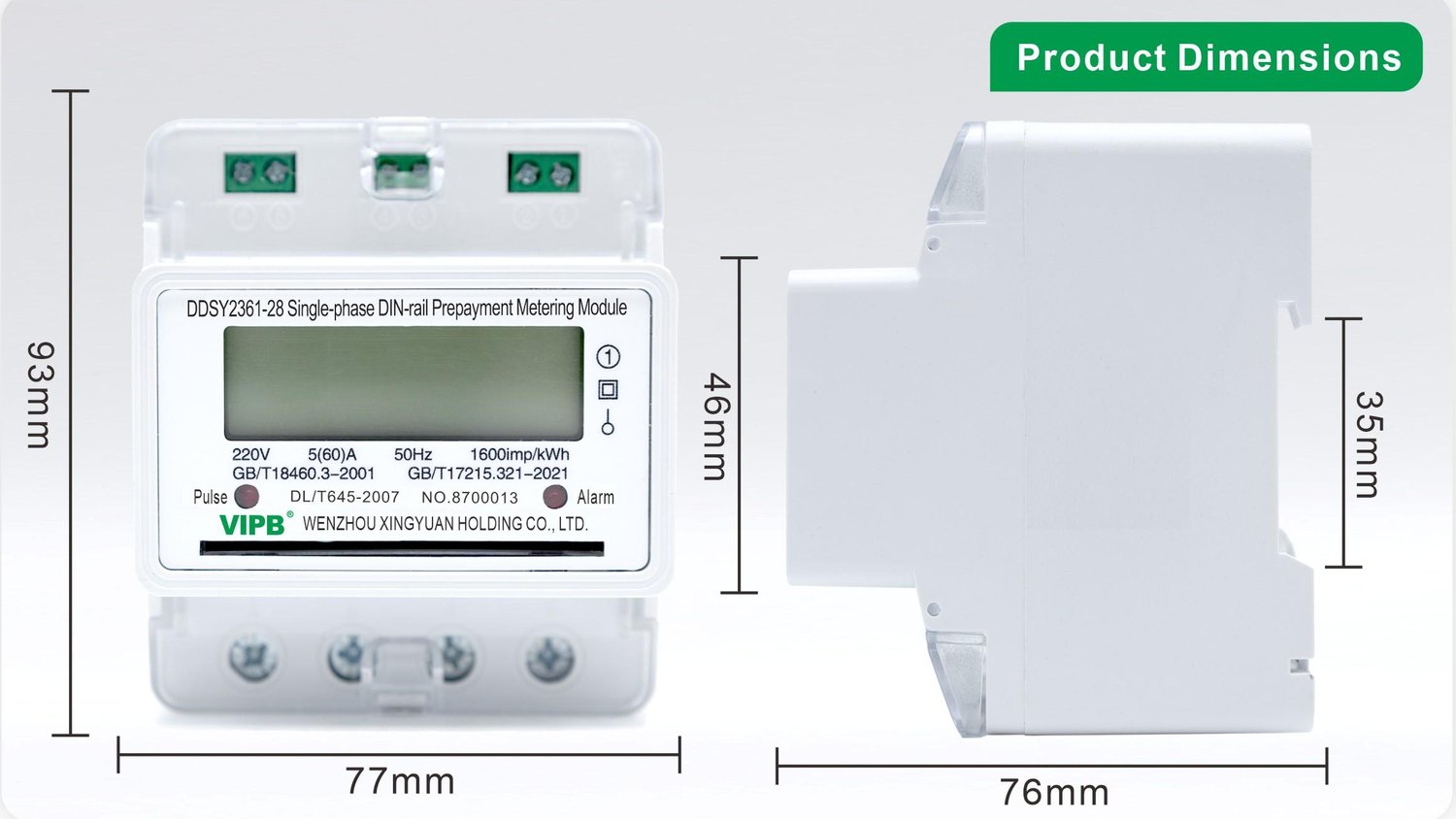

Dimensions
