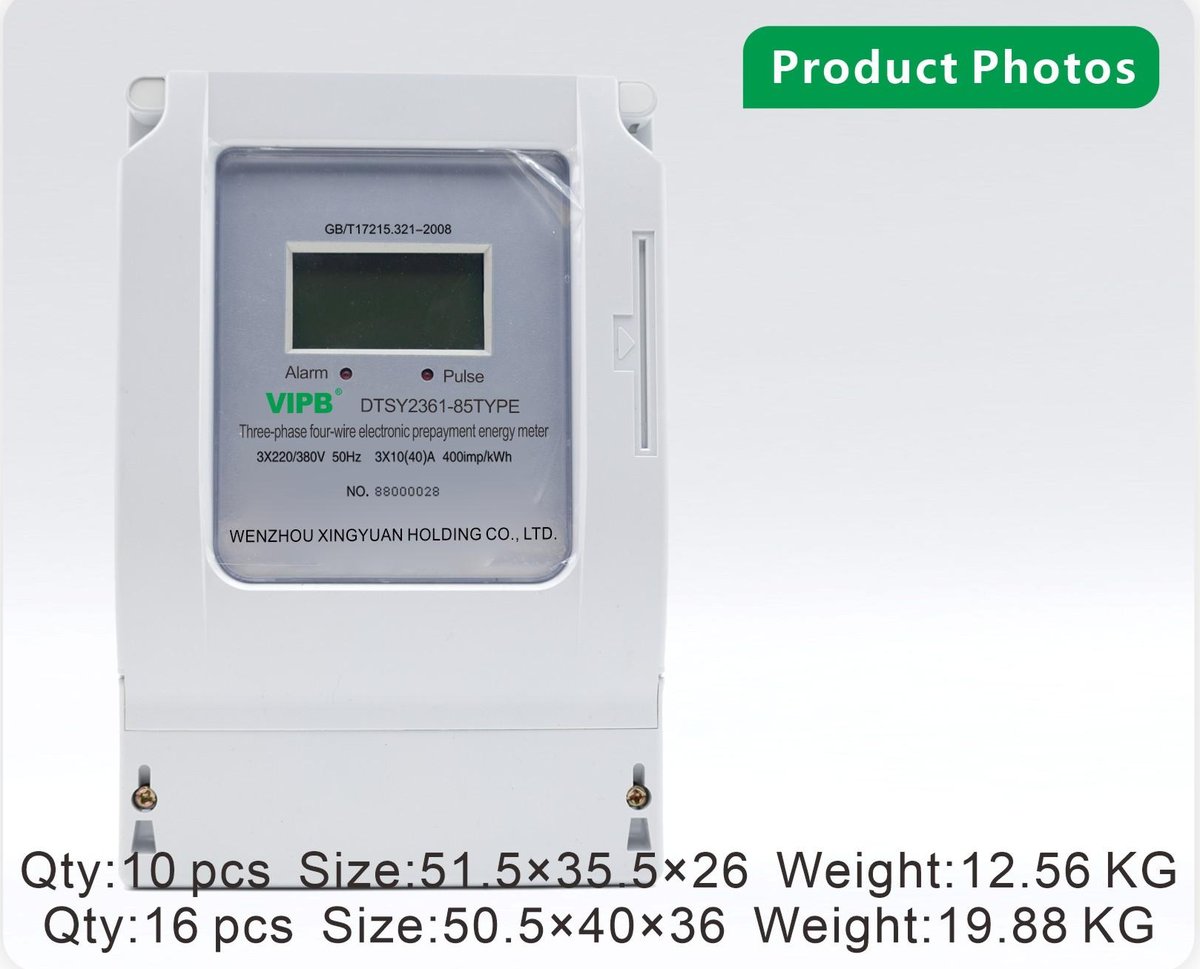

DTSY2361-85
three-phase AC wall-mounted electricity meter
Description
The DTSY2361-85 is a three-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted three-phase card-type. The housing measures 69mm×145mm×215mm and weighs ≈1.16kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DTSY2361-85 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 69mm×145mm×215mm |
| Weight | ≈1.16kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted three-phase card-type |
| Packing | 10pcs/ctn, 12.56kg, 51.5×35.5×26 |

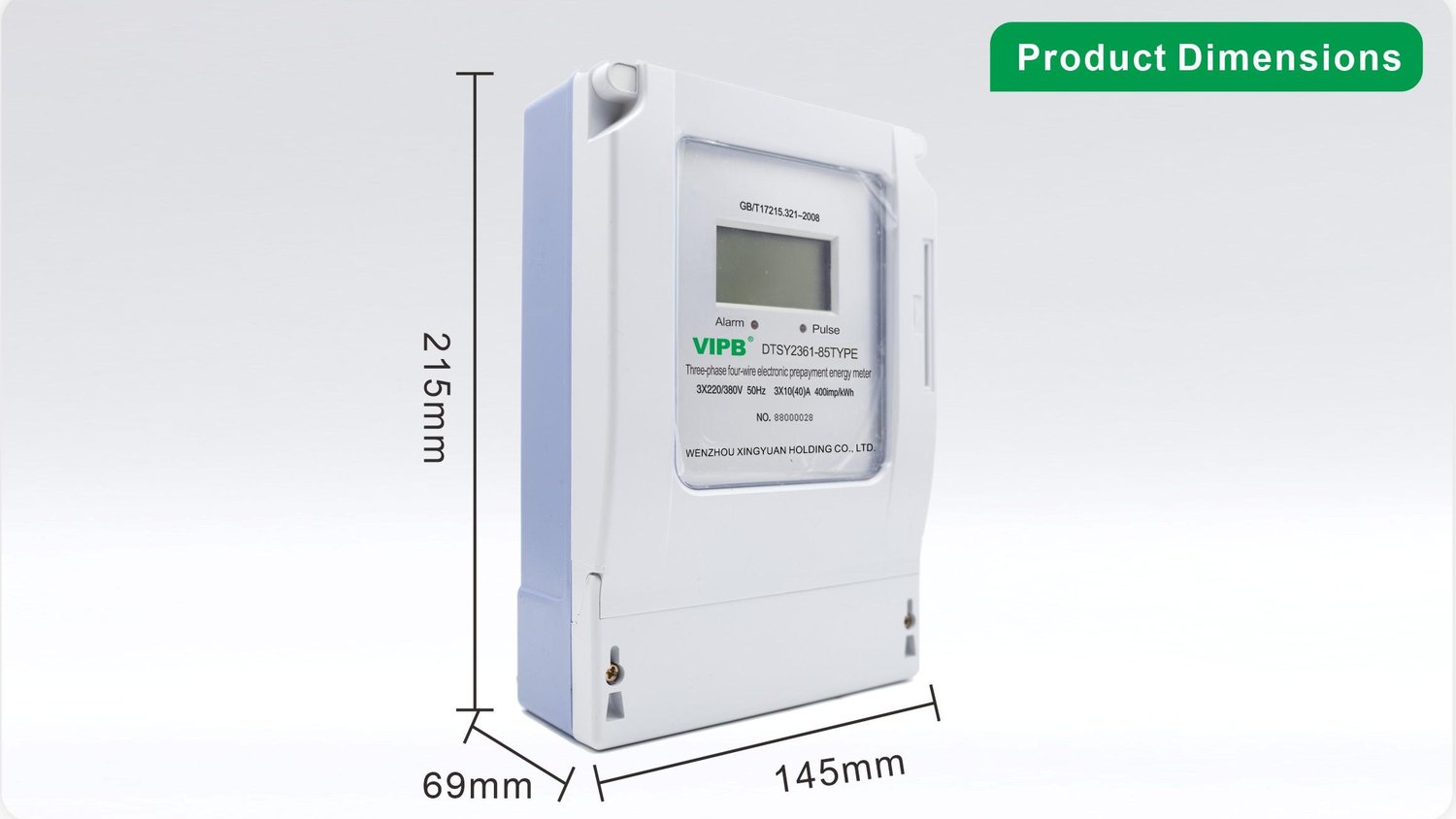

Dimensions
Related Models

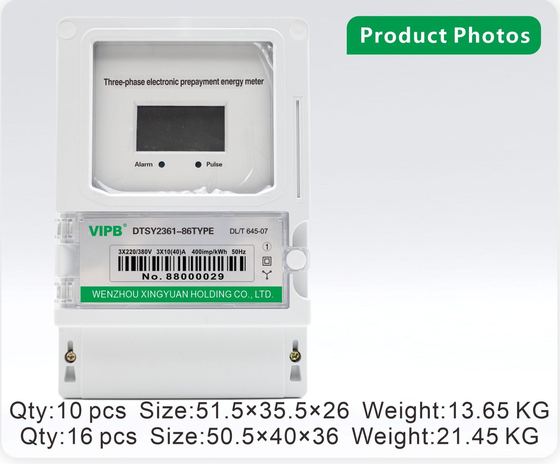

DTSY2361-86
three-phase AC wall-mounted electricity meter

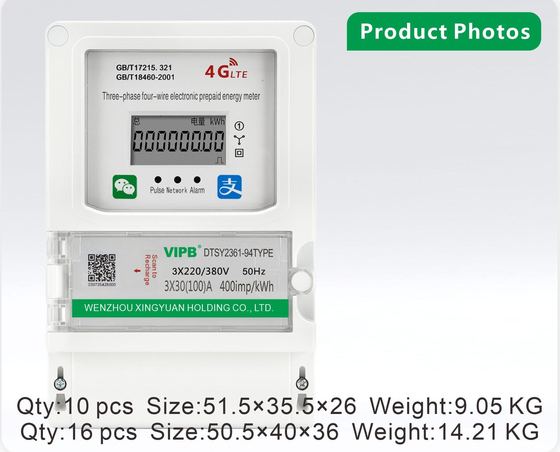

DTSY2361-94
three-phase AC wall-mounted electricity meter

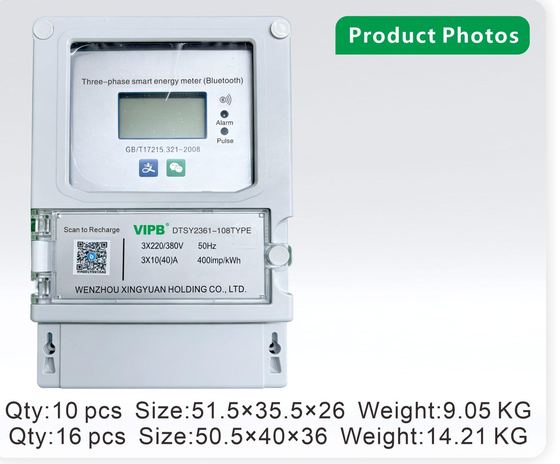

DTSY2361-108
