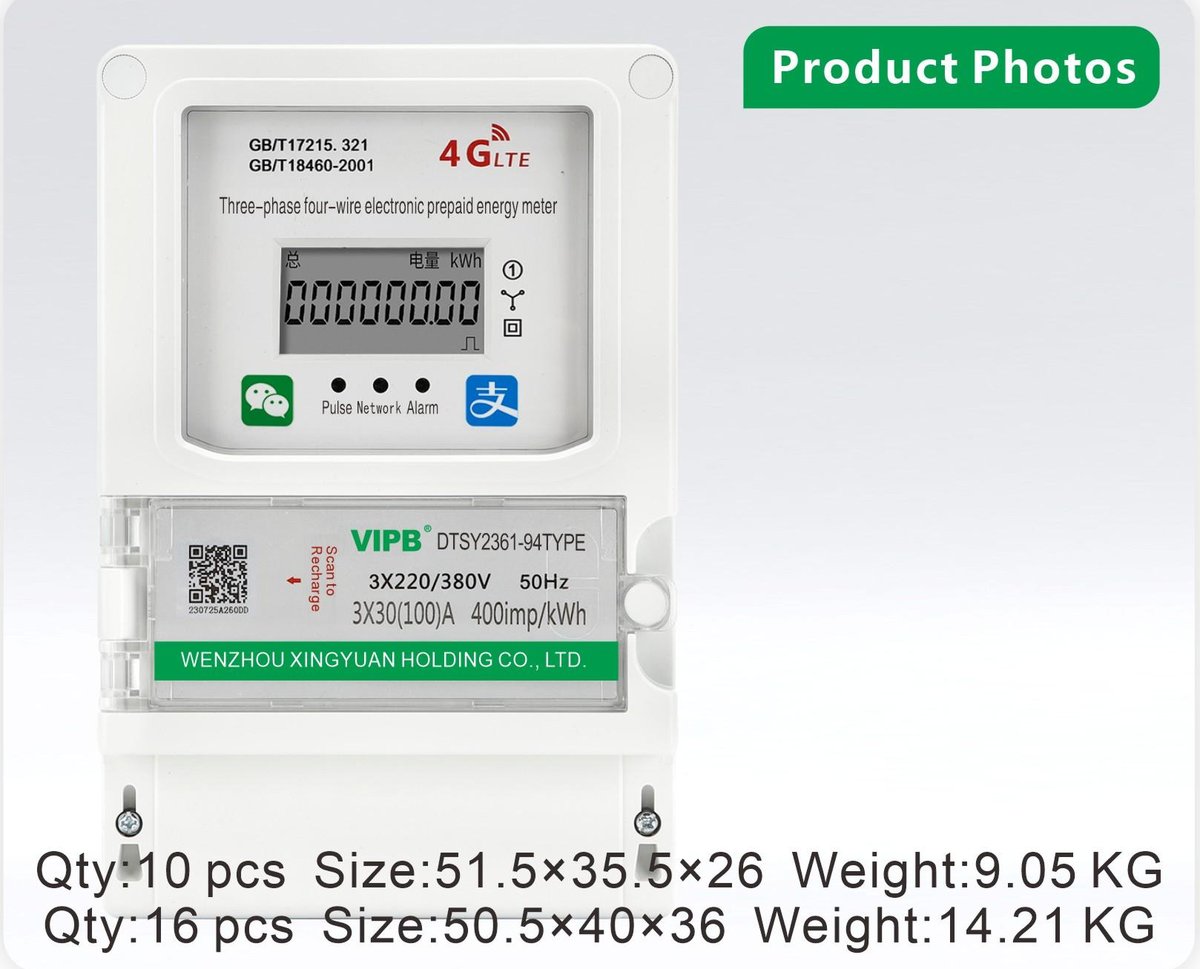

DTSY2361-94
three-phase AC wall-mounted electricity meter
Description
The DTSY2361-94 is a three-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1.
Product features: Three-phase 4G remote version. The housing measures 70.9mm×145.4mm×217.5mm and weighs ≈0.82kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Model | DTSY2361-94 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 70.9mm×145.4mm×217.5mm |
| Weight | ≈0.82kg |
| Wiring Mode | Three-phase four-wire |
| Product Features | Three-phase 4G remote version |
| Packing | 10pcs/ctn, 9.05kg, 51.5×35.5×26 |

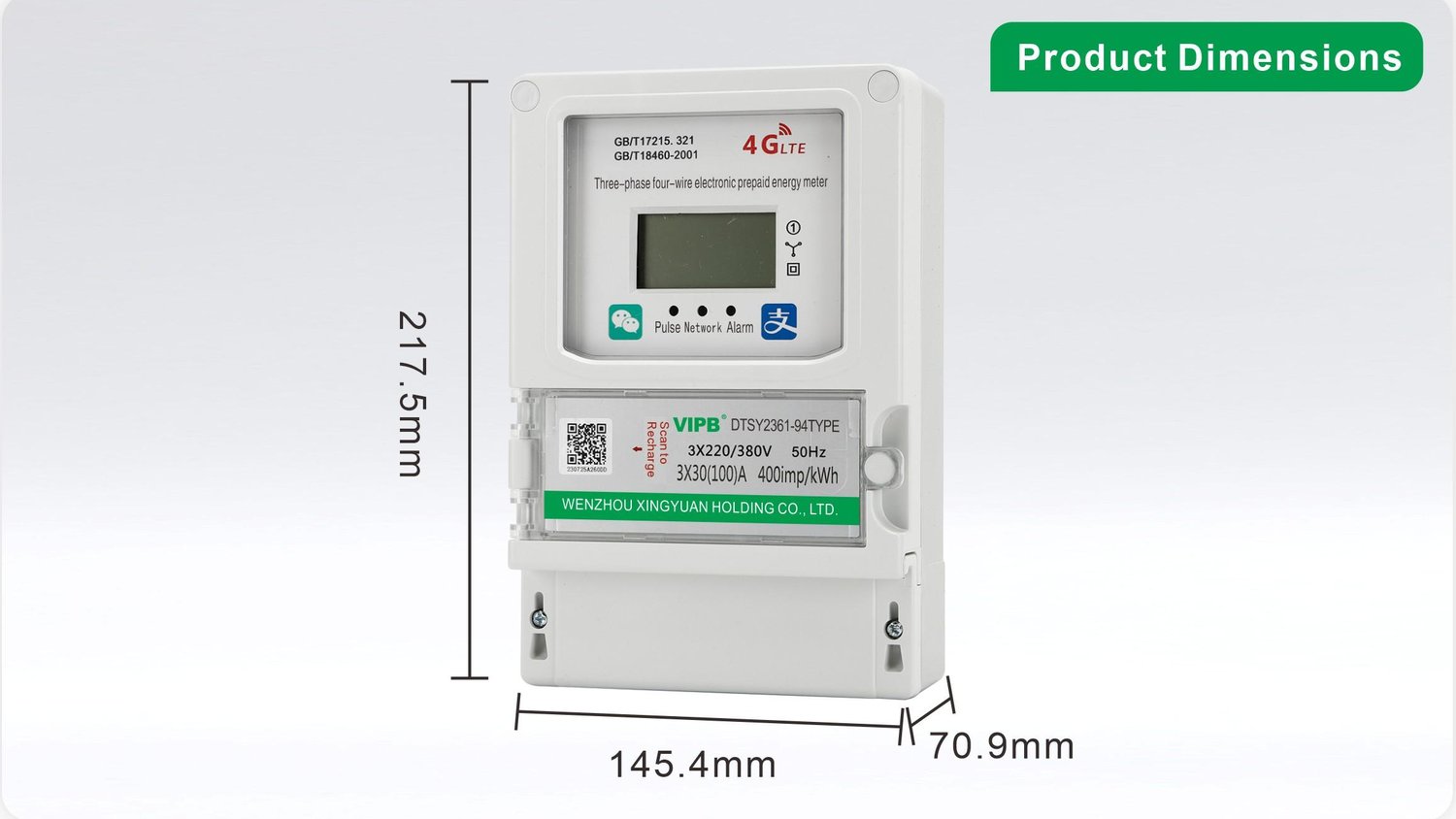

Dimensions
