DTSY2361-86
three-phase AC wall-mounted electricity meter
Description
The DTSY2361-86 is a three-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted three-phase card-type, RS485 communication, prepayment. The housing measures 70.9mm×145.4mm×217.5mm and weighs ≈0.82kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DTSY2361-86 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 70.9mm×145.4mm×217.5mm |
| Weight | ≈0.82kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted three-phase card-type, RS485 communication, prepayment |
| Packing | 10pcs/ctn, 13.65kg, 51.5×35.5×26 |

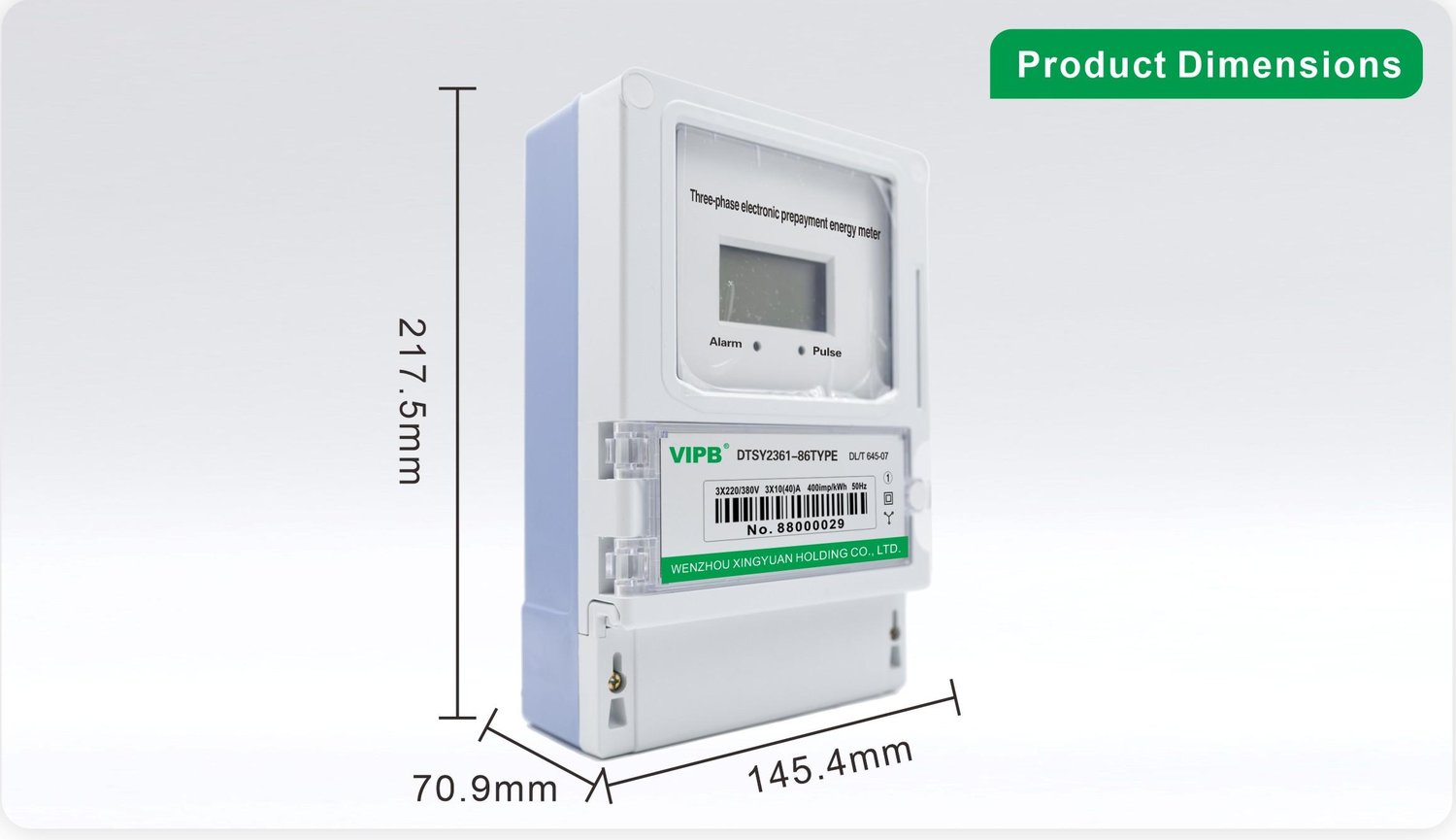

Dimensions
Related Models
DTSY2361-94
three-phase AC wall-mounted electricity meter
DTSY2361-108
three-phase AC wall-mounted electricity meter

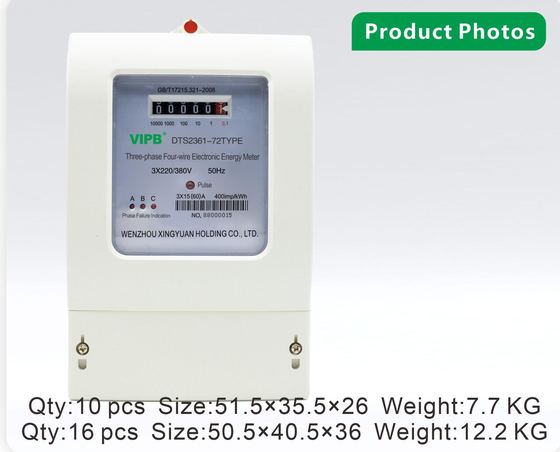

DTS2361-72
