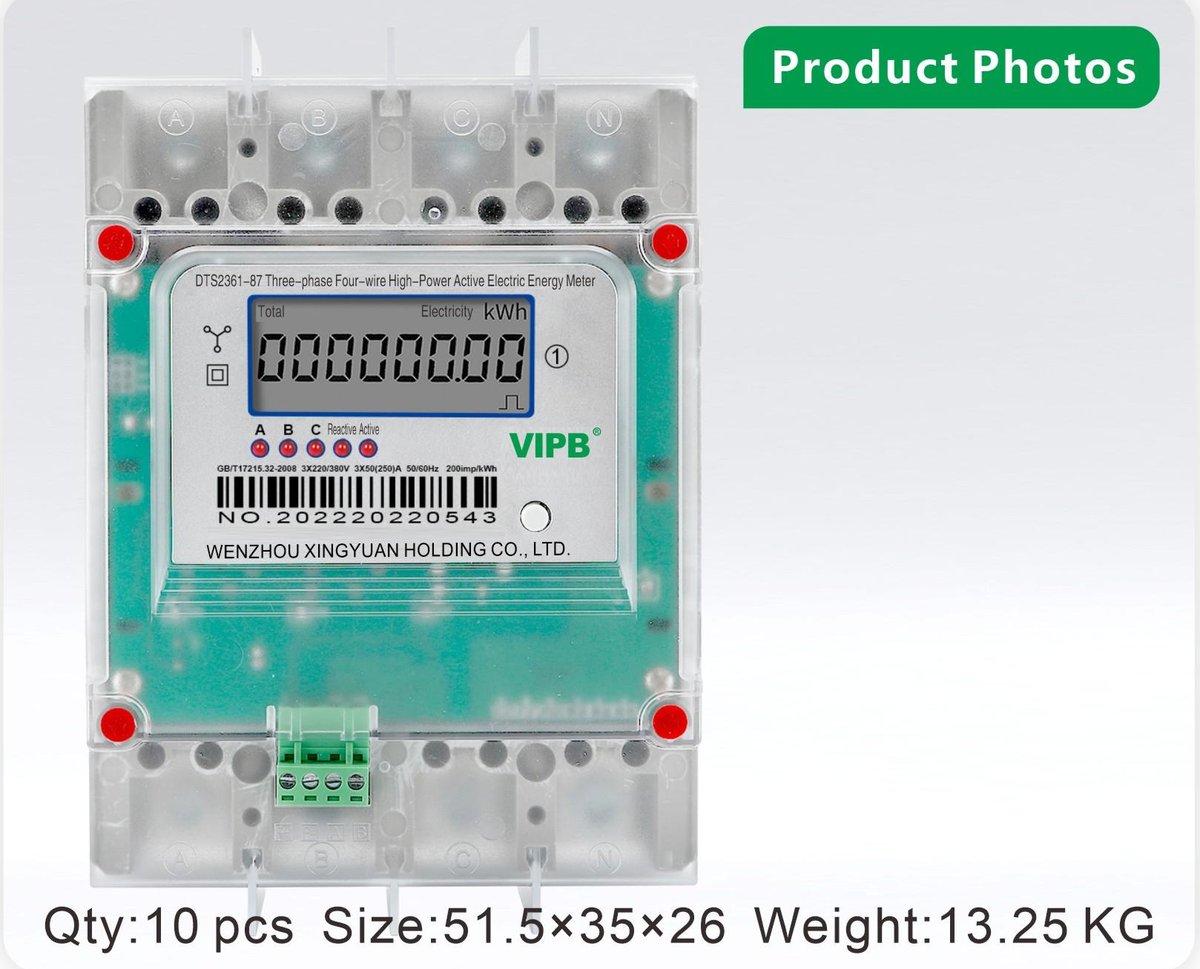

DTS2361-87
three-phase AC wall-mounted electricity meter
Description
The DTS2361-87 is a three-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1.
Product features: Three-phase high-power. The housing measures 67mm×136mm×177mm and weighs ≈0.82kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Model | DTS2361-87 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 67mm×136mm×177mm |
| Weight | ≈0.82kg |
| Wiring Mode | Pulse RS485 Communication |
| Features | Three-phase high-power |
| Packing | 10pcs/ctn, 13.25kg, 51.5×35×26 |

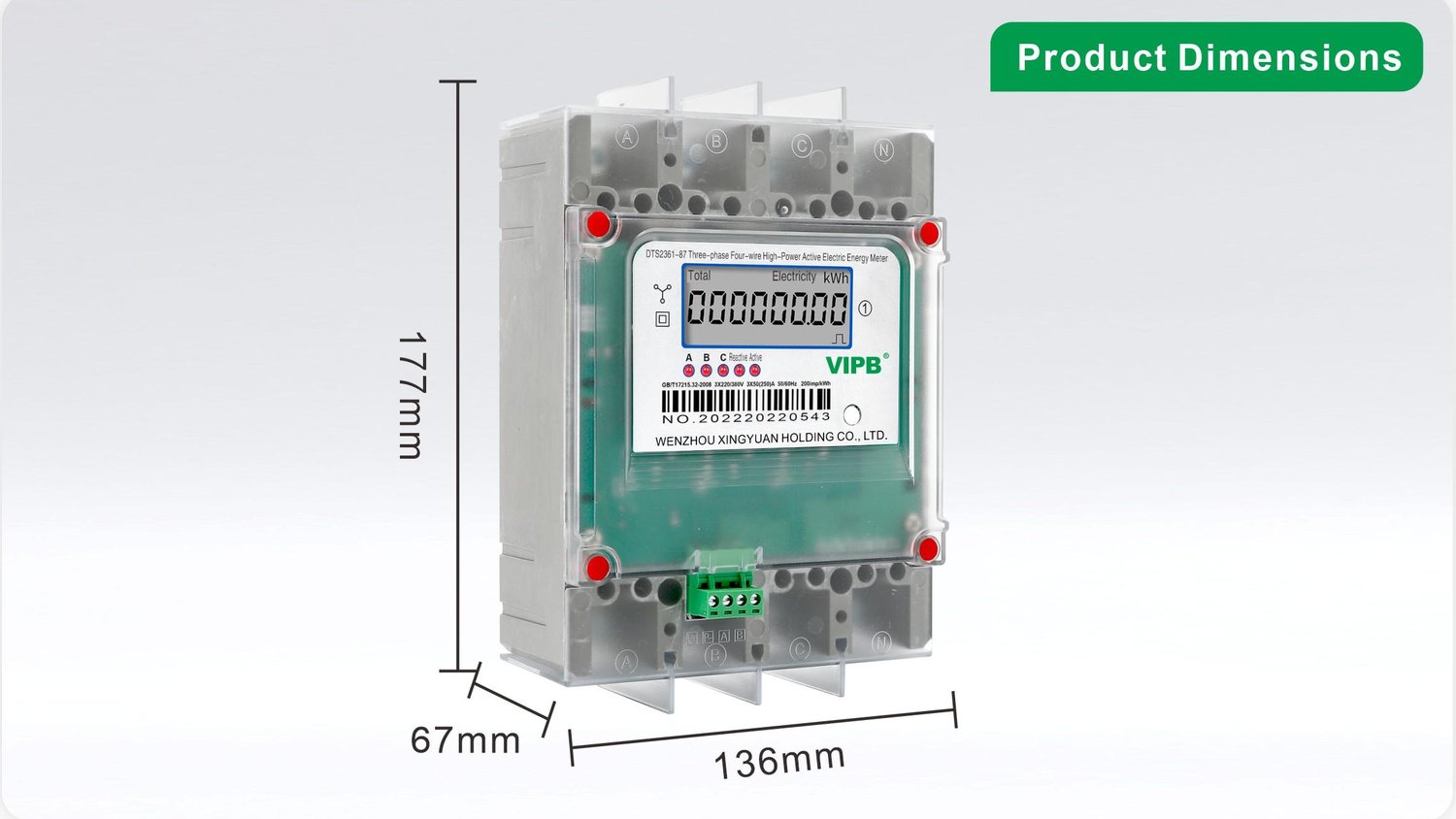

Dimensions
Related Models

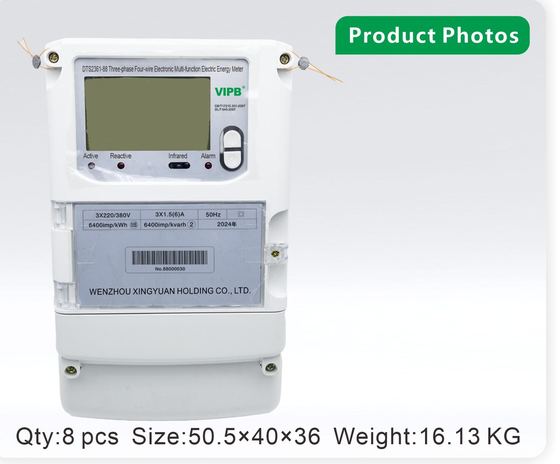

DTS2361-88
three-phase AC wall-mounted electricity meter

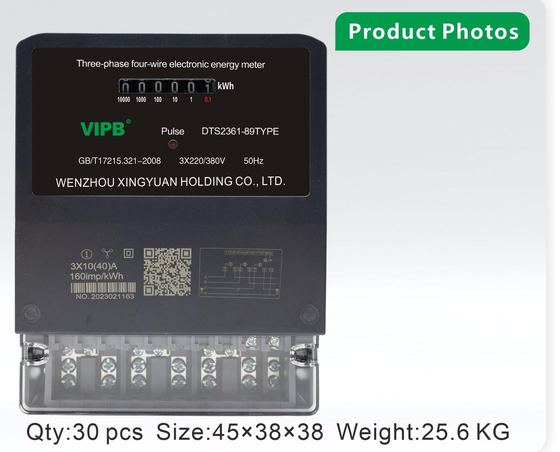

DTS2361-89
three-phase AC wall-mounted electricity meter

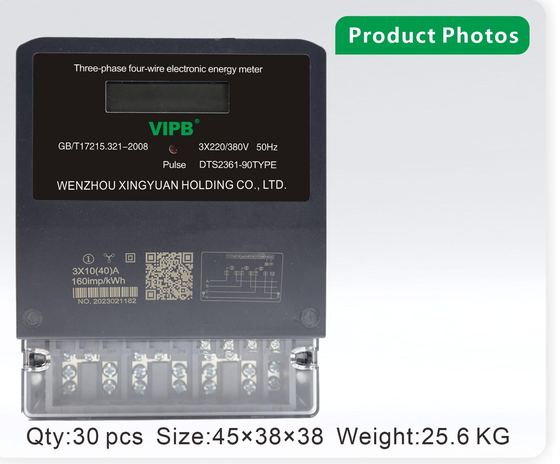

DTS2361-90
