DTS2361-90
three-phase AC wall-mounted electricity meter
Description
The DTS2361-90 is a three-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted three-phase Kunlun LCD meter. The housing measures 67mm×138mm×172mm and weighs ≈0.66kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Model | DTS2361-90 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 67mm×138mm×172mm |
| Weight | ≈0.66kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted three-phase Kunlun LCD meter |
| Packing | 30pcs/ctn, 25.6kg, 45×38×38 |

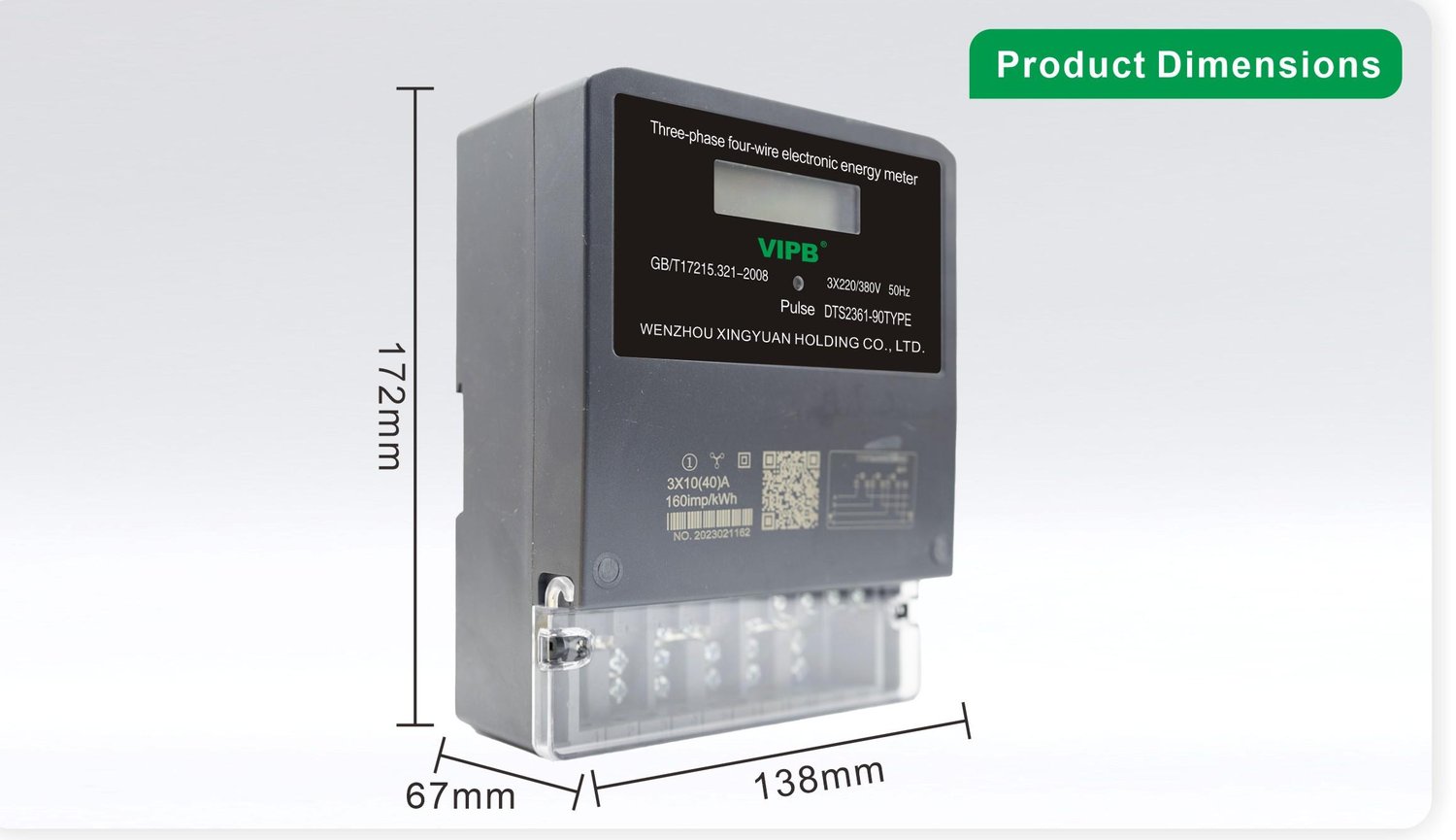

Dimensions
Related Models
DDSH2361-KYT-24D
multi-user centralized smart electricity meter
DDSH2361-KYT-36D
multi-user centralized smart electricity meter

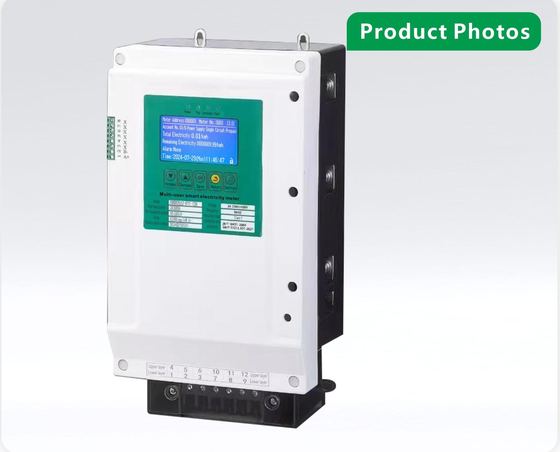

DDSH2361-KYTW-12D
