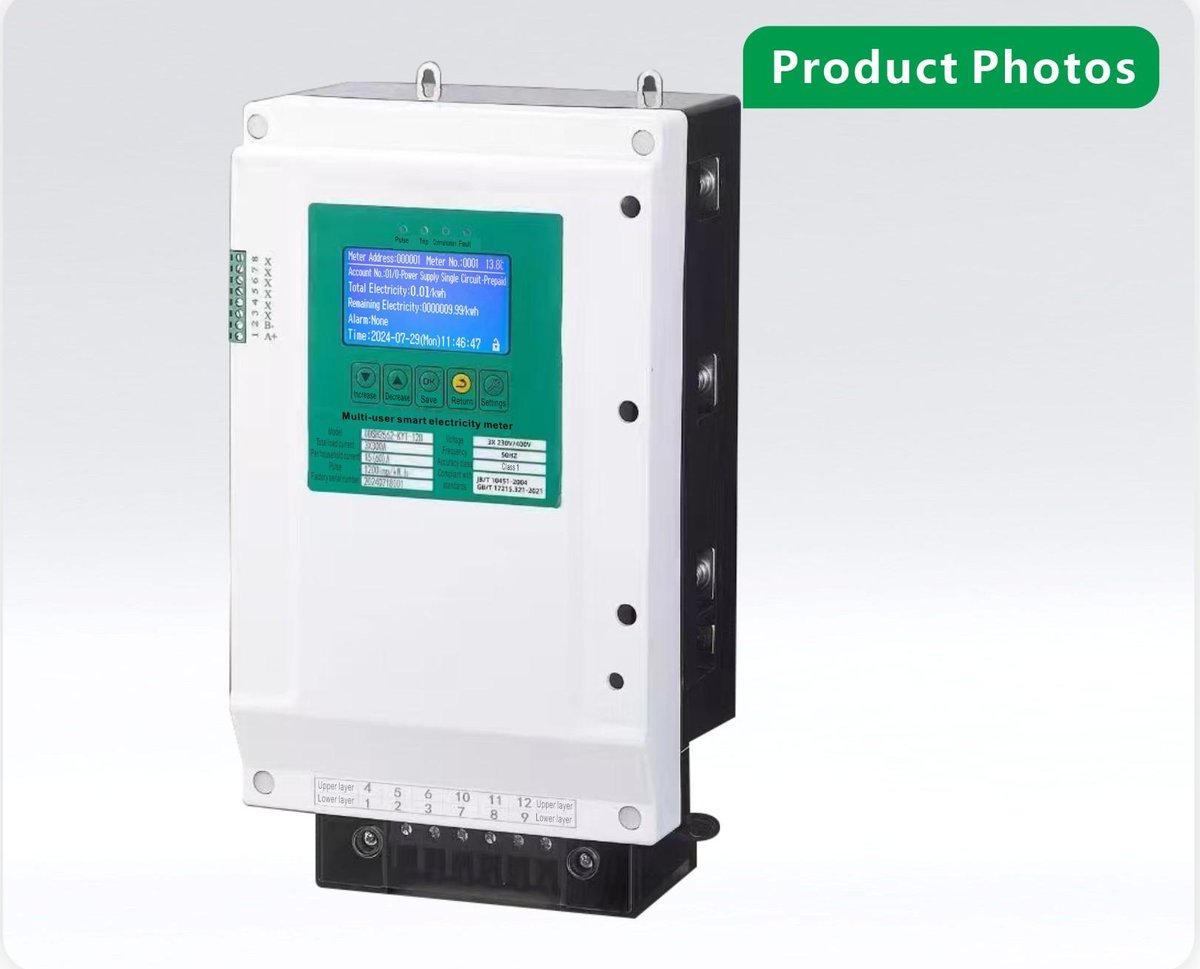

DDSH2361-KYTW-12D
multi-user centralized smart electricity meter
Description
The DDSH2361-KYTW-12D is a multi-user centralized smart electricity meter from VIPB (Wenzhou Xingyuan), centralizing metering for multiple users in one unit. Key ratings: a rated voltage of AC220/380V, a rated current of 10(40)A. Communication: DL/T645-2007 Standard Protocol Modbus-RTU Communication Protocol.
The housing measures 200*380*140mm. Typical applications include apartment buildings, student dormitories, office buildings and other multi-tenant properties where centralized metering is required.
Technical Specifications
| Model & Specification | DDSH2361-KYTW-12D |
| Operating Voltage | AC220/380V |
| Nominal Current | 10(40)A |
| Communication Mode | DL/T645-2007 Standard Protocol Modbus-RTU Communication Protocol |
| Outline Dimensions | 200*380*140mm |

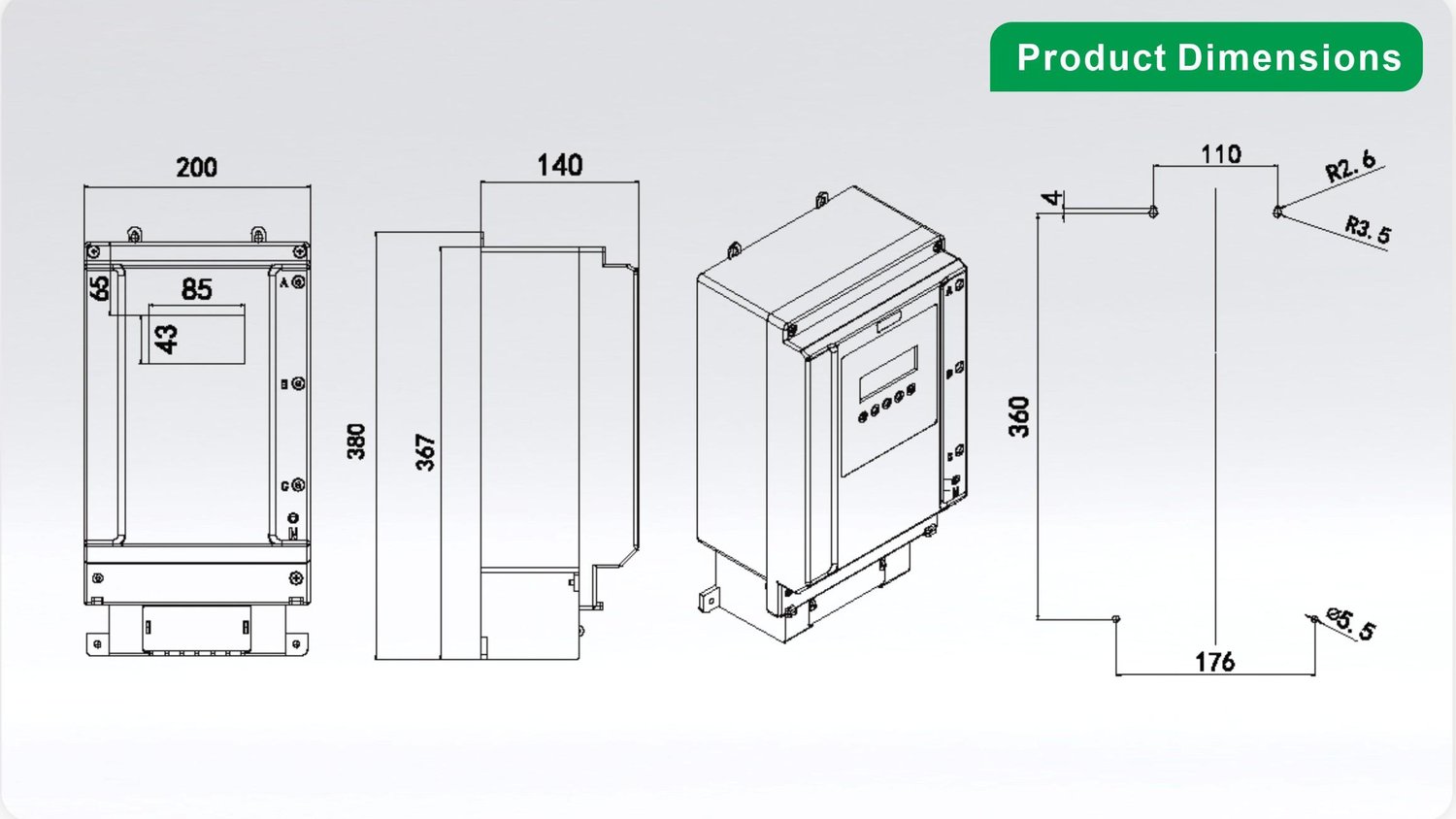

Dimensions
