DTS2361-82
three-phase AC wall-mounted electricity meter
Description
The DTS2361-82 is a three-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Three-phase multi-function switch on/off prepayment. The housing measures 70.9mm×145.4mm×217.5mm and weighs ≈1.24kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DTS2361-82 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 70.9mm×145.4mm×217.5mm |
| Weight | ≈1.24kg |
| Interface Mode | Pulse |
| Product Features | Three-phase multi-function switch on/off prepayment |
| Packing | 10pcs/ctn, 12.96kg, 51.5×35.5×26 |

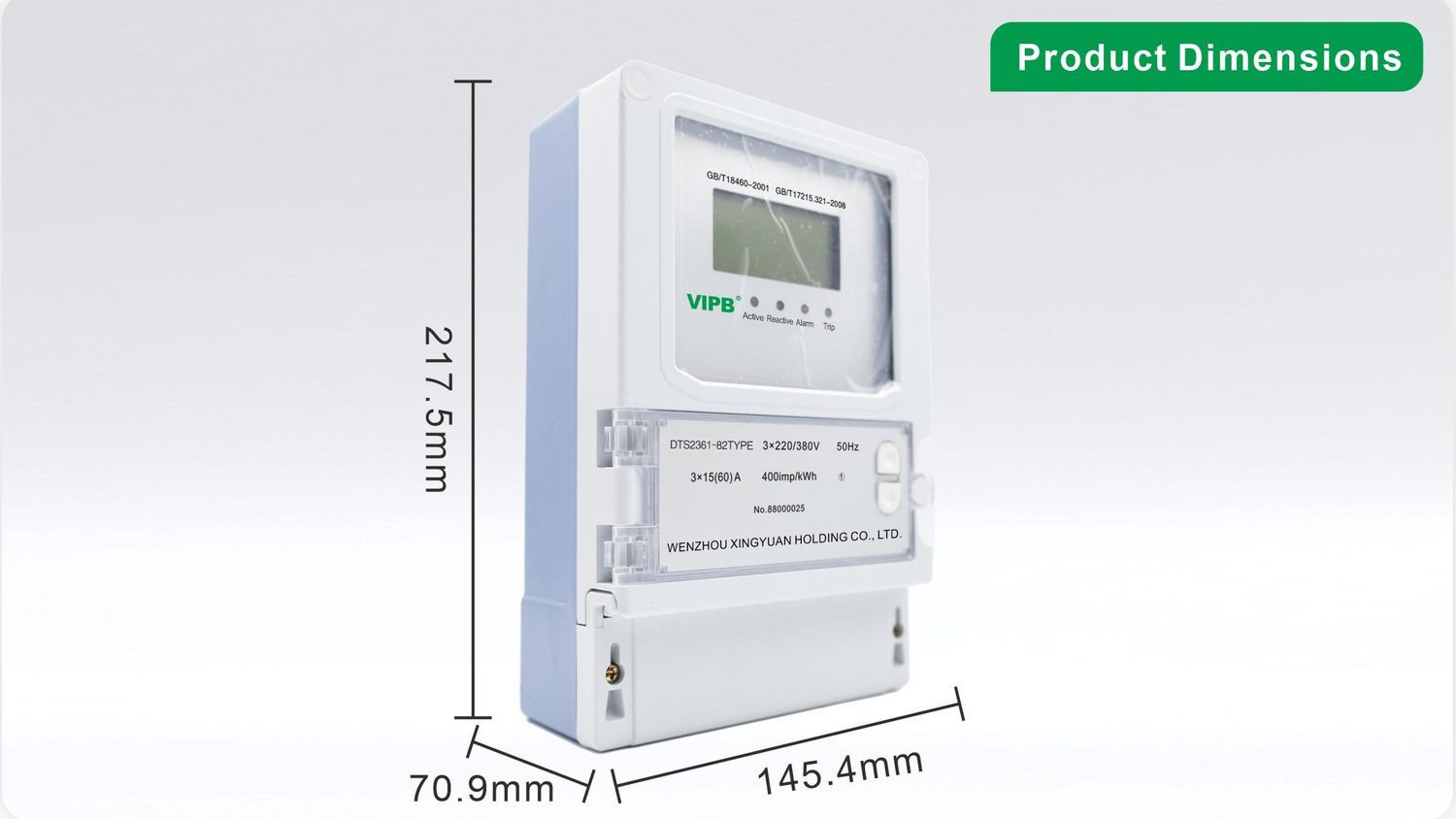

Dimensions
Related Models

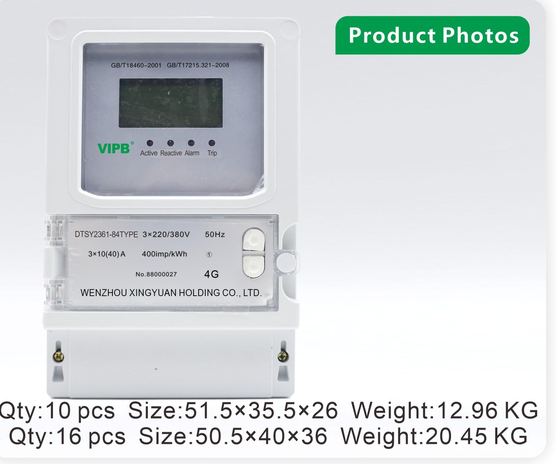

DTSY2361-84
