DTS2361-88
three-phase AC wall-mounted electricity meter
Description
The DTS2361-88 is a three-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 0.5S/0.2S (selectable for active and reactive energy). A pulse output supports remote meter reading.
Product features: Wall-mounted three-phase multi-function electric energy meter. The housing measures 88mm×175mm×288mm and weighs ≈1.96kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Model | DTS2361-88 |
| Voltage | 220V/380V |
| Accuracy | Class 0.5S/0.2S (selectable for active and reactive energy) |
| Rated Current | 3×30(100)A |
| Dimensions | 88mm×175mm×288mm |
| Weight | ≈1.96kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted three-phase multi-function electric energy meter |
| Packing | 8pcs/ctn, 16.13kg, 50.5×40×36 |

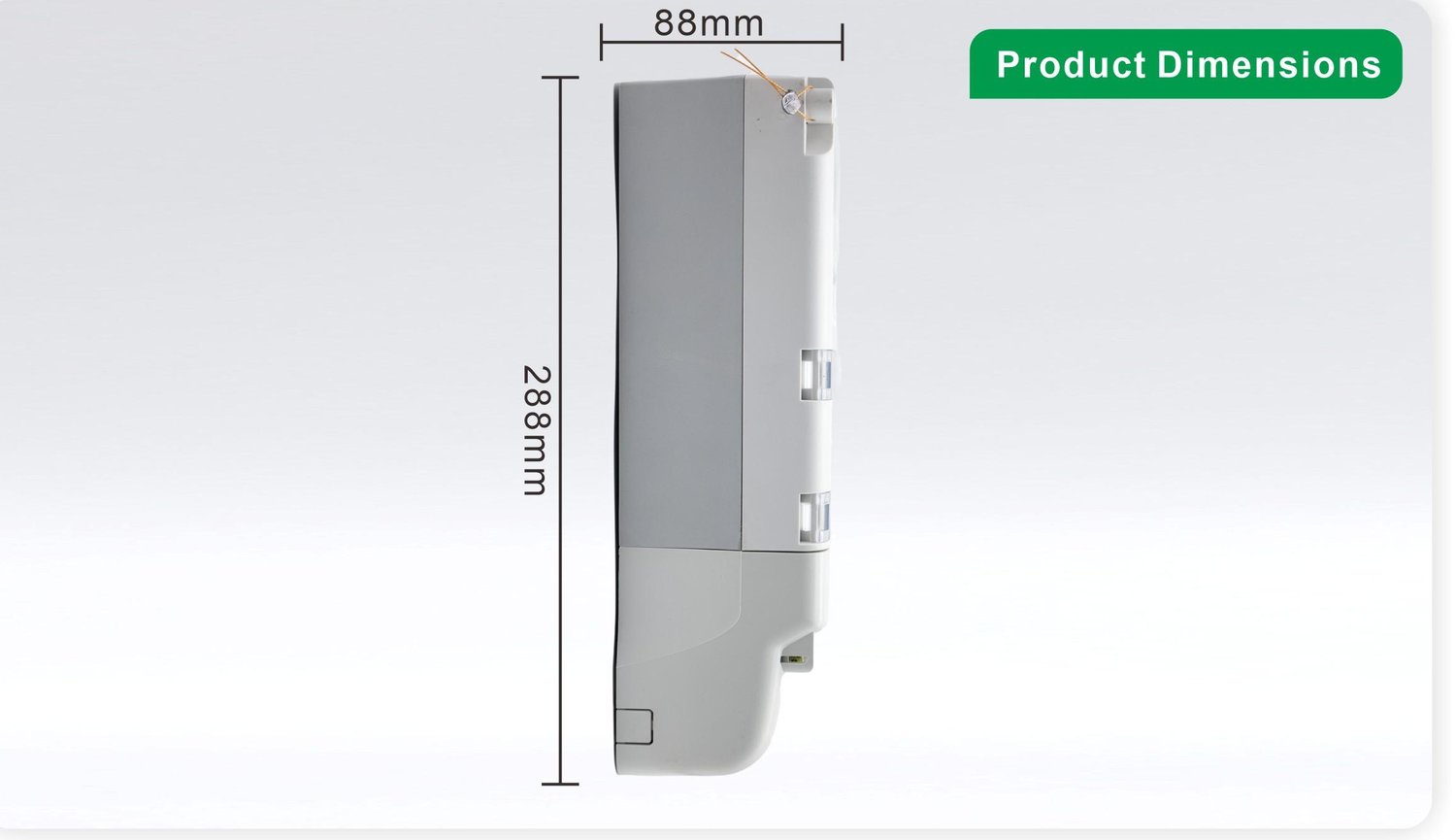

Dimensions
