DTS2361-81
three-phase AC wall-mounted electricity meter
Description
The DTS2361-81 is a three-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: Wall-mounted three-phase multi-tariff. The housing measures 70.9mm×145.4mm×217.5mm and weighs ≈1.10kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Product Model | DTS2361-81 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 70.9mm×145.4mm×217.5mm |
| Weight | ≈1.10kg |
| Display Mode | LCD |
| Product Features | Wall-mounted three-phase multi-tariff |
| Energy Pulse Indicator | Energy pulse indicator below the LCD |
| Packing | 10pcs/ctn, 13.25kg, 51.5×35.5×26 |

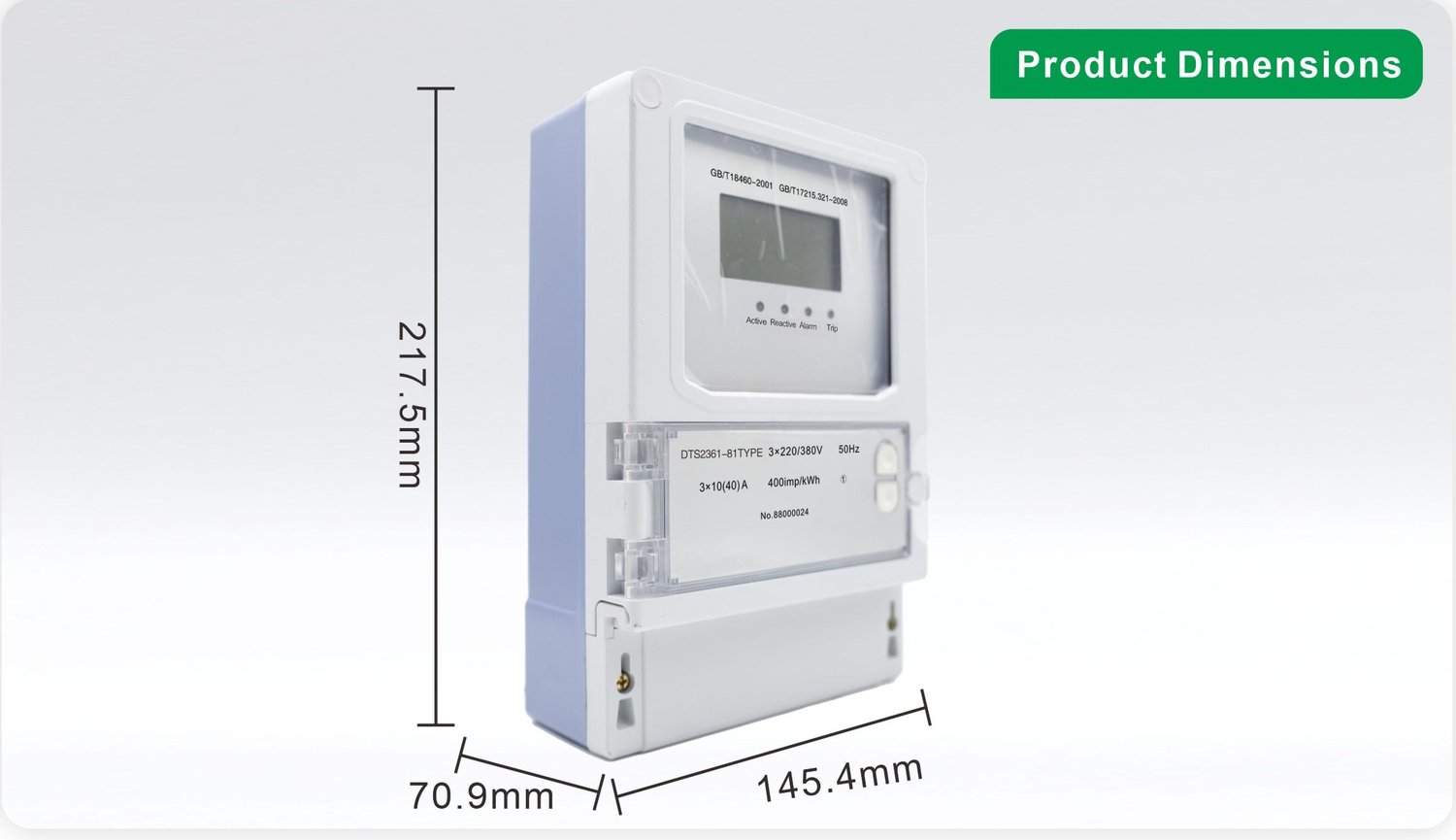

Dimensions
