DDSY2361-67
single-phase AC wall-mounted electricity meter
Description
The DDSY2361-67 is a single-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: Single-phase wall-mounted, built-in 4G, multi-function. Unit weight: ≈0.56kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-67 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Product Size | 112×60×160 mm |
| Weight | ≈0.56kg |
| Display Mode | LCD |
| Product Features | Single-phase wall-mounted, built-in 4G, multi-function |
| Energy Pulse Indicator | Energy pulse indicator below the LCD |
| Packing | 20pcs/ctn, 8.05kg, 45×29×39 |

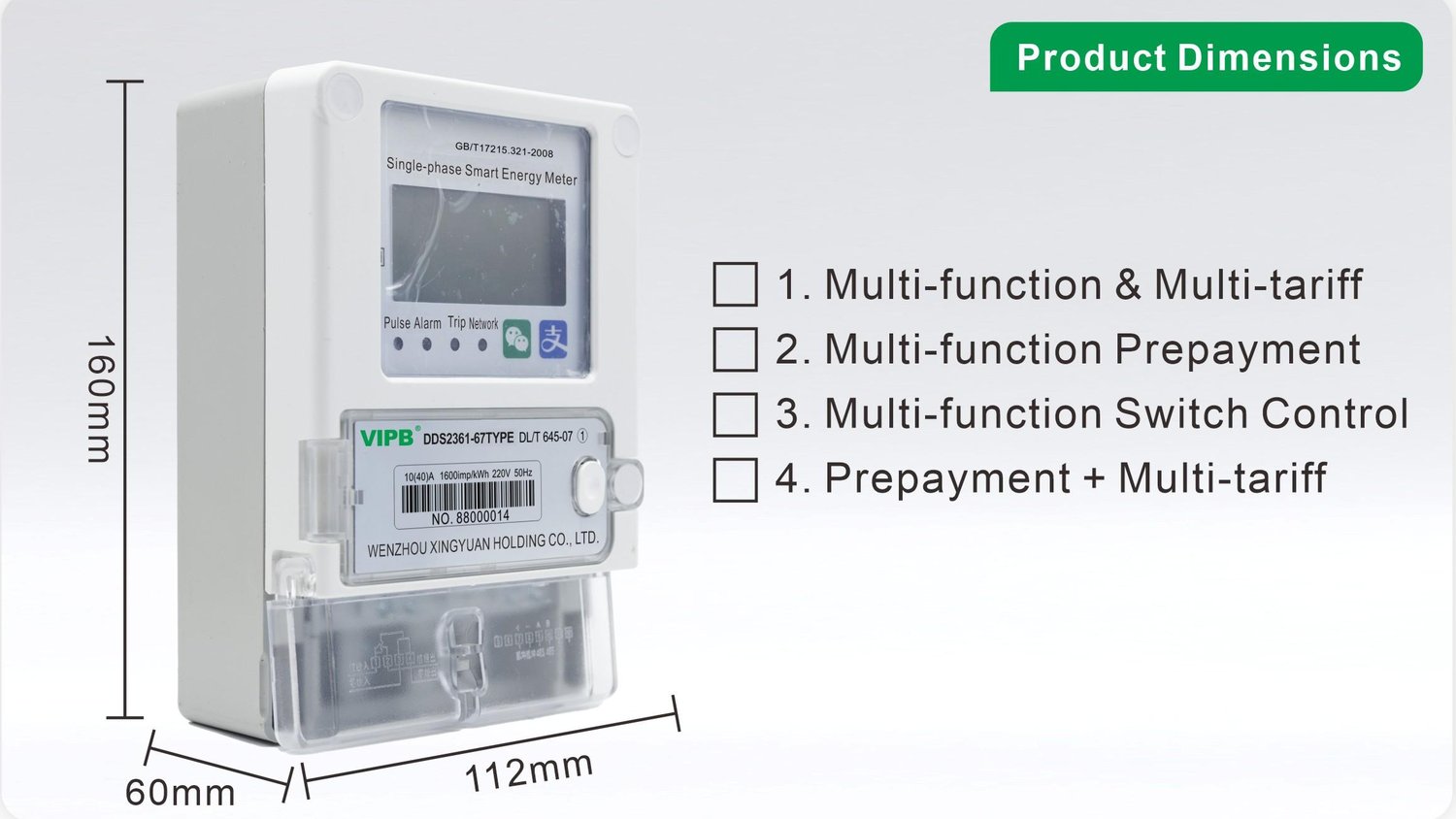

Dimensions
