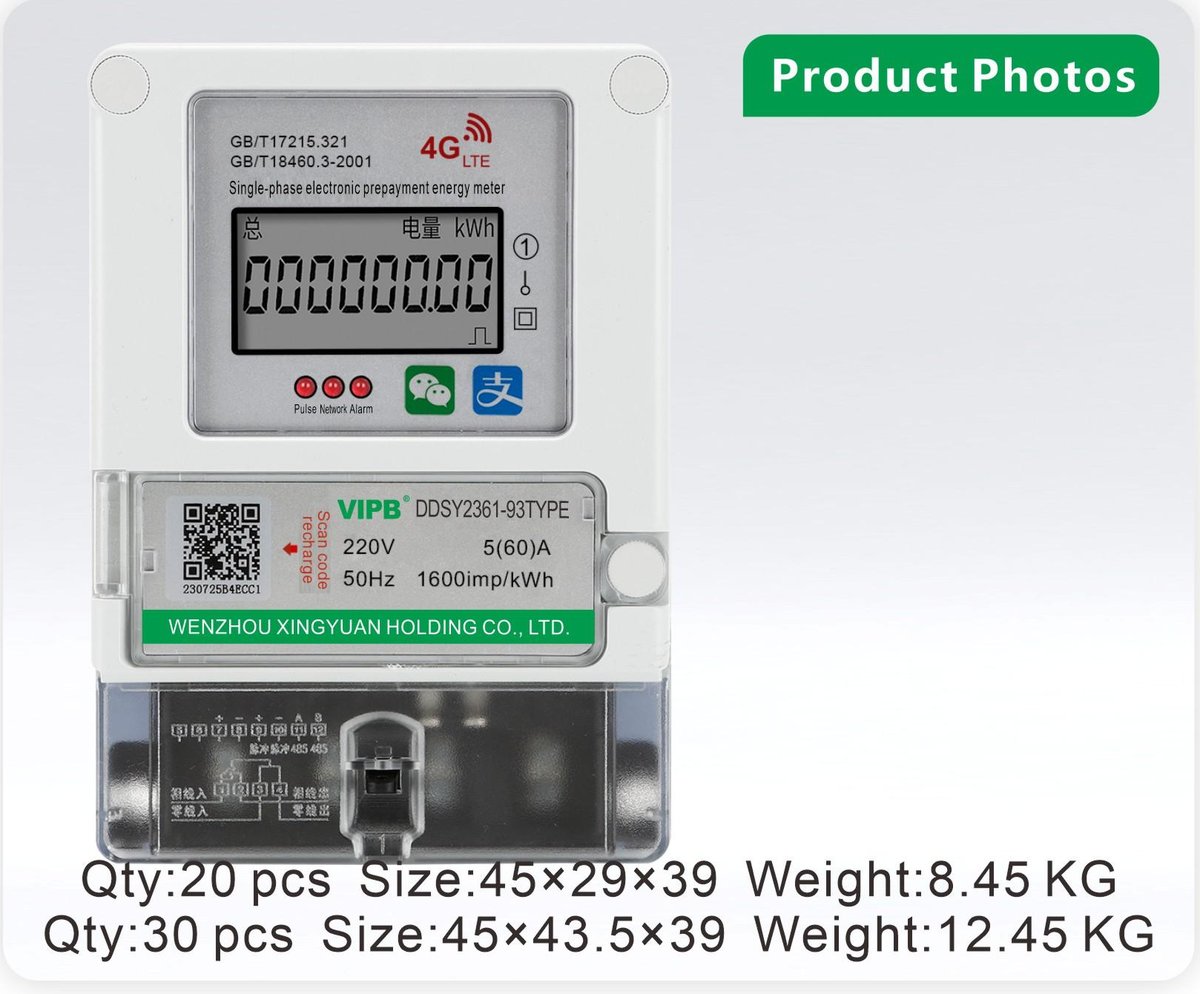

DDSY2361-93
single-phase AC wall-mounted electricity meter
Description
The DDSY2361-93 is a single-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1.
Product features: Single-phase, 4G remote type, prepayment. Unit weight: ≈0.56kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-93 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Product Size | 58mm×111mm×156mm |
| Weight | ≈0.56kg |
| Interface Mode | LCD |
| Product Features | Single-phase, 4G remote type, prepayment |
| Packing | 20pcs/ctn, 8.45kg, 45×29×39 |

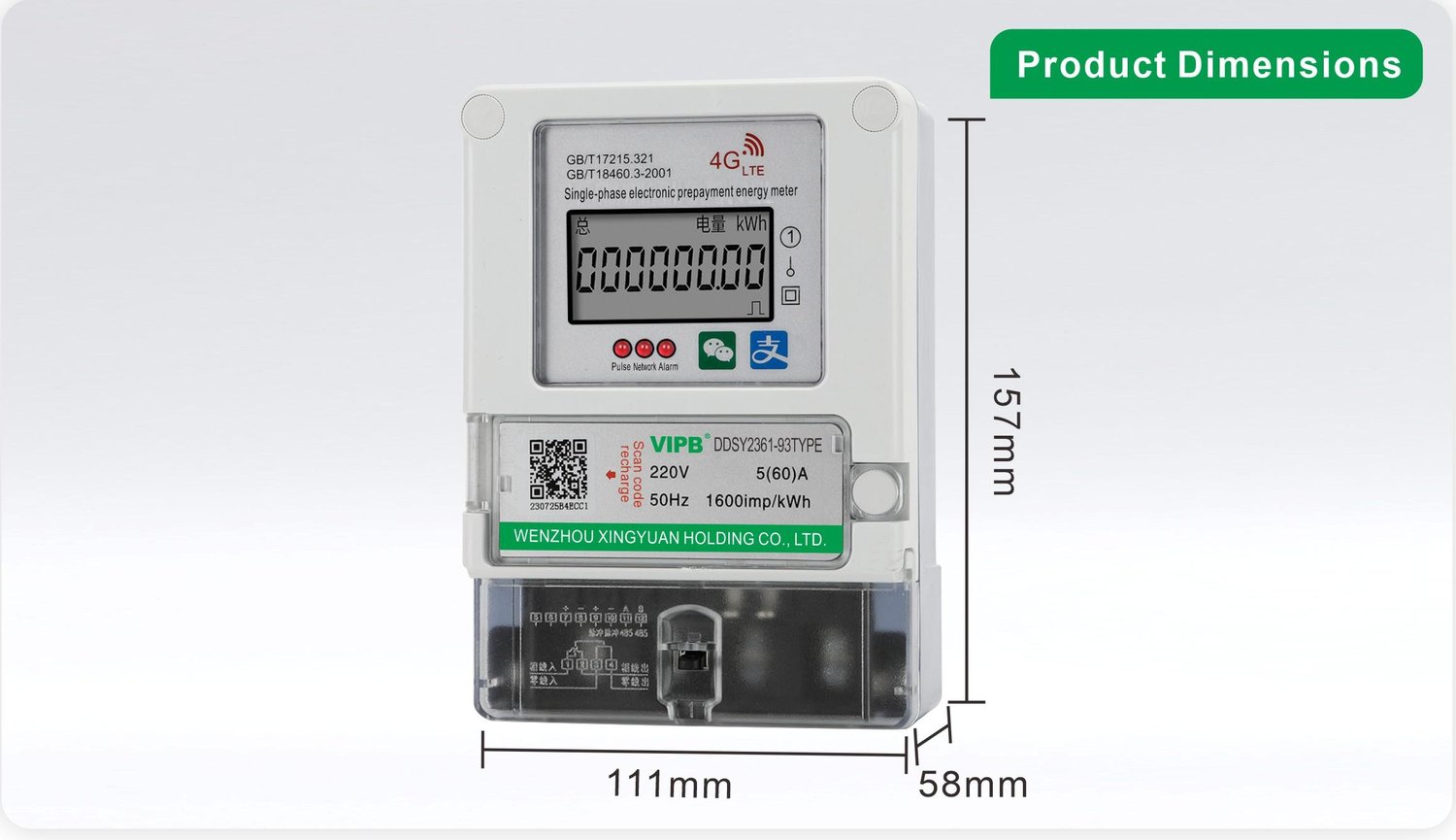

Dimensions
