DDSY2361-106
single-phase AC wall-mounted electricity meter
Description

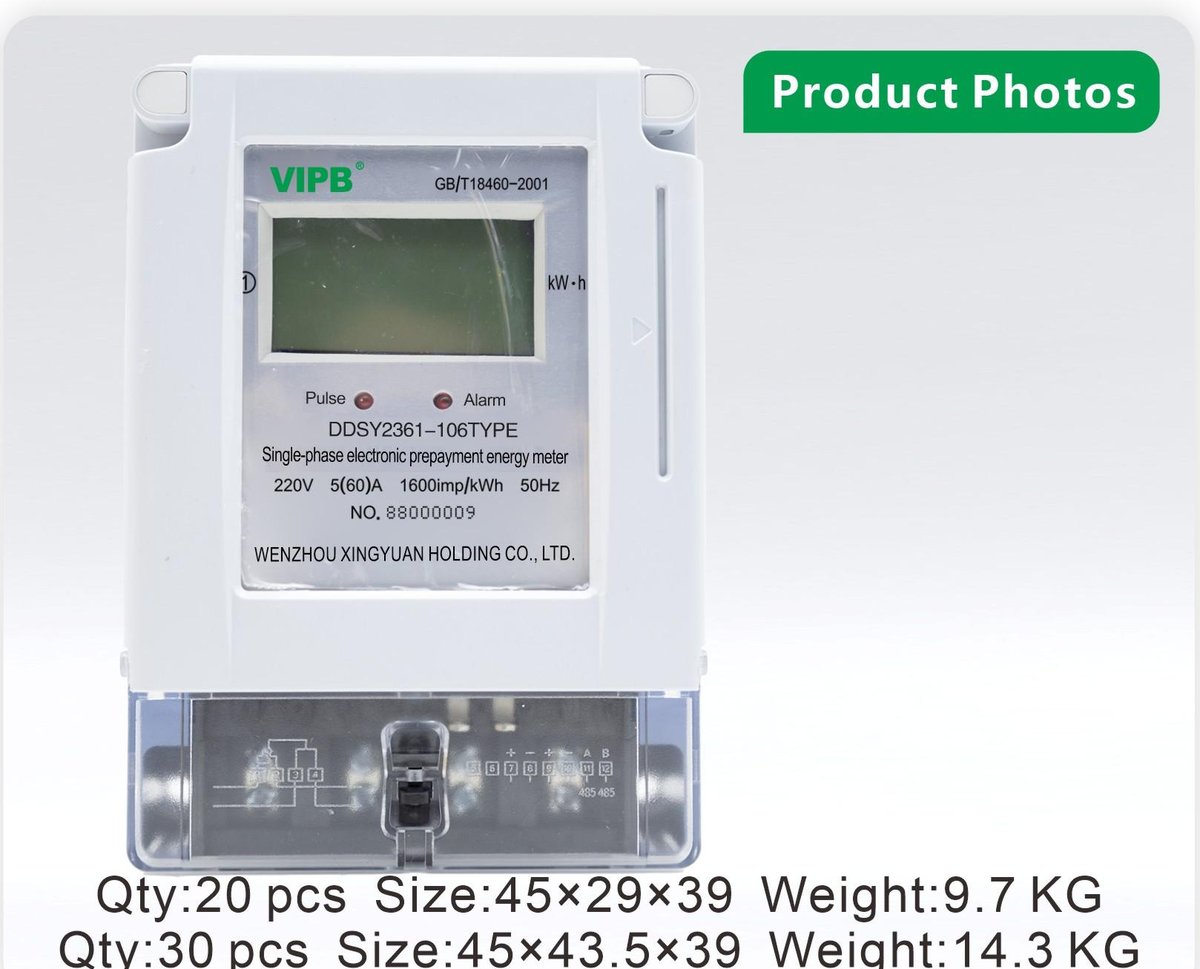

The DDSY2361-106 is a single-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted single-phase card prepayment, property version. The housing measures 58mm×111mm×157mm and weighs ≈0.30kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-106 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Product Dimensions | 58mm×111mm×157mm |
| Weight | ≈0.30kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted single-phase card prepayment, property version |
| Packing | 20pcs/ctn, 9.7kg, 45×29×39 |

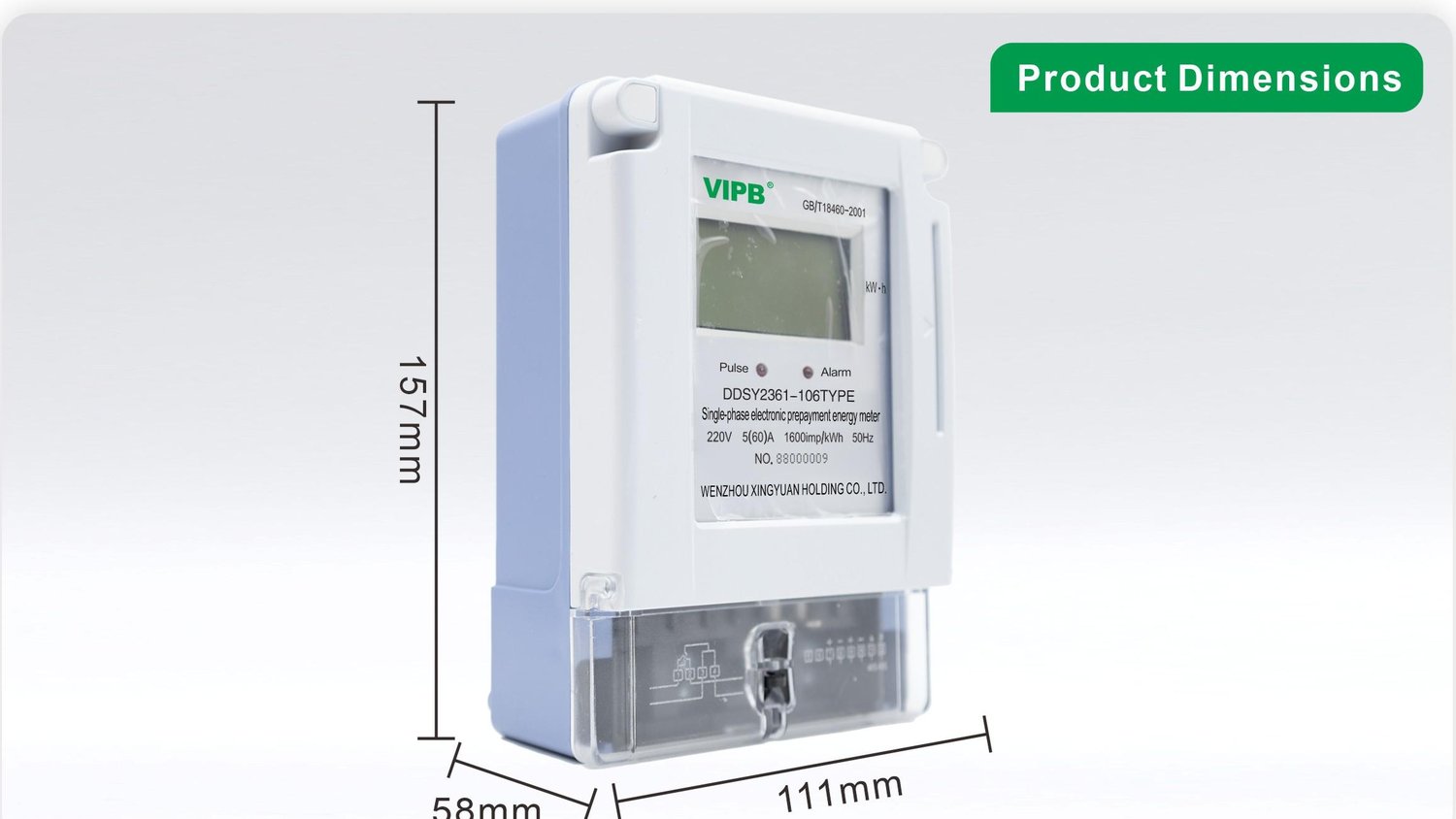

Dimensions
