DDSY2361-16
single-phase AC DIN-rail electricity meter / 2P
Description

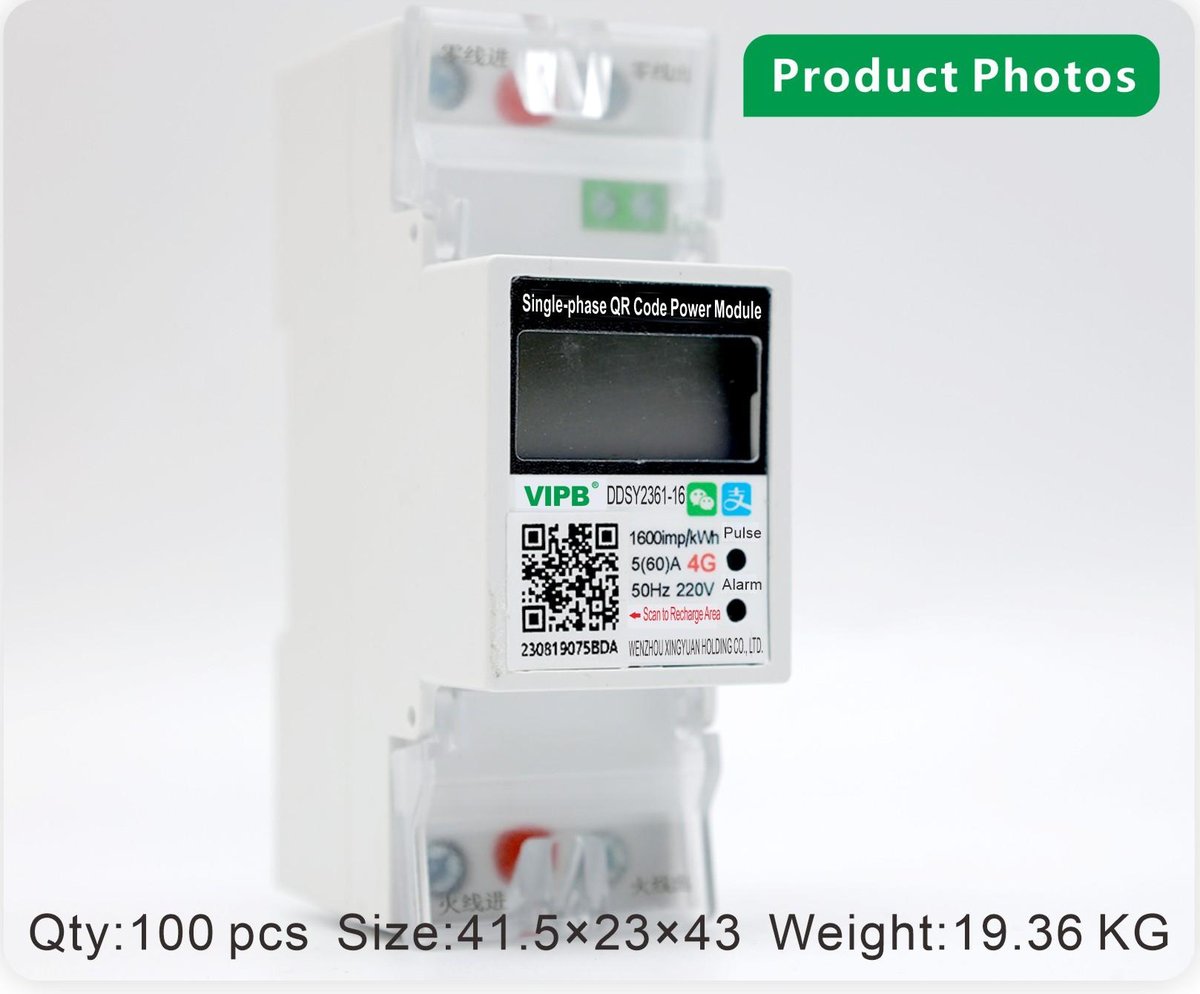

The DDSY2361-16 is a single-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 2P 4G Remote Version. The housing measures 100mm × 36mm × 66.5mm and weighs ≈0.16kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Model | DDSY2361-16 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 100mm × 36mm × 66.5mm |
| Weight | ≈0.16kg |
| Display | LCD |
| Features | 2P 4G Remote Version |
| Packing | 100pcs/ctn, 19.36kg, 41.5×23×43 |

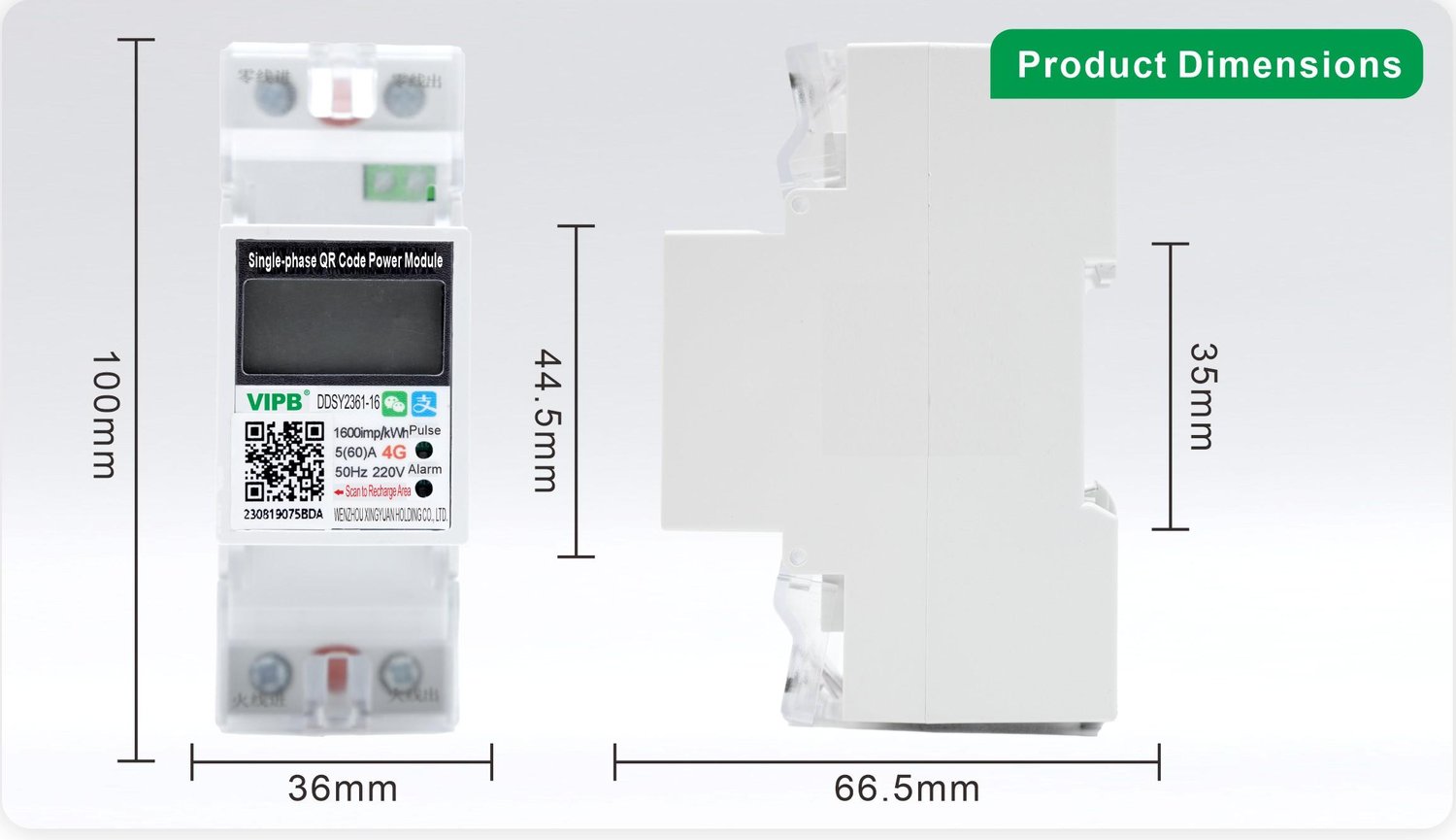

Dimensions
