DDSY2361-15
single-phase AC DIN-rail electricity meter / 2P
Description

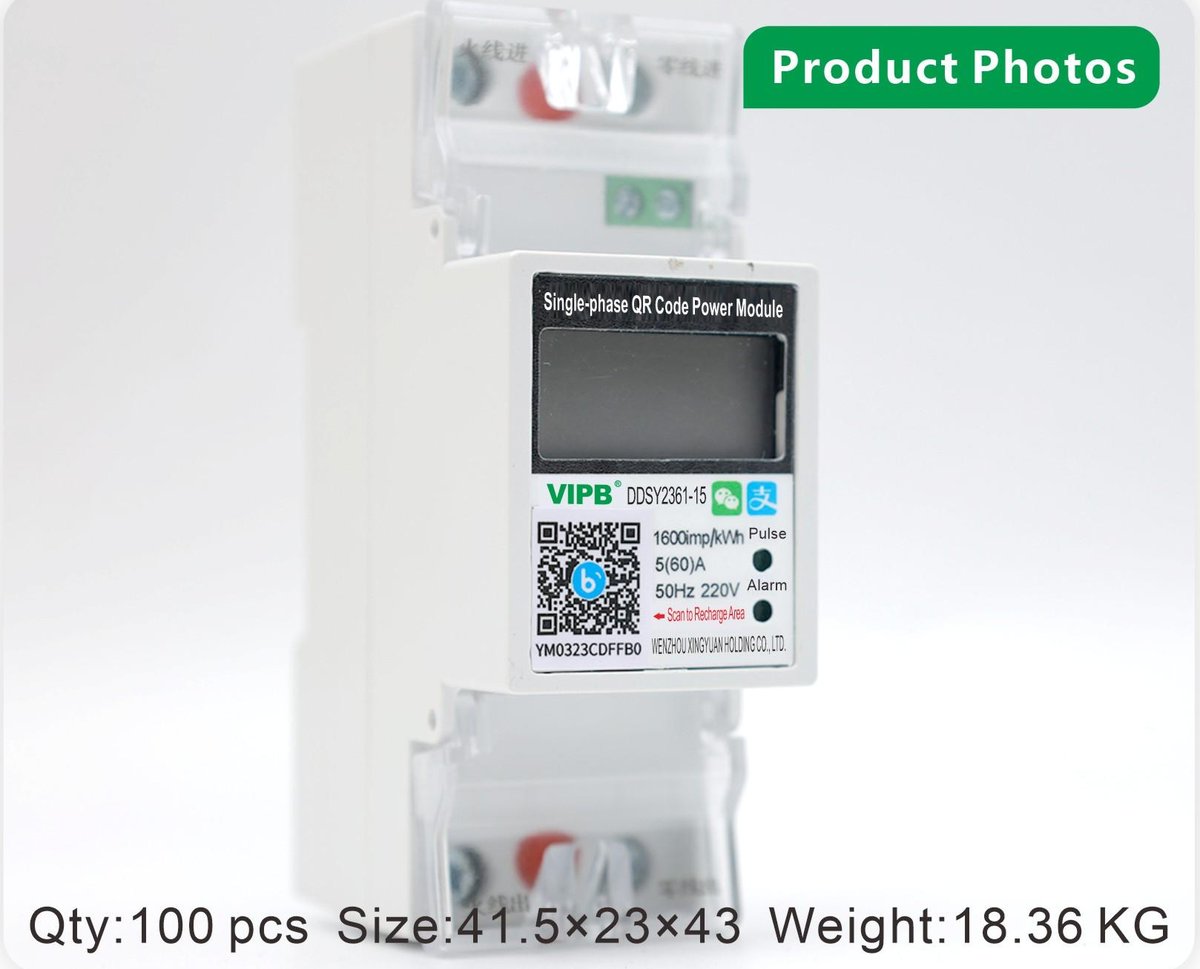

The DDSY2361-15 is a single-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 2P Bluetooth version. The housing measures 36×66.5×100 mm and weighs ≈0.16kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-15 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 36×66.5×100 mm |
| Weight | ≈0.16kg |
| Display Mode | LCD |
| Product Features | 2P Bluetooth version |
| Packing | 100pcs/ctn, 18.36kg, 41.5×23×43 |

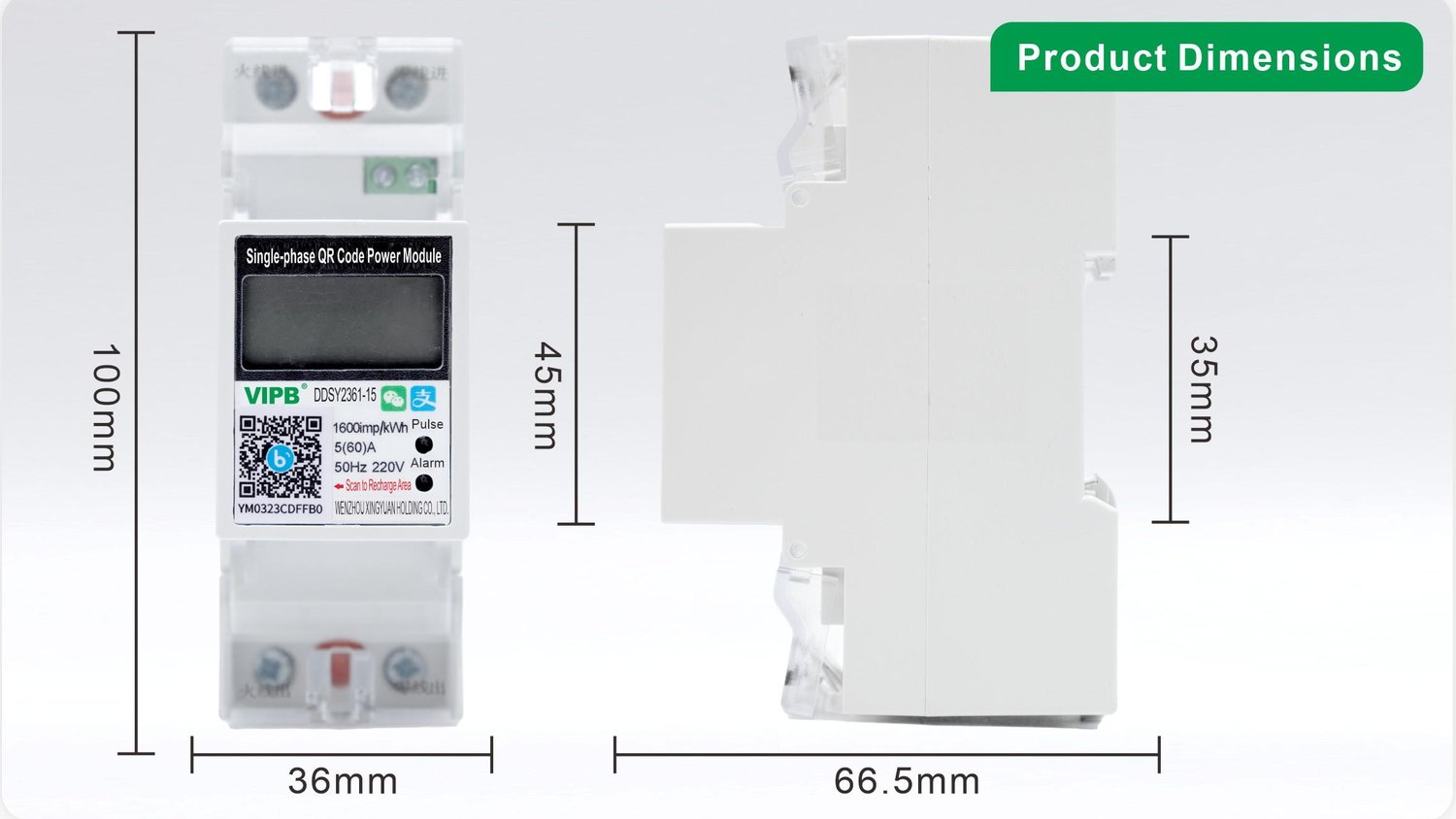

Dimensions
