DDSY2361-12
single-phase AC DIN-rail electricity meter / 2P
Description
The DDSY2361-12 is a single-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: With RS485 communication, voltage, current, power, forward and reverse measurement, prepaid function. The housing measures 92mm ×36mm ×70mm and weighs ≈0.18kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DDSY2361-12 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 92mm ×36mm ×70mm |
| Weight | ≈0.18kg |
| Display Mode | LCD |
| Product Features | With RS485 communication, voltage, current, power, forward and reverse measurement, prepaid function. |
| Packing | 100pcs/ctn, 16.5kg, 41.5×23×43 |

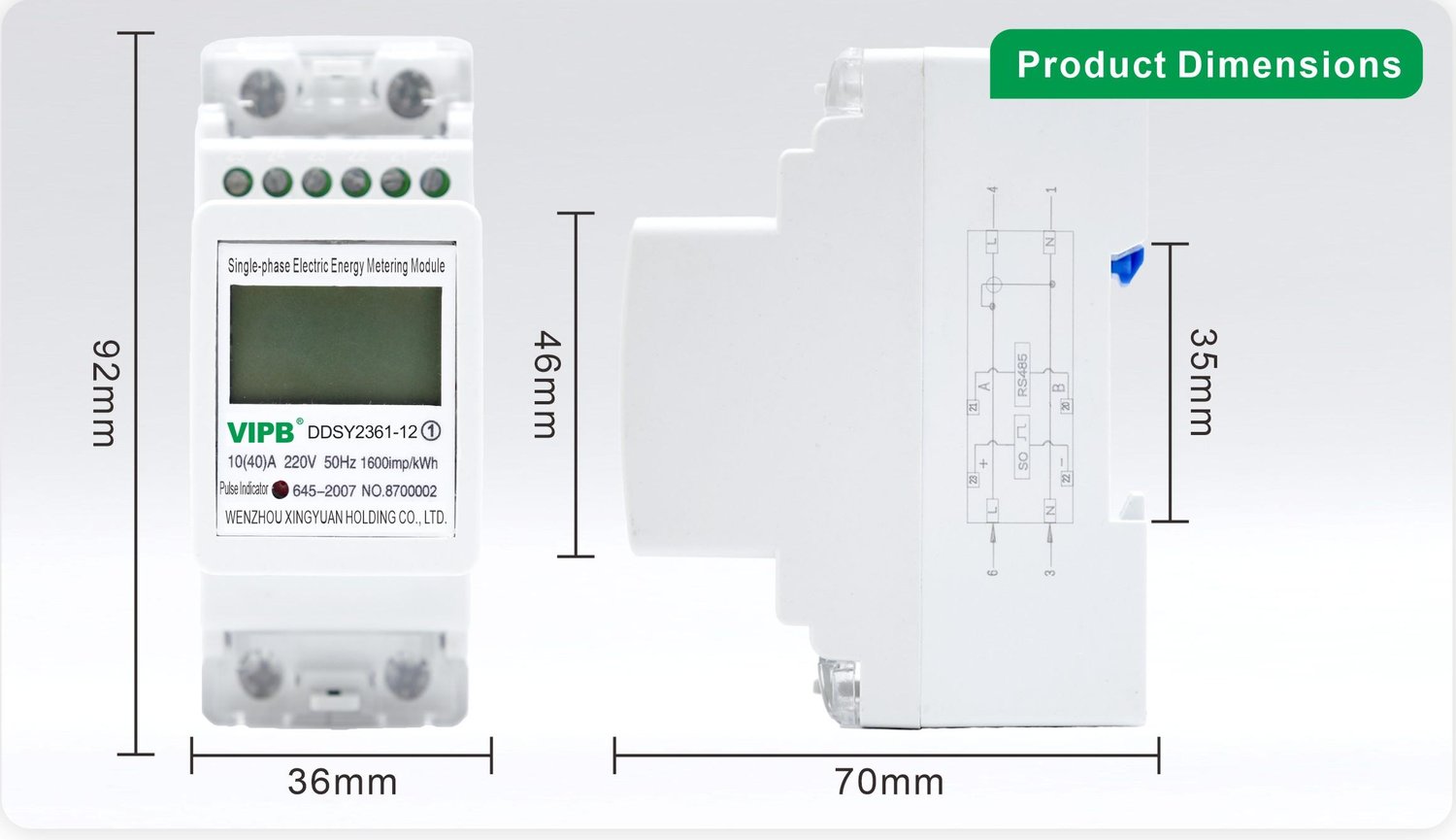

Dimensions
