DDS2361-61
single-phase AC wall-mounted electricity meter
Description

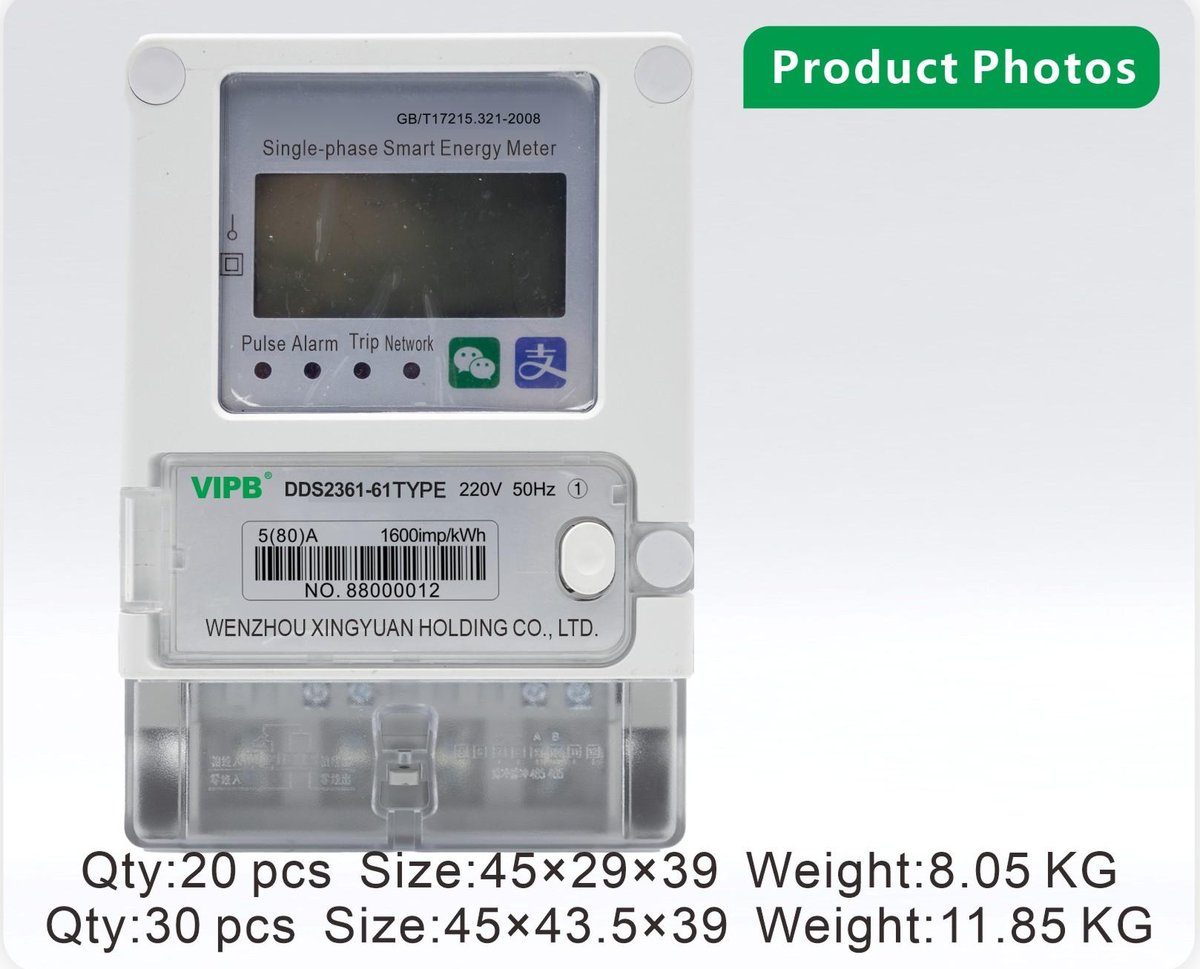

The DDS2361-61 is a single-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted single-phase multi-function 485 communication. The housing measures 58mm×111mm×156mm and weighs ≈0.42kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Product Model | DDS2361-61 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 58mm×111mm×156mm |
| Weight | ≈0.42kg |
| Interface Mode | Pulse |
| Features | Wall-mounted single-phase multi-function 485 communication |
| Packing | 20pcs/ctn, 8.05kg, 45×29×39 |

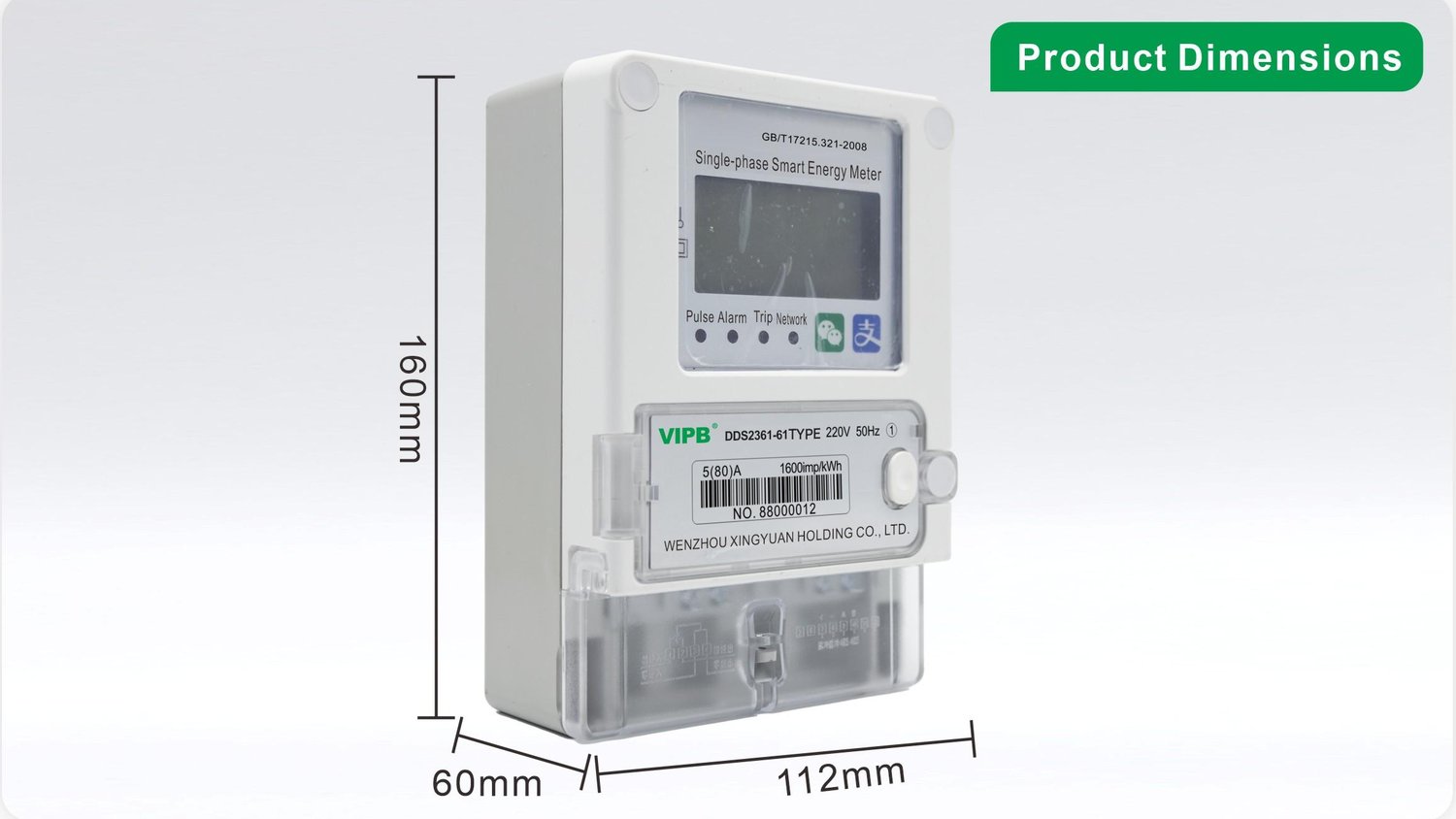

Dimensions
