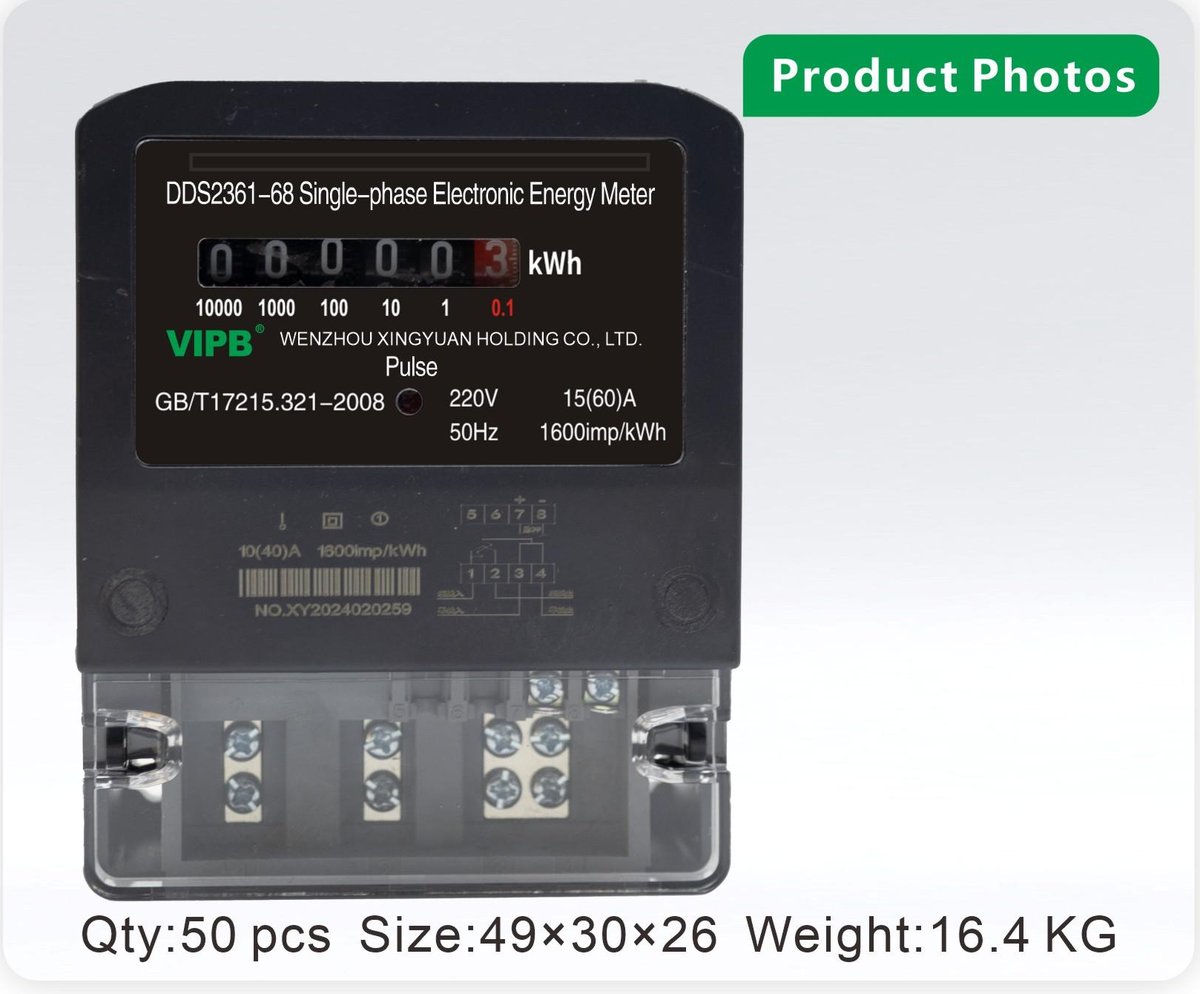

DDS2361-68
single-phase AC wall-mounted electricity meter
Description
The DDS2361-68 is a single-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted single-phase Kunlun counter. Unit weight: ≈0.24kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Product Model | DDS2361-68 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Product Size | 51mm×90mm×112mm |
| Weight | ≈0.24kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted single-phase Kunlun counter |
| Packing | 50pcs/ctn, 16.4kg, 49×30×26 |

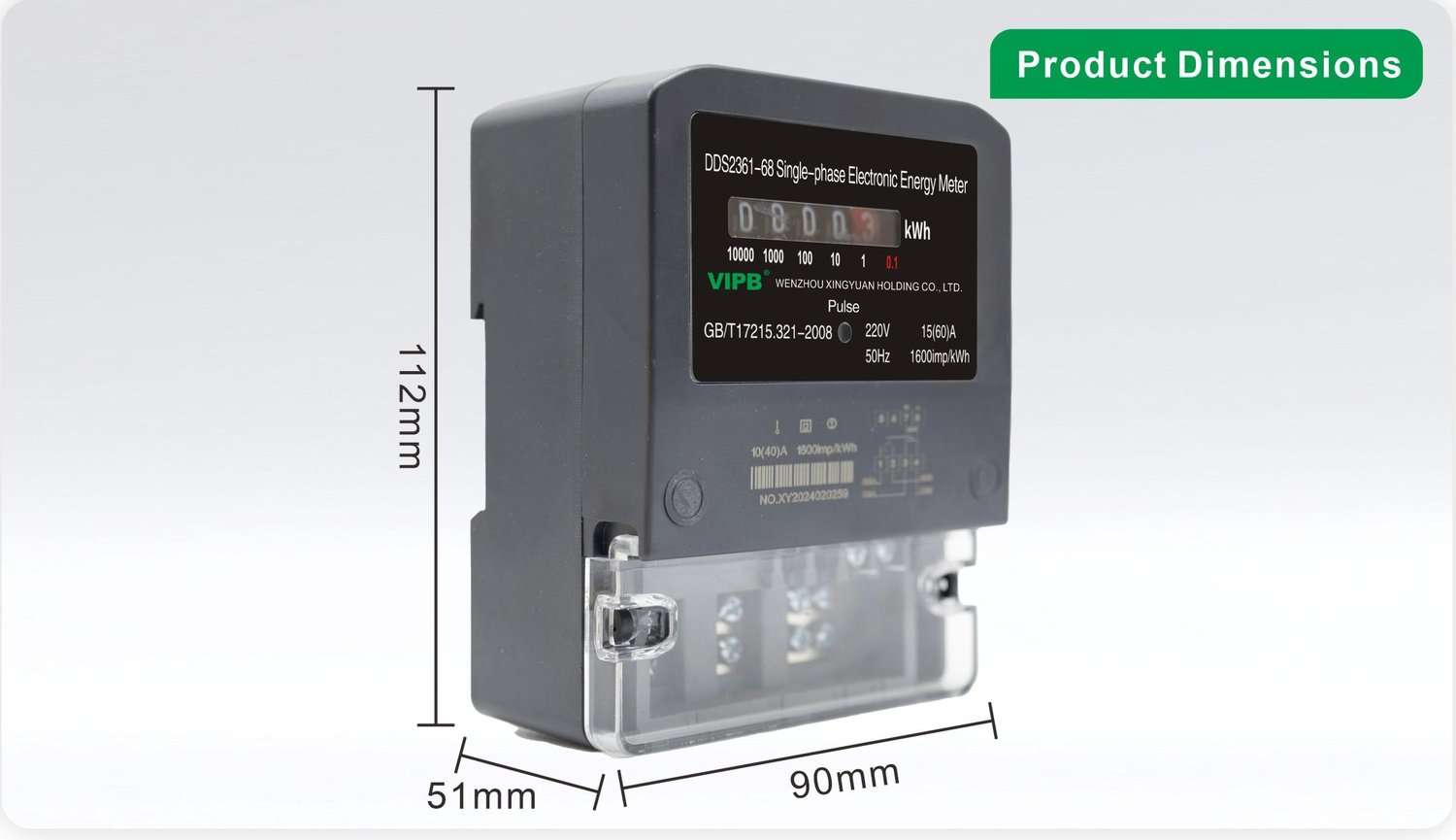

Dimensions
