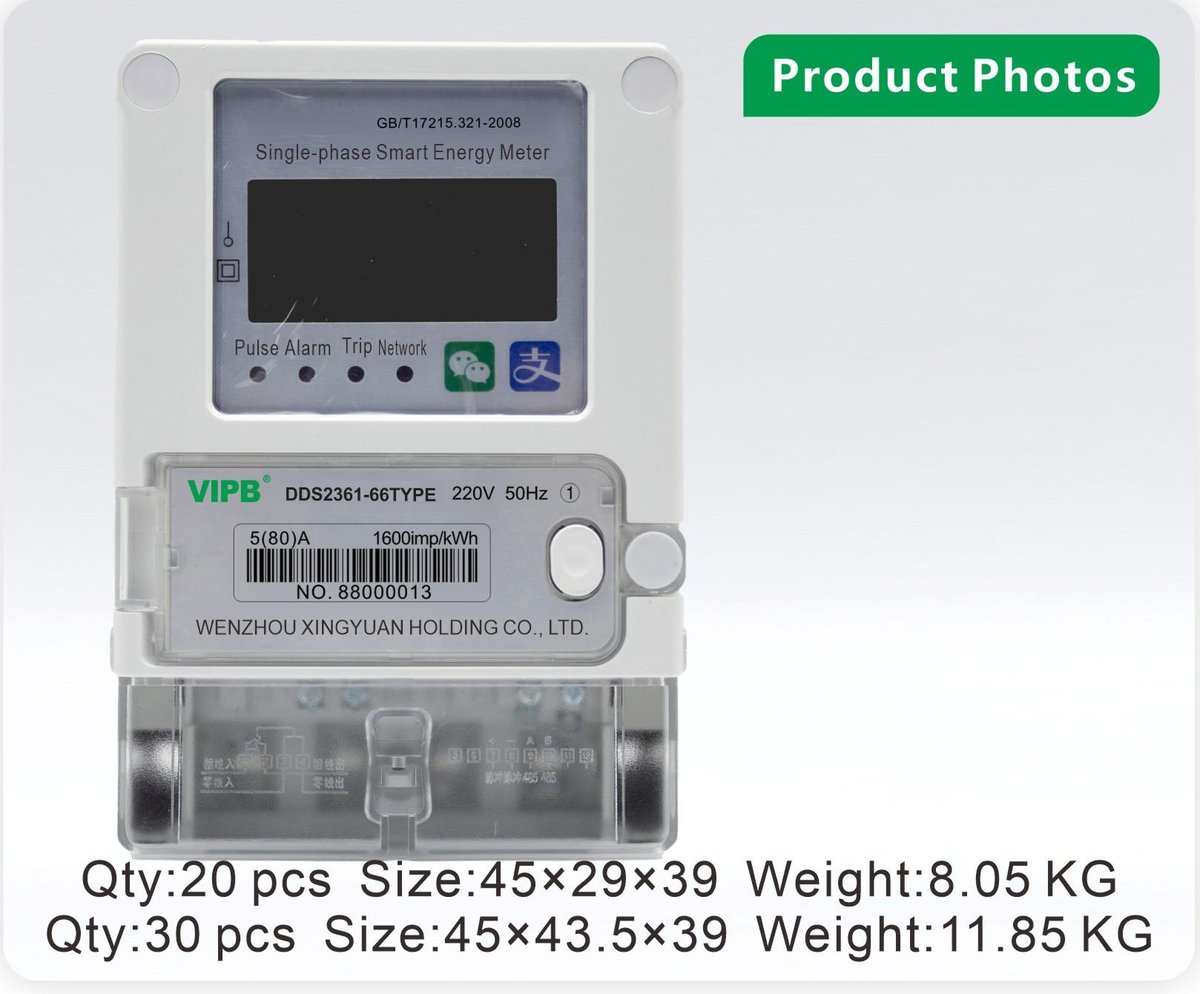

DDS2361-66
single-phase AC wall-mounted electricity meter
Description
The DDS2361-66 is a single-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: Wall-mounted single-phase RS485 function (voltage, current, power, TOU values). Unit weight: ≈0.52kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Product Model | DDS2361-66 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Product Size | 112×60×160 mm |
| Weight | ≈0.52kg |
| Display Mode | LCD |
| Product Features | Wall-mounted single-phase RS485 function (voltage, current, power, TOU values) |
| Energy Pulse Indicator | Energy pulse indicator below the LCD |
| Packing | 20pcs/ctn, 8.05kg, 45×29×39 |

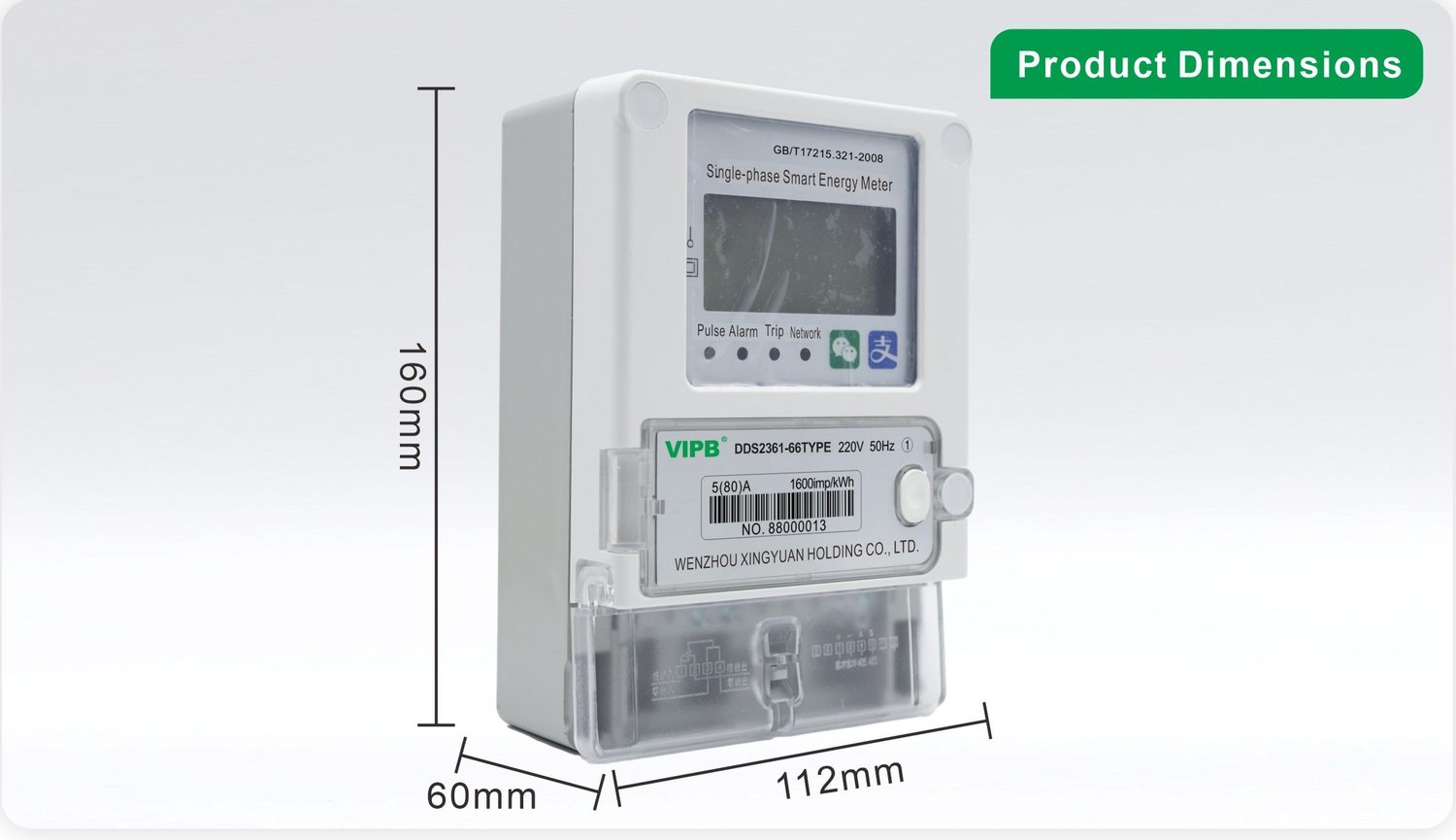

Dimensions
