DDS2361-32
single-phase AC DIN-rail electricity meter / 4P
Description

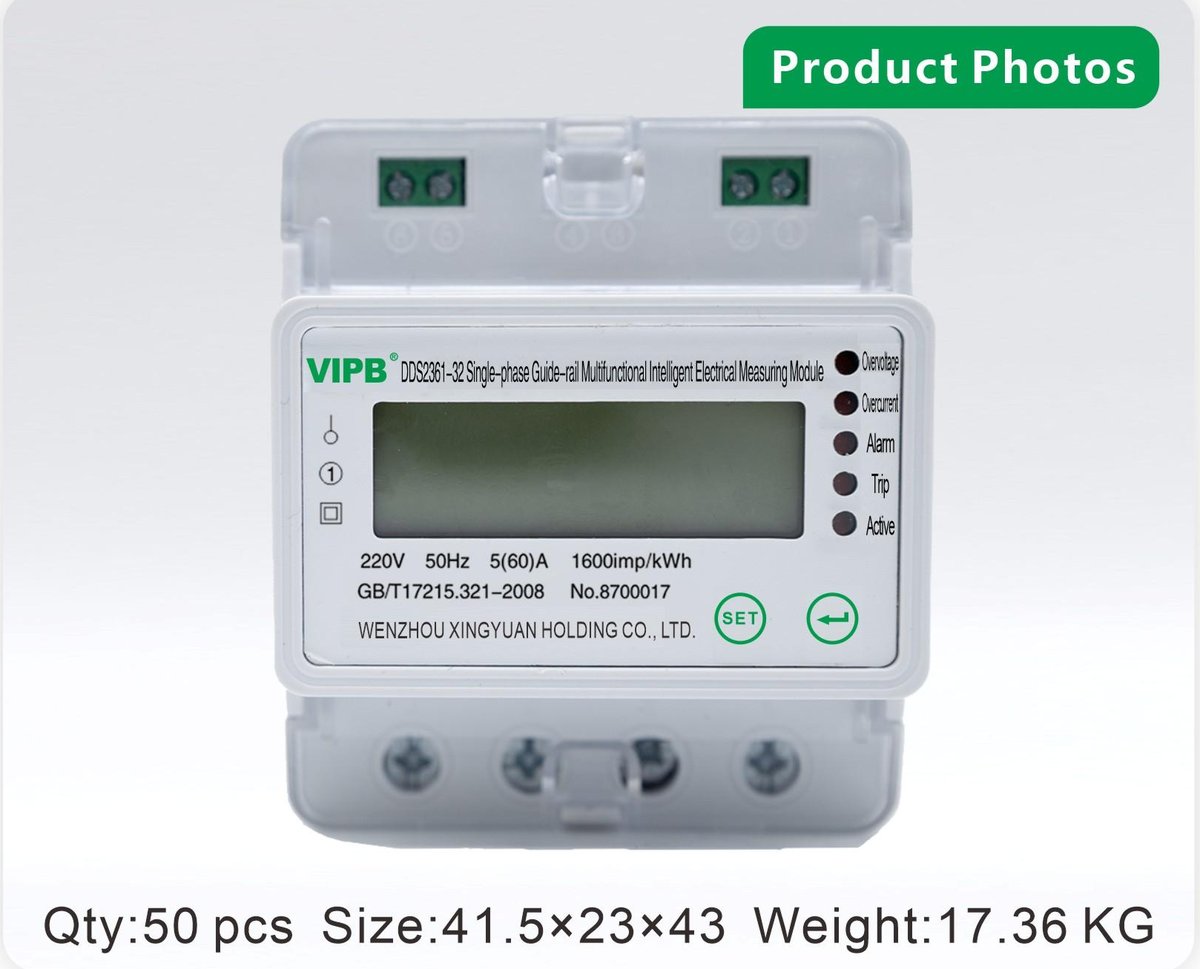

The DDS2361-32 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 4P Single-phase Multifunction RS-485 Communication. The housing measures 93mm×77mm×76mm and weighs ≈0.28kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DDS2361-32 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 93mm×77mm×76mm |
| Weight | ≈0.28kg |
| Display Mode | LCD |
| Product Features | 4P Single-phase Multifunction RS-485 Communication |
| Phase and Display | Single-phase current and voltage display |
| Packing | 50pcs/ctn, 17.36kg, 41.5×23×43 |

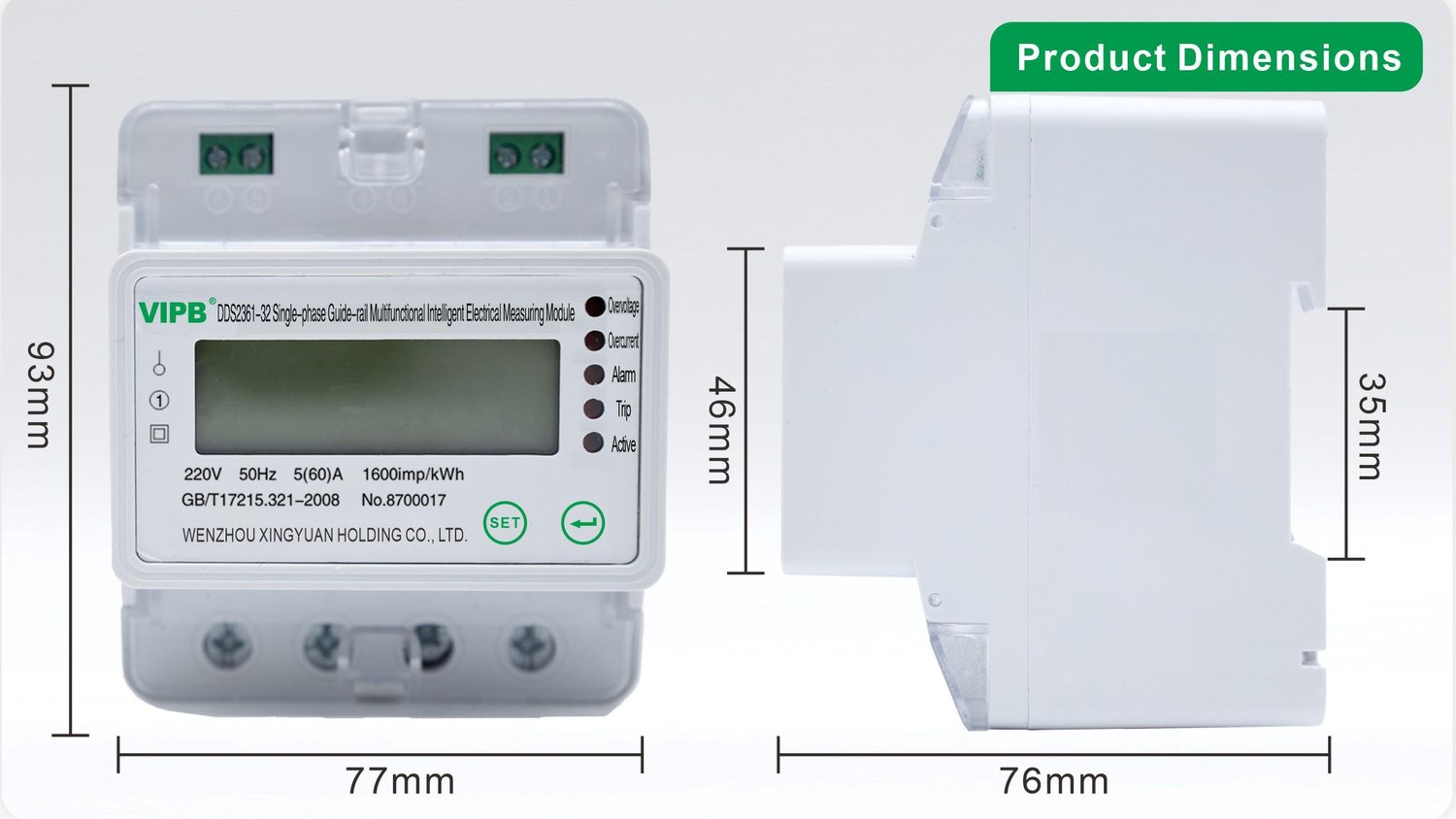

Dimensions
