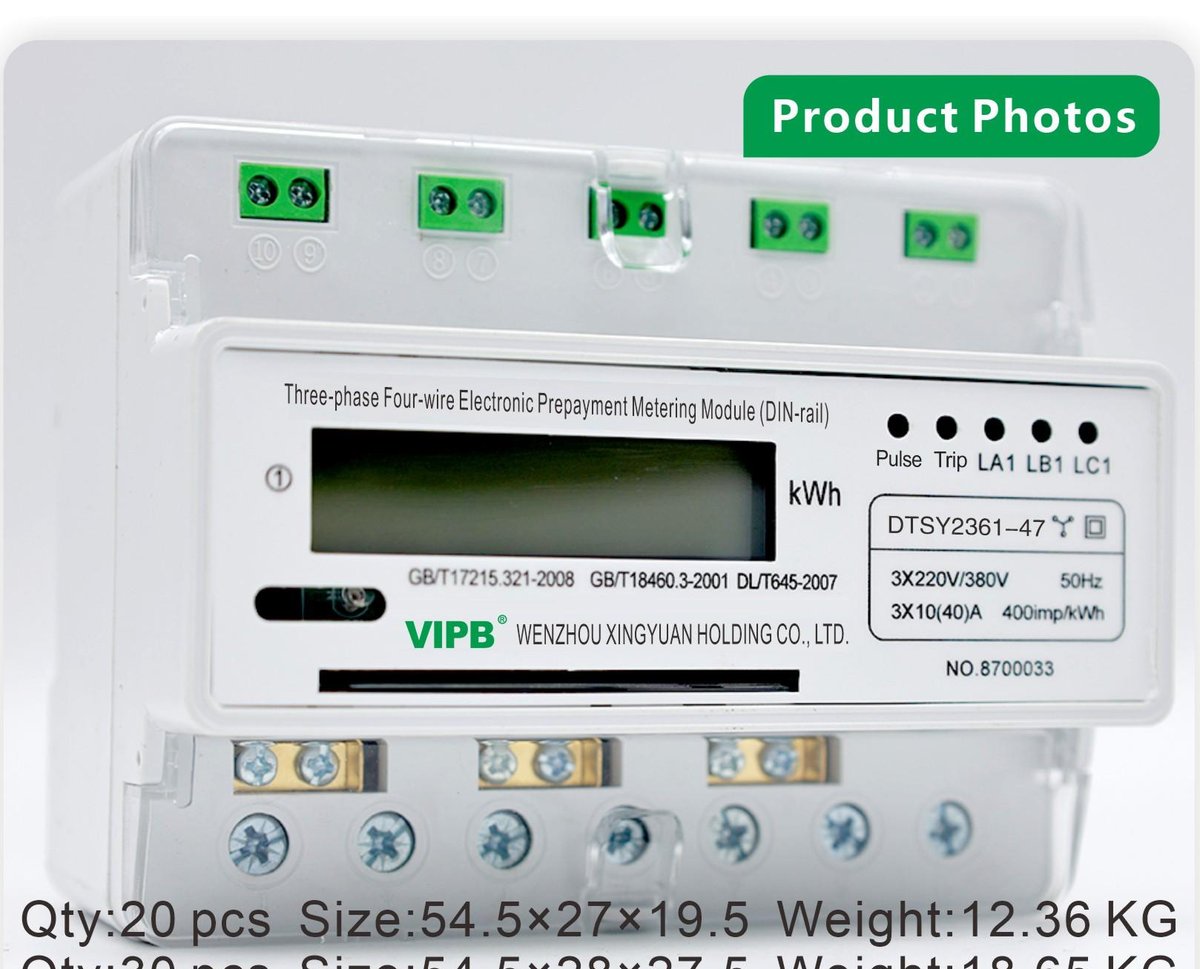

DTSY2361-47
three-phase AC DIN-rail electricity meter / 7P
Description
The DTSY2361-47 is a three-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 7P three-phase card-type. The housing measures 126mm×97mm×76mm and weighs ≈0.70kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DTSY2361-47 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 126mm×97mm×76mm |
| Weight | ≈0.70kg |
| Display Mode | LCD |
| Product Features | 7P three-phase card-type |
| Packing | 20pcs/ctn, 12.36kg, 54.5×27×19.5 |

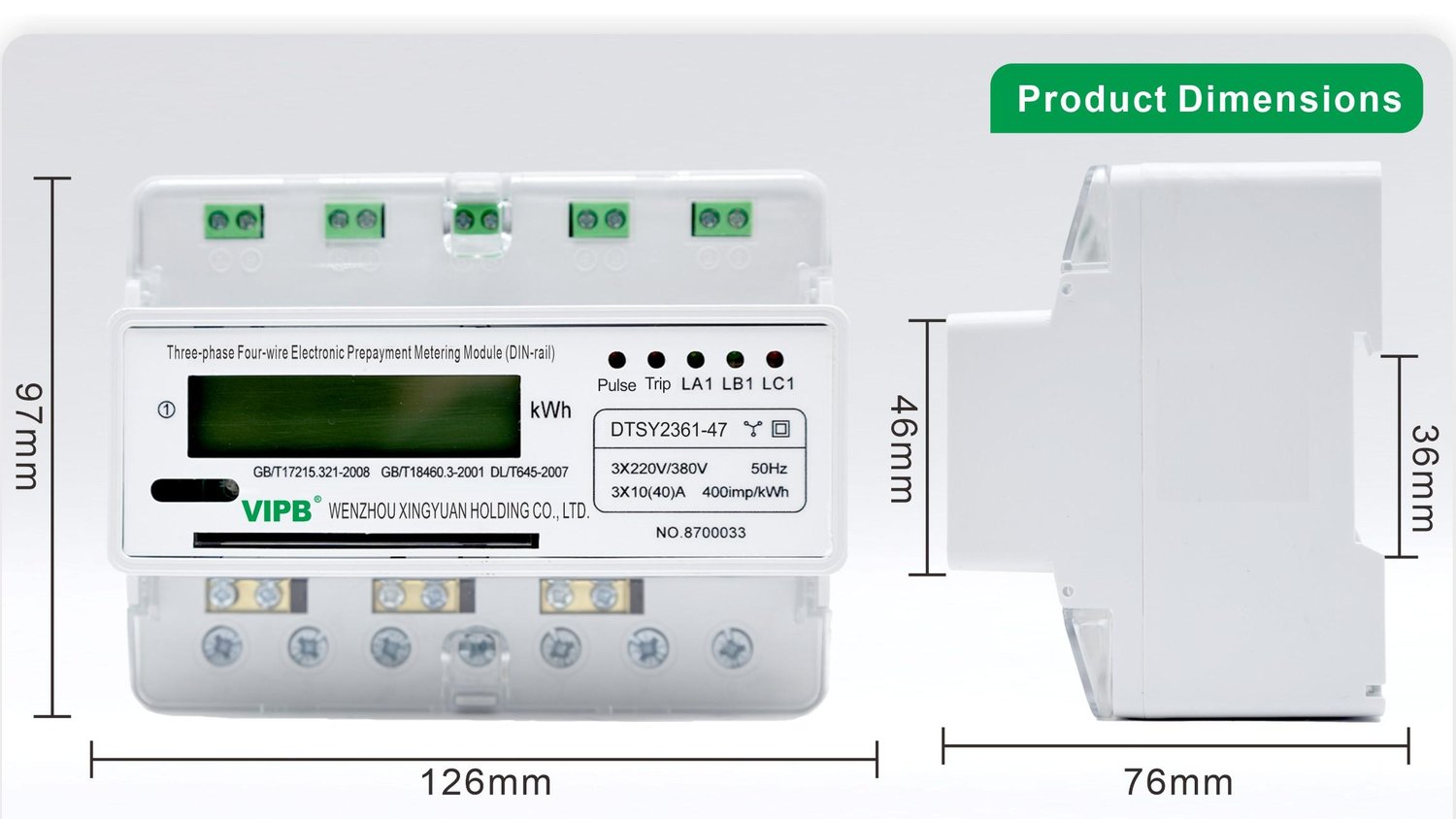

Dimensions
