DTSY2361-46
three-phase AC DIN-rail electricity meter / 7P
Description
The DTSY2361-46 is a three-phase DIN-rail prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 7P Three-phase Card Prepayment LCD Metering Wiring mode: bottom in, bottom out. The housing measures 126mm×97mm×76mm and weighs ≈0.72kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Product Model | DTSY2361-46 |
| Voltage | 220V/380V |
| Accuracy Class | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 126mm×97mm×76mm |
| Weight | ≈0.72kg |
| Display Mode | LCD |
| Product Features | 7P Three-phase Card Prepayment LCD Metering Wiring mode: bottom in, bottom out |
| Packing | 20pcs/ctn, 9.76kg, 54.5×27×19.5 |

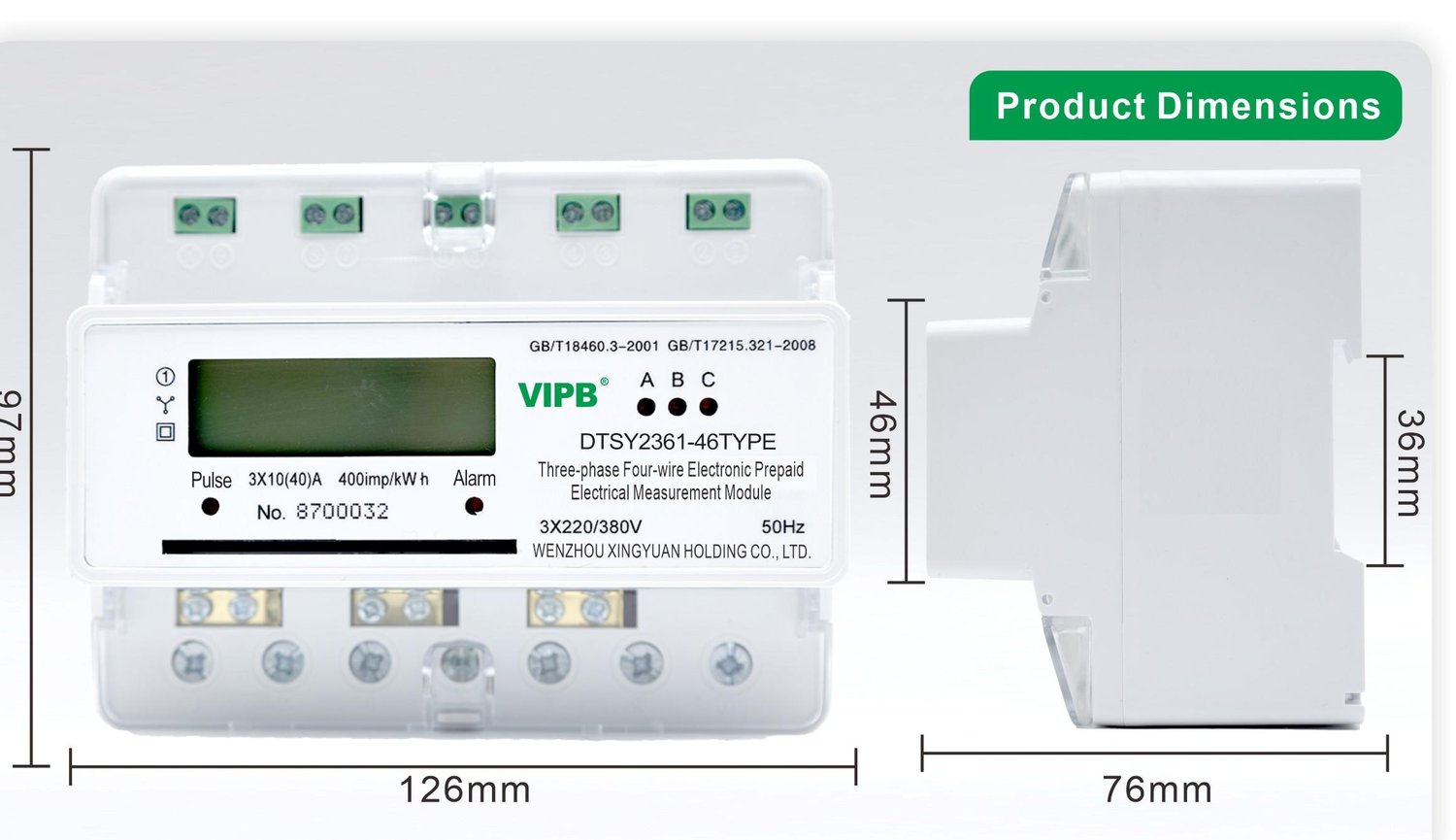

Dimensions
Related Models

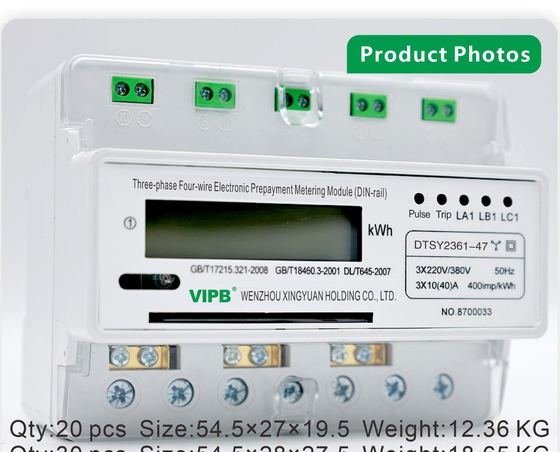

DTSY2361-47
three-phase AC DIN-rail electricity meter / 7P

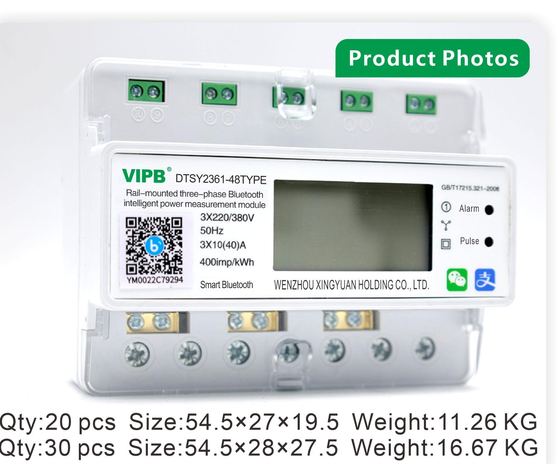

DTSY2361-48
three-phase AC DIN-rail electricity meter / 7P

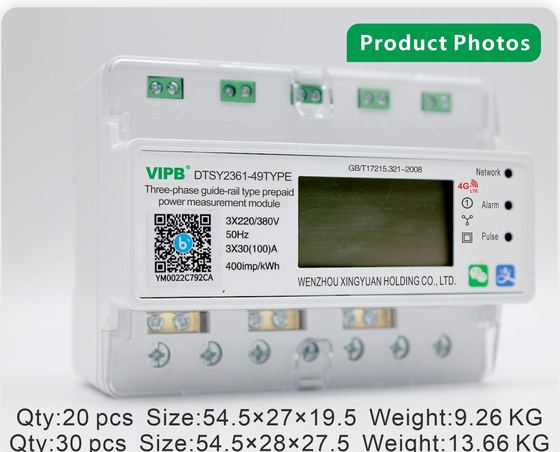

DTSY2361-49
