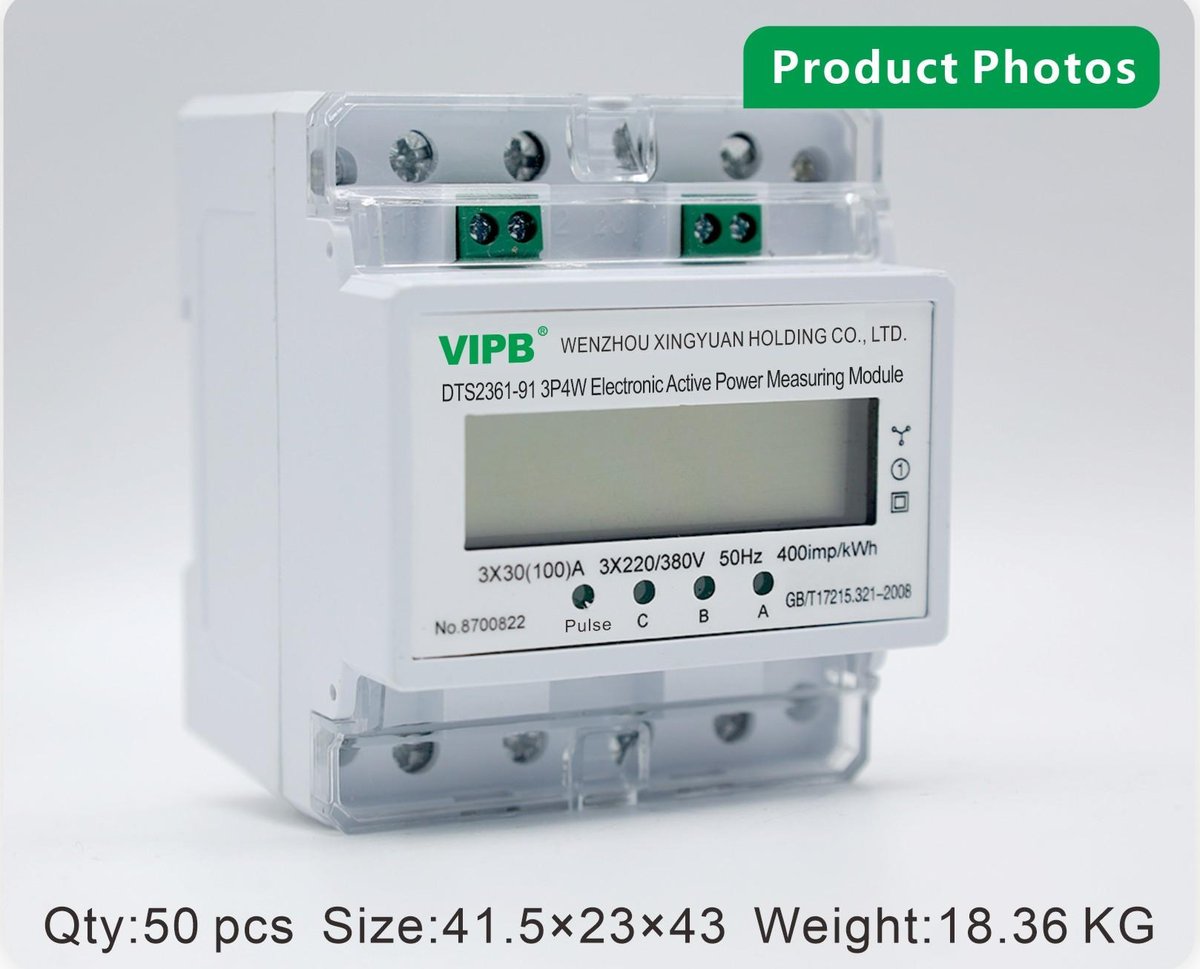

DTS2361-91
three-phase AC DIN-rail electricity meter / 4P
Description
The DTS2361-91 is a three-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 4P 3-phase conventional. The housing measures 92mm×77mm×75mm and weighs ≈0.40kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DTS2361-91 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 92mm×77mm×75mm |
| Weight | ≈0.40kg |
| Display Mode | LCD |
| Product Features | 4P 3-phase conventional |
| Packing | 50pcs/ctn, 18.36kg, 41.5×23×43 |

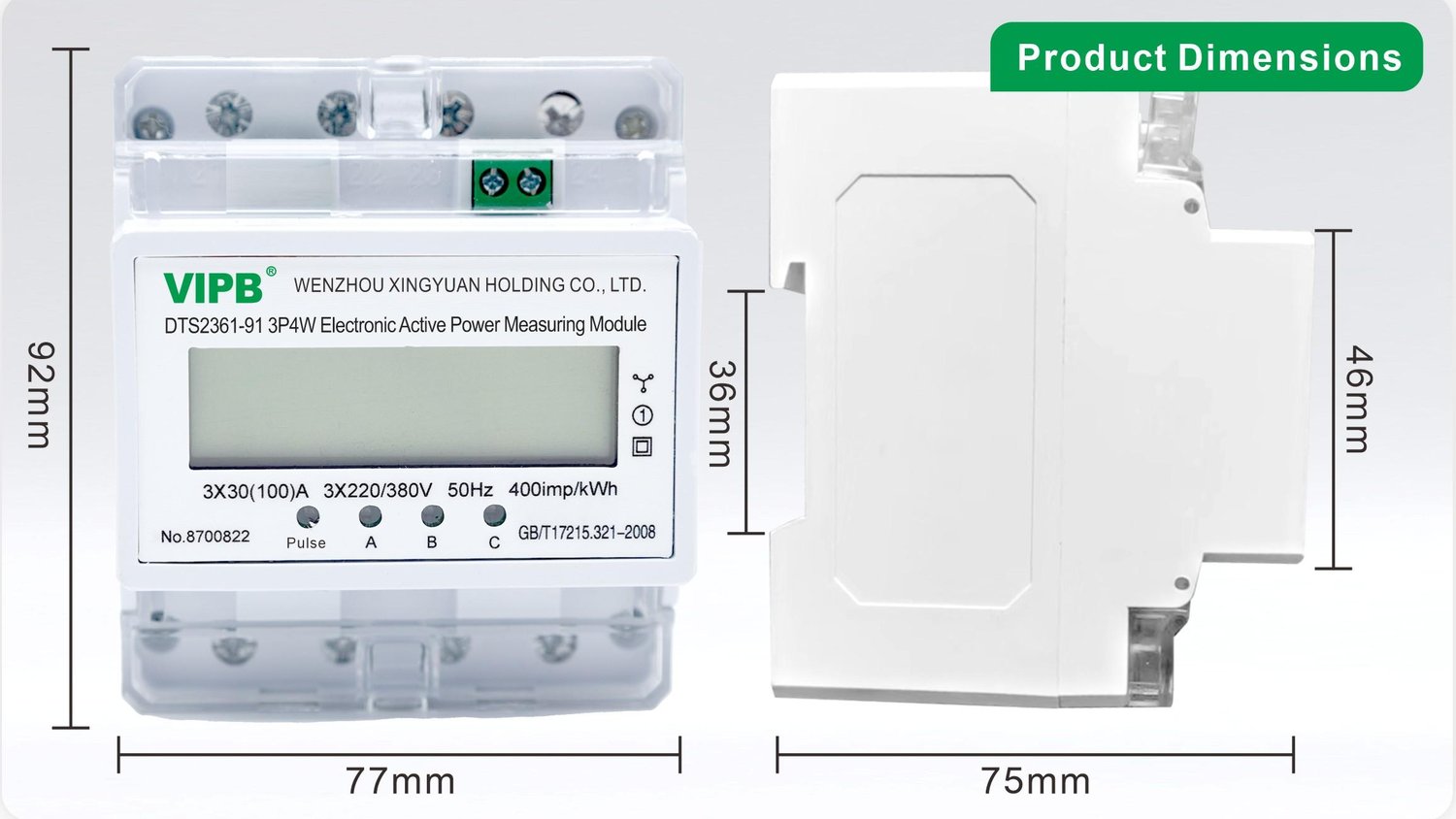

Dimensions
Related Models

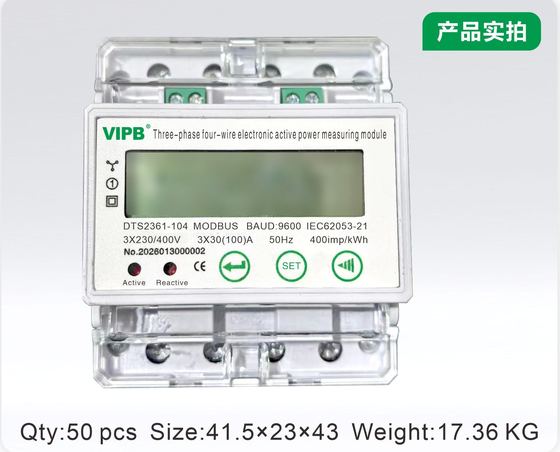

DTS2361-104
three-phase AC DIN-rail electricity meter / 4P

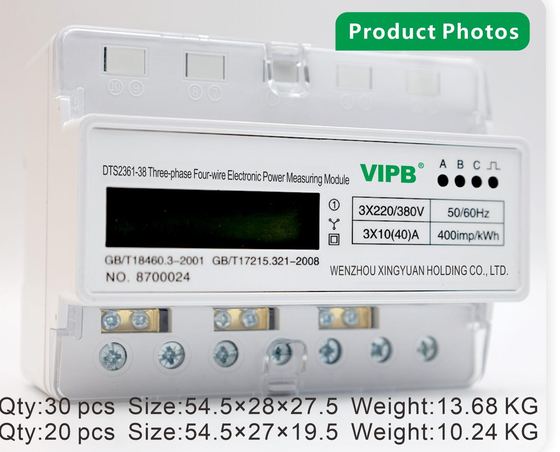

DTS2361-38
three-phase AC DIN-rail electricity meter / 7P

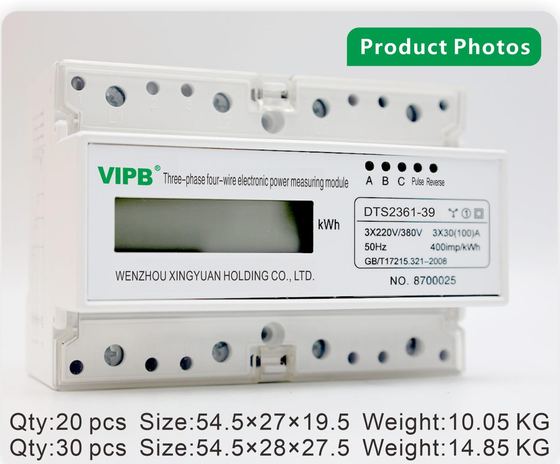

DTS2361-39
