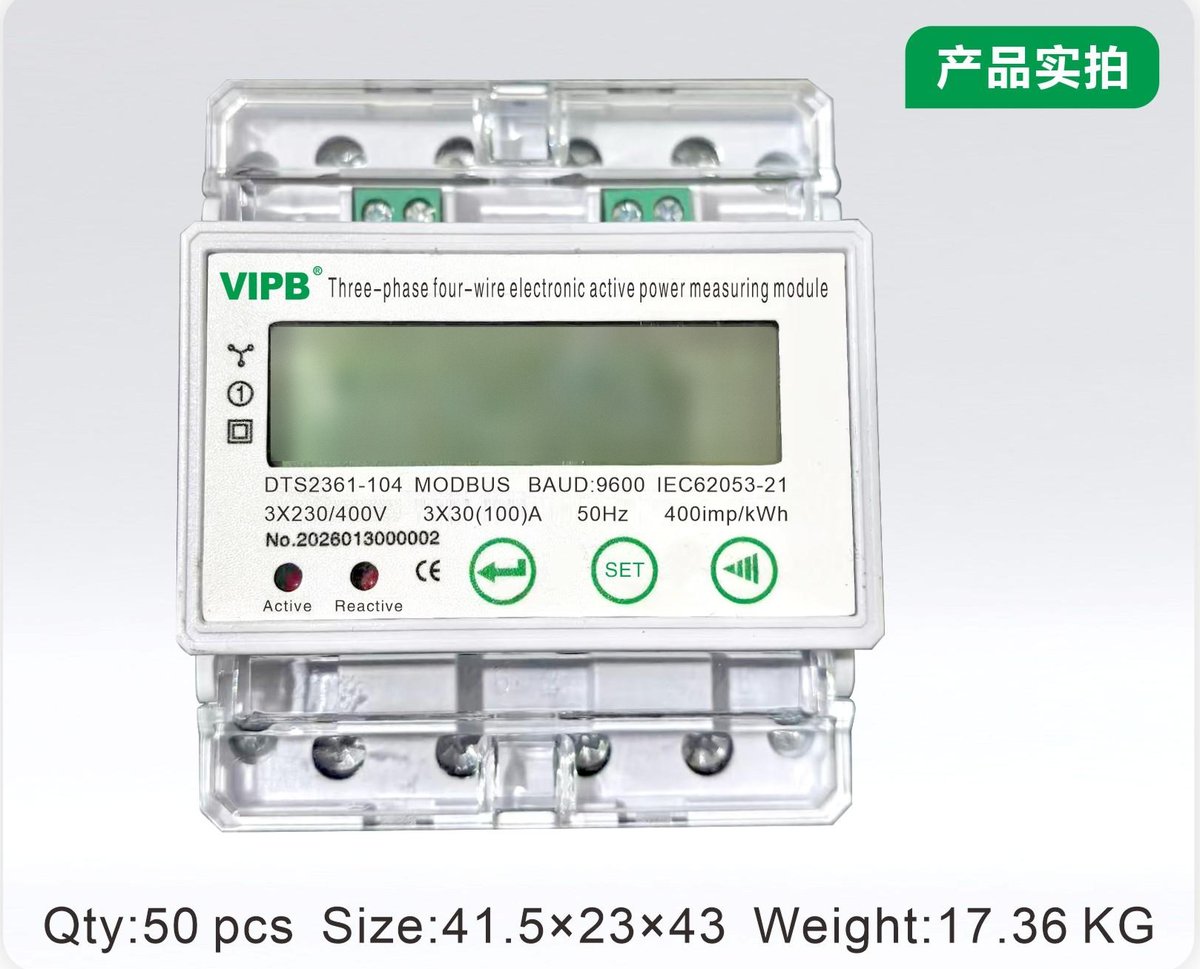

DTS2361-104
three-phase AC DIN-rail electricity meter / 4P
Description
The DTS2361-104 is a three-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 3×230/400V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 4P three-phase multifunctional with RS485 communication. The housing measures 93mm×77mm×76mm and weighs ≈0.28kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DTS2361-104 |
| Voltage | 3×230/400V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 93mm×77mm×76mm |
| Weight | ≈0.28kg |
| Display Mode | LCD |
| Product Features | 4P three-phase multifunctional with RS485 communication |
| Packing | 50pcs/ctn, 17.36kg, 41.5×23×43 |

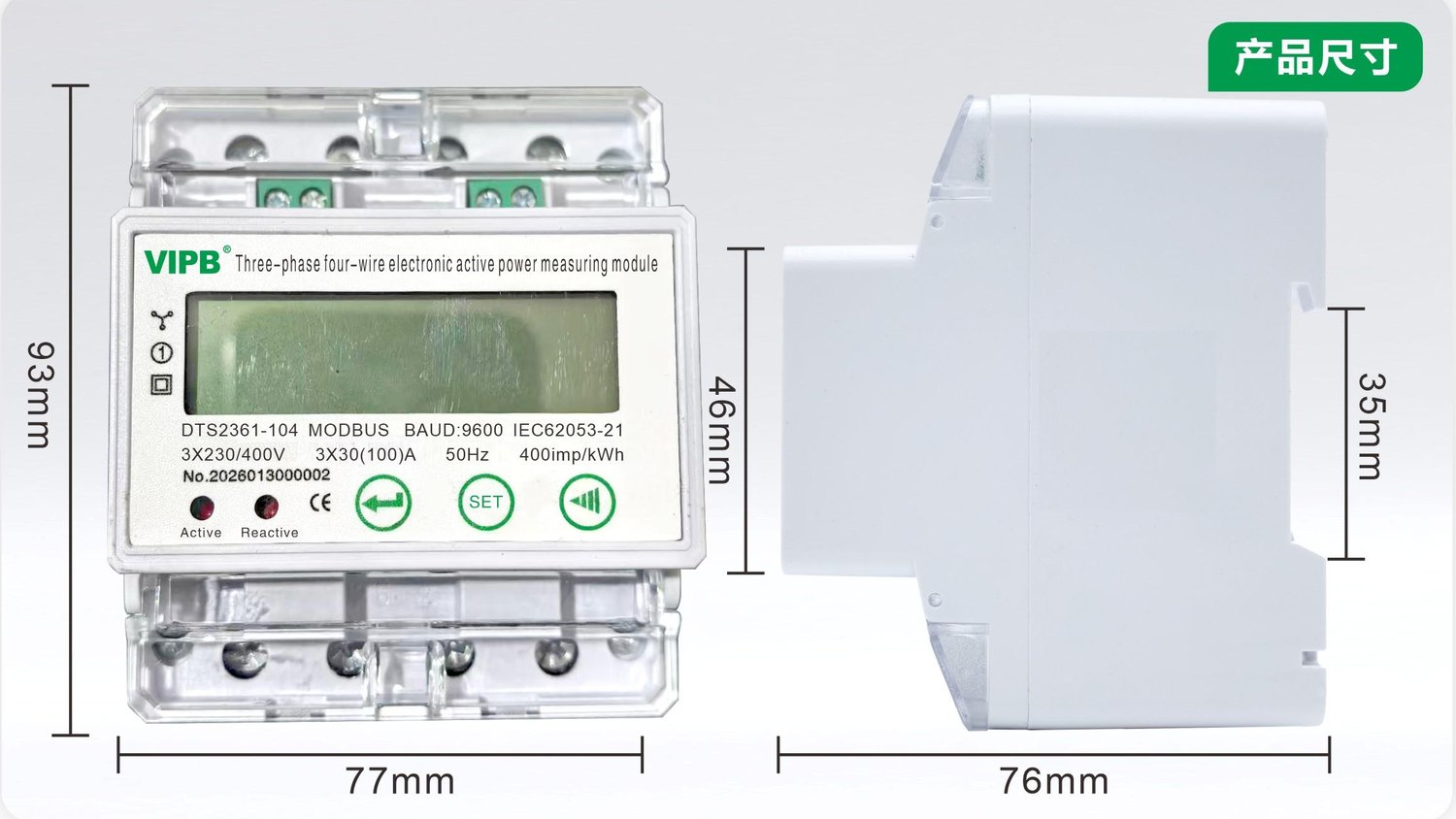

Dimensions
Related Models
DTS2361-38
three-phase AC DIN-rail electricity meter / 7P
DTS2361-39
three-phase AC DIN-rail electricity meter / 7P

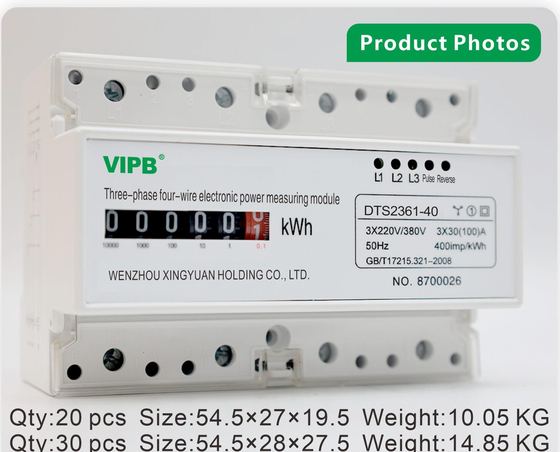

DTS2361-40
