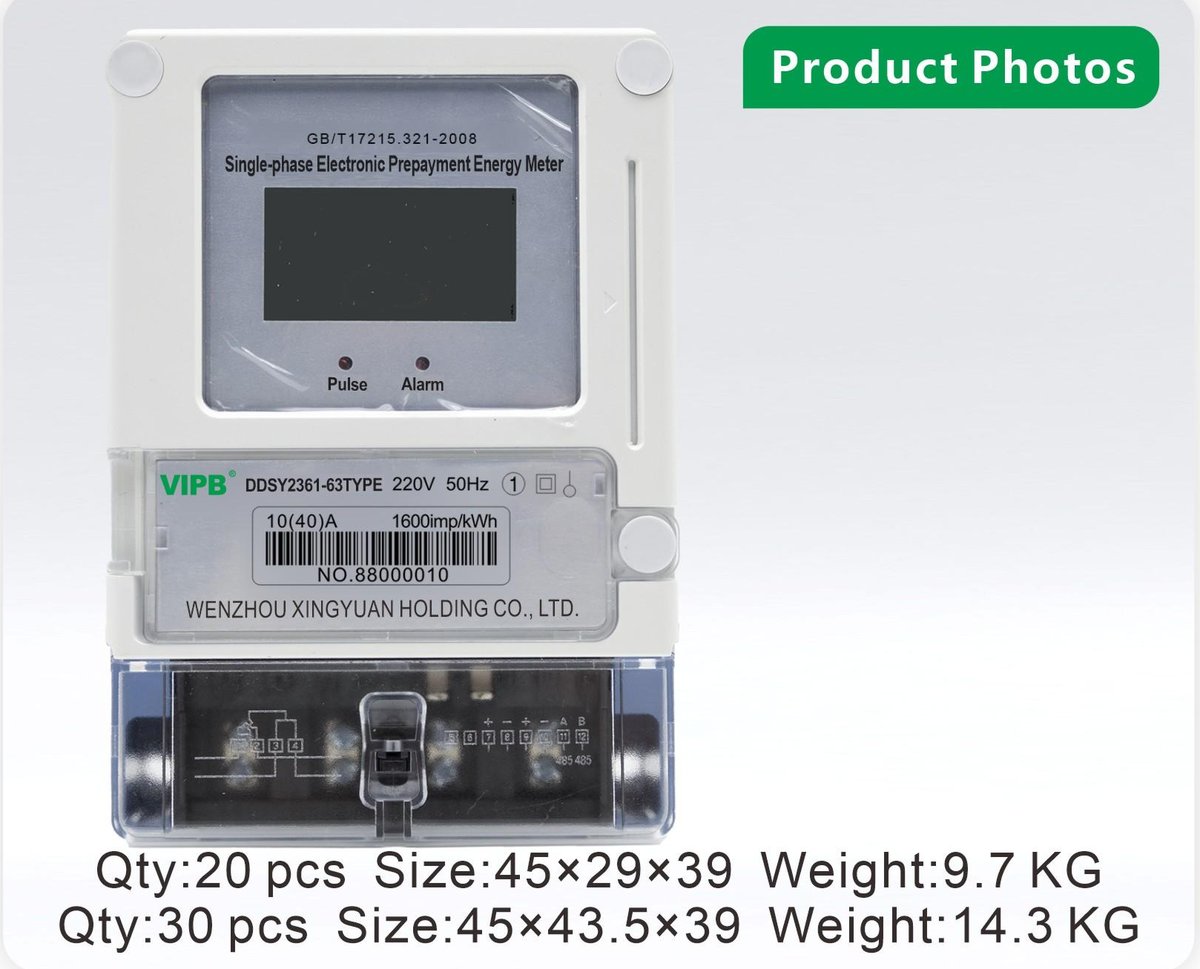

DDSY2361-63
single-phase AC wall-mounted electricity meter
Description
The DDSY2361-63 is a single-phase wall-mounted prepaid smart electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted Single-phase Prepayment with Card (Dual Standard). The housing measures 58mm × 111mm × 156mm and weighs ≈0.48kg. Typical applications include rental properties, estates, dormitories and utility prepayment metering programs.
Technical Specifications
| Model | DDSY2361-63 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 58mm × 111mm × 156mm |
| Weight | ≈0.48kg |
| Interface Mode | Pulse |
| Features | Wall-mounted Single-phase Prepayment with Card (Dual Standard) |
| Packing | 20pcs/ctn, 9.7kg, 45×29×39 |

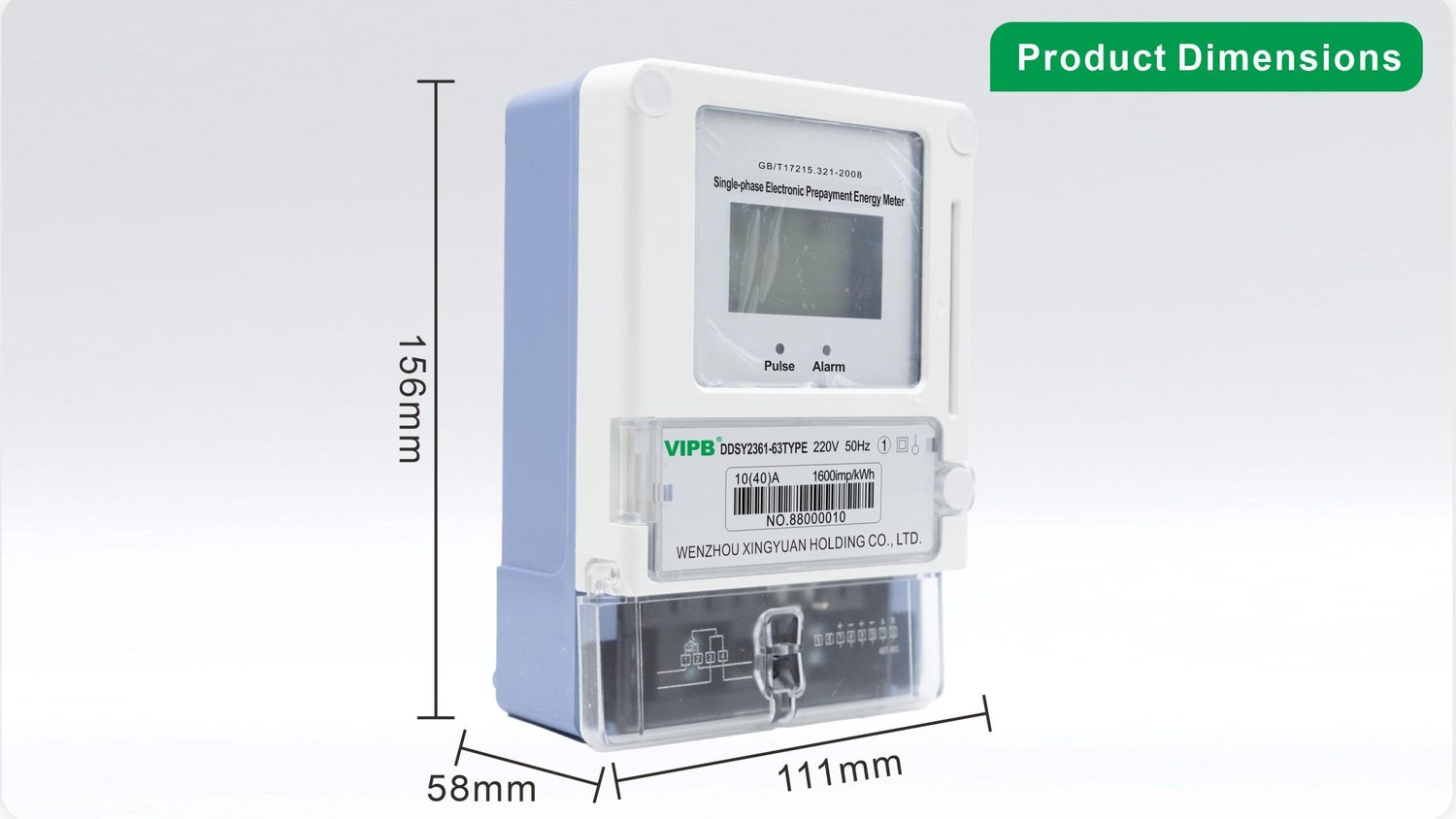

Dimensions
