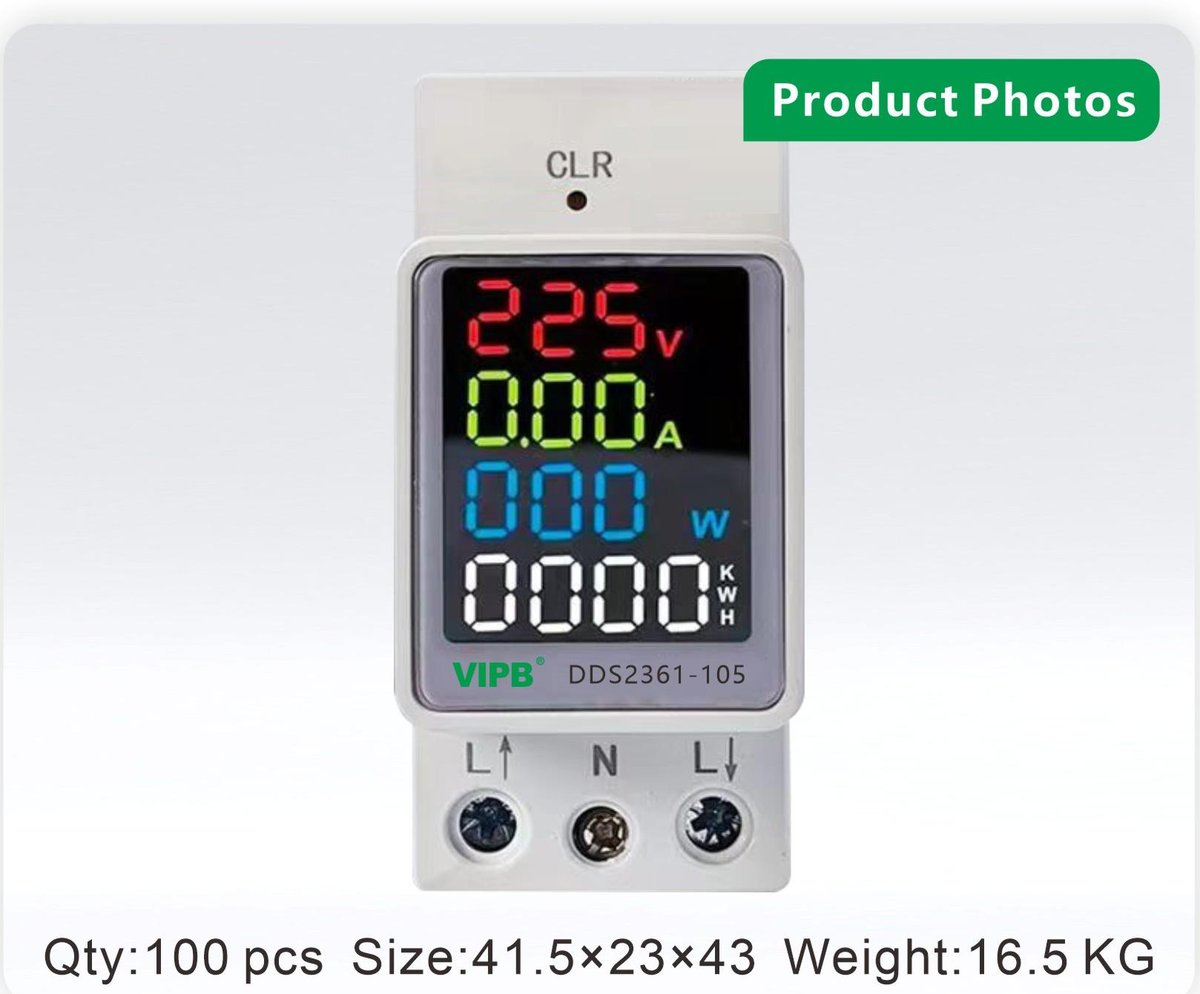

DDS2361-105
single-phase AC DIN-rail electricity meter / 2P
Description
The DDS2361-105 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of Measuring range: AC 160V ~ AC 270V, AC 70V~150V, a rated current of 5(60)A.
The housing measures 36 x 79 x 67 mm (W x D x H). Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Model | DDS2361-105 |
| Voltage | Measuring range: AC 160V ~ AC 270V, AC 70V~150V |
| Current | Measuring range: AC 0 ~ 100A, starting current 0.1A |
| Power | Measuring range: 0 ~ 25KW, starting power 10W |
| Energy | Measuring range: 0 ~ 9999KWH |
| Function | Measures AC voltage, current, active power, frequency, power factor, and energy with color display |
| Rated Current | 5(60)A |
| Product Dimensions | 36 x 79 x 67 mm (W x D x H) |
| Packing | 100pcs/ctn, 16.5kg, 41.5×23×43 |

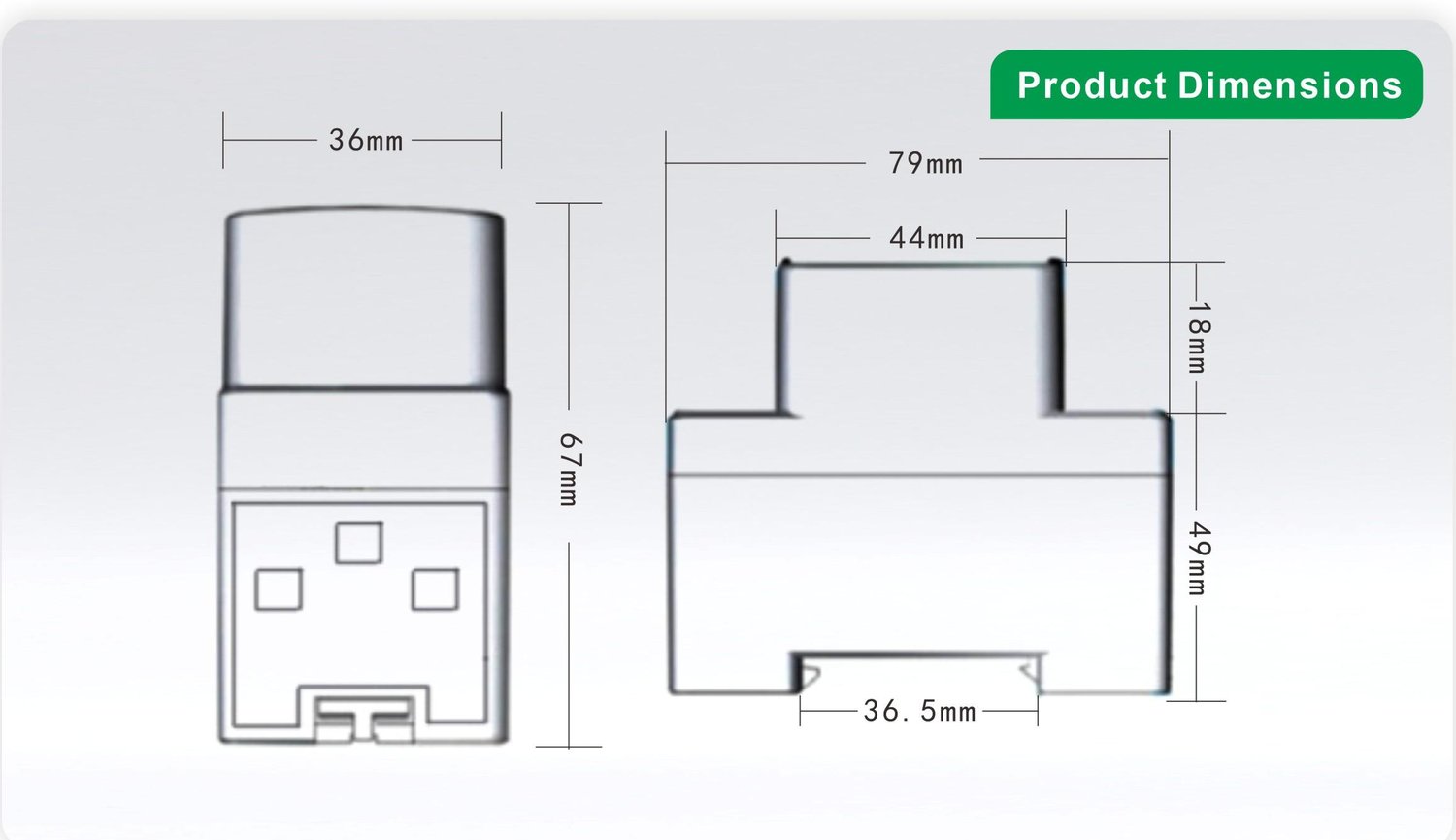

Dimensions
