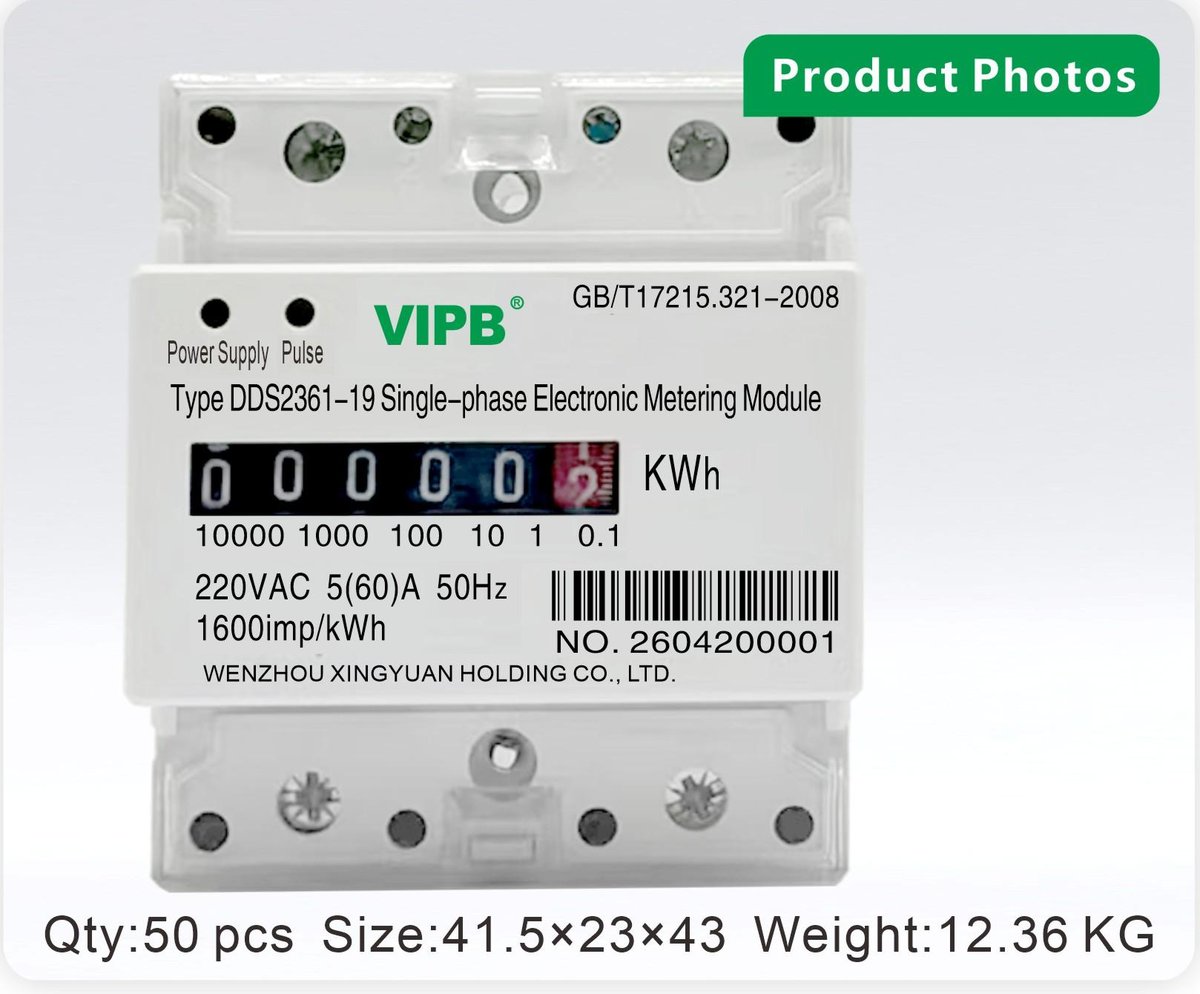

DDS2361-19
single-phase AC DIN-rail electricity meter / 4P
Description
The DDS2361-19 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Energy readings are shown on a mechanical counter register.
Product features: 4P Single-phase Counter Wiring mode: top in & bottom out. The housing measures 88mm×75mm×73mm and weighs ≈0.22kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DDS2361-19 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Product Dimensions | 88mm×75mm×73mm |
| Weight | ≈0.22kg |
| Display Mode | Counter |
| Product Features | 4P Single-phase Counter Wiring mode: top in & bottom out |
| Packing | 50pcs/ctn, 12.36kg, 41.5×23×43 |

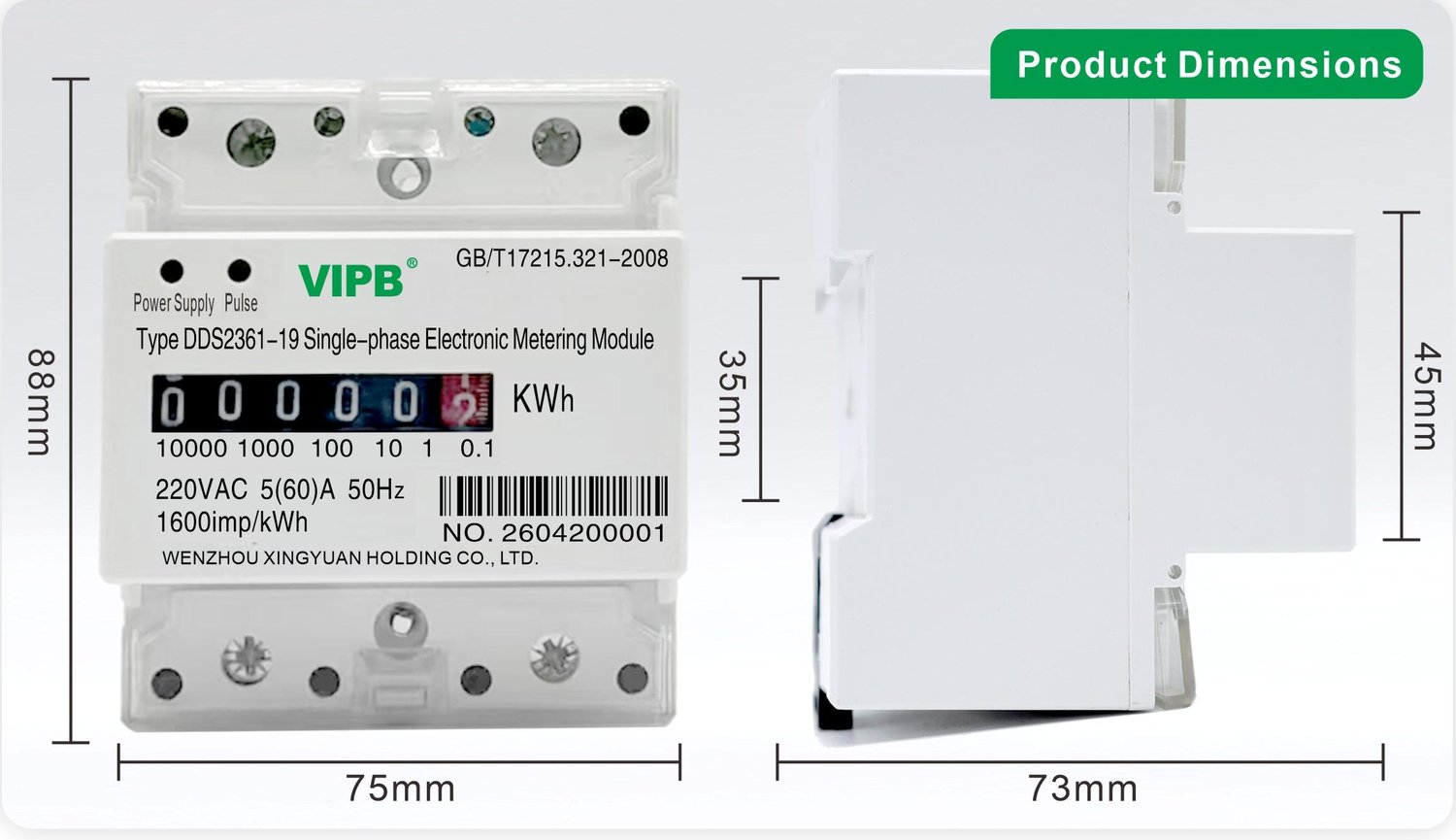

Dimensions
