DDS2361-100
single-phase AC DIN-rail electricity meter / 2P
Description

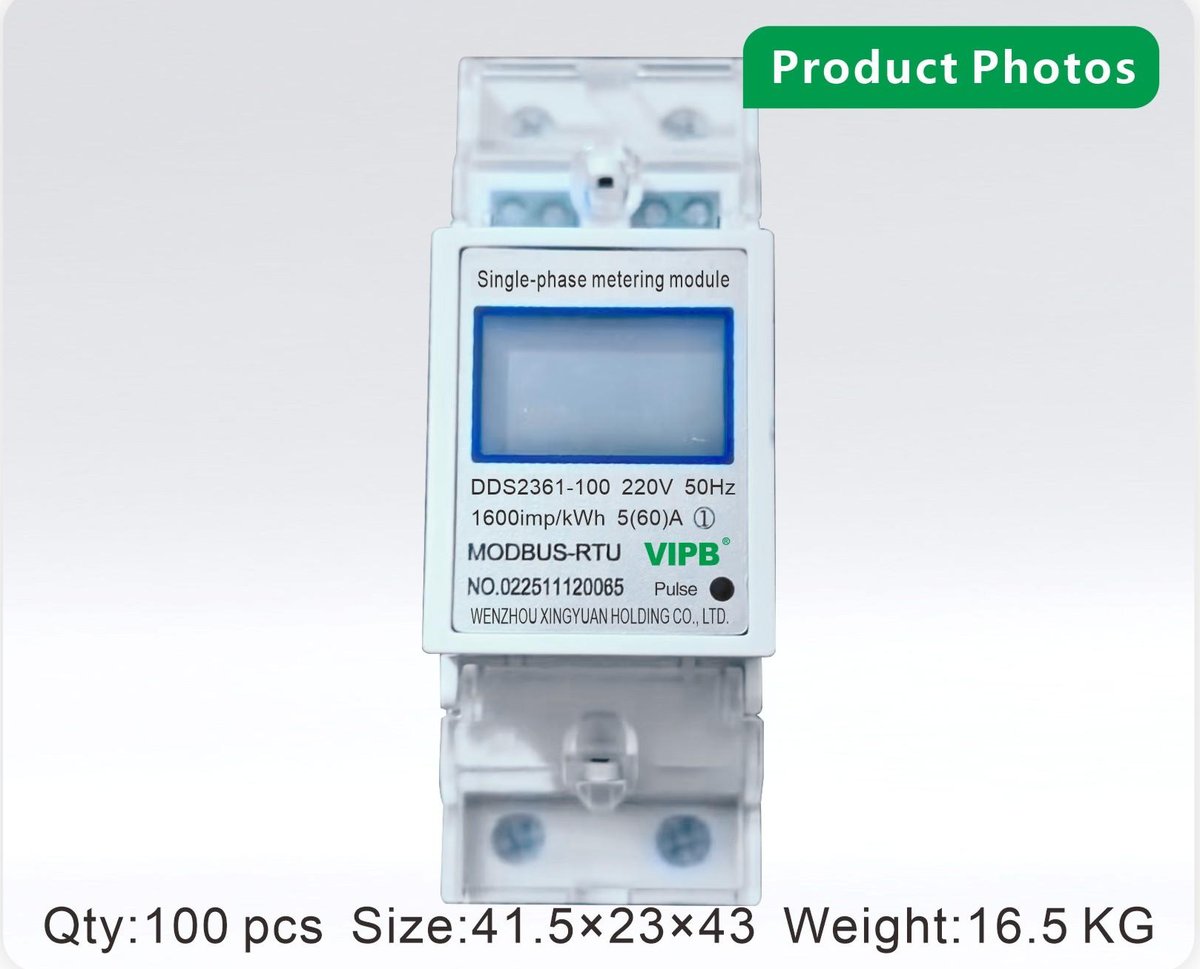

The DDS2361-100 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: New 2P RS485. The housing measures 100mm×36mm×66mm and weighs ≈0.16kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Model | DDS2361-100 |
| Voltage | 220V |
| Accuracy Class | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 100mm×36mm×66mm |
| Weight | ≈0.16kg |
| Display | LCD |
| Features | New 2P RS485 |
| Packing | 100pcs/ctn, 16.5kg, 41.5×23×43 |

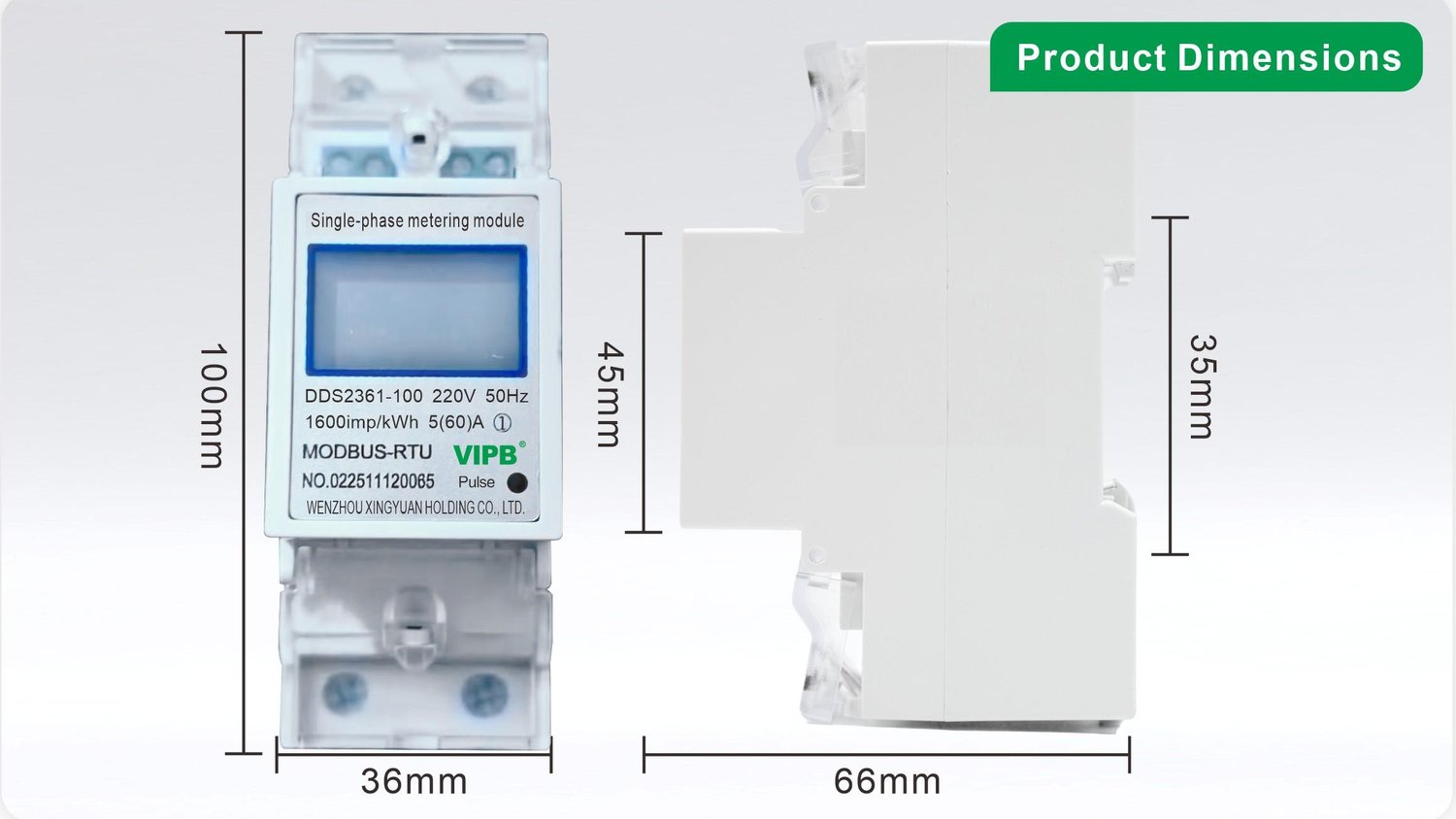

Dimensions
