DTS2361-75
three-phase AC wall-mounted electricity meter
Description
The DTS2361-75 is a three-phase wall-mounted electricity meter from VIPB (Wenzhou Xingyuan). It is designed for wall mounting. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. A pulse output supports remote meter reading.
Product features: Wall-mounted three-phase State Grid counter. The housing measures 69mm×145mm×215mm and weighs ≈0.84kg. Typical applications include residential and commercial energy metering, utility billing and building energy management.
Technical Specifications
| Product Model | DTS2361-75 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 69mm×145mm×215mm |
| Weight | ≈0.84kg |
| Interface Mode | Pulse |
| Product Features | Wall-mounted three-phase State Grid counter |
| Packing | 10pcs/ctn, 9.5kg, 51.5×35.5×26 |

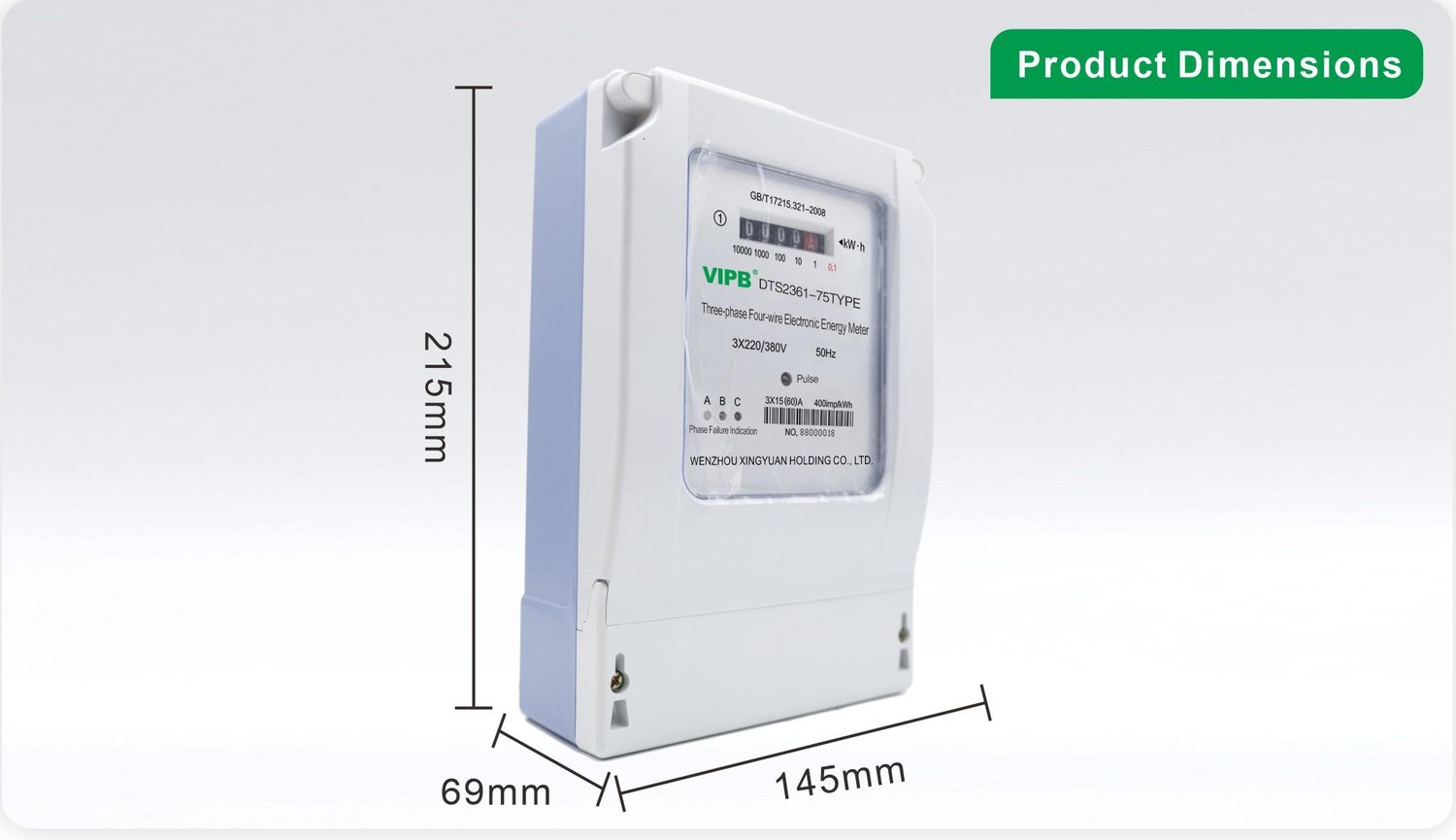

Dimensions
