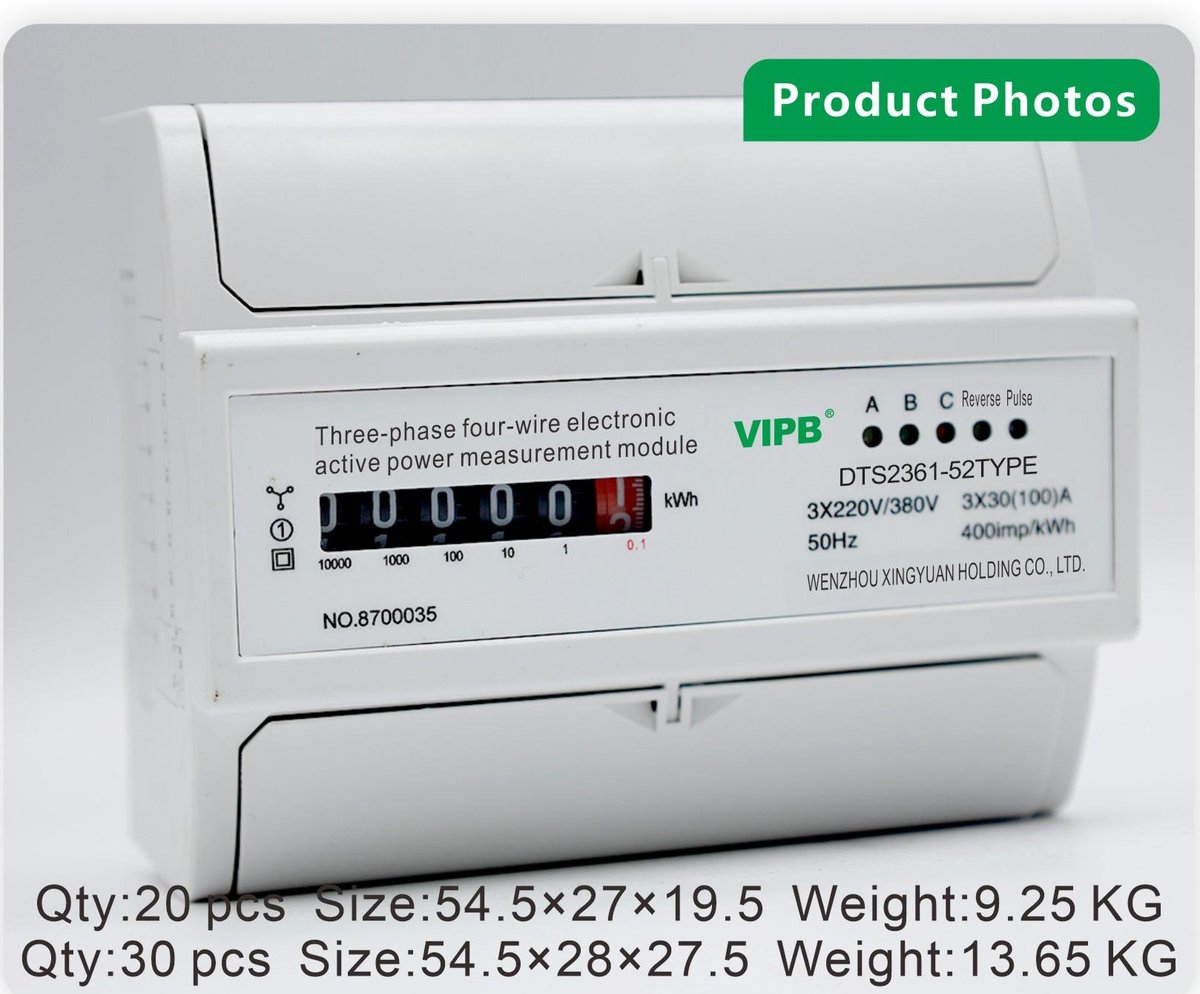

DTS2361-52
three-phase AC DIN-rail electricity meter / 7P
Description
The DTS2361-52 is a three-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Energy readings are shown on a mechanical counter register.
Product features: 7P three-phase counter metering Wiring: bottom in, bottom out. The housing measures 123mm×100mm×65mm and weighs ≈0.40kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DTS2361-52 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Product Dimensions | 123mm×100mm×65mm |
| Weight | ≈0.40kg |
| Display Mode | Mechanical digit counter |
| Product Features | 7P three-phase counter metering Wiring: bottom in, bottom out |
| Packing | 20pcs/ctn, 9.25kg, 54.5×27×19.5 |

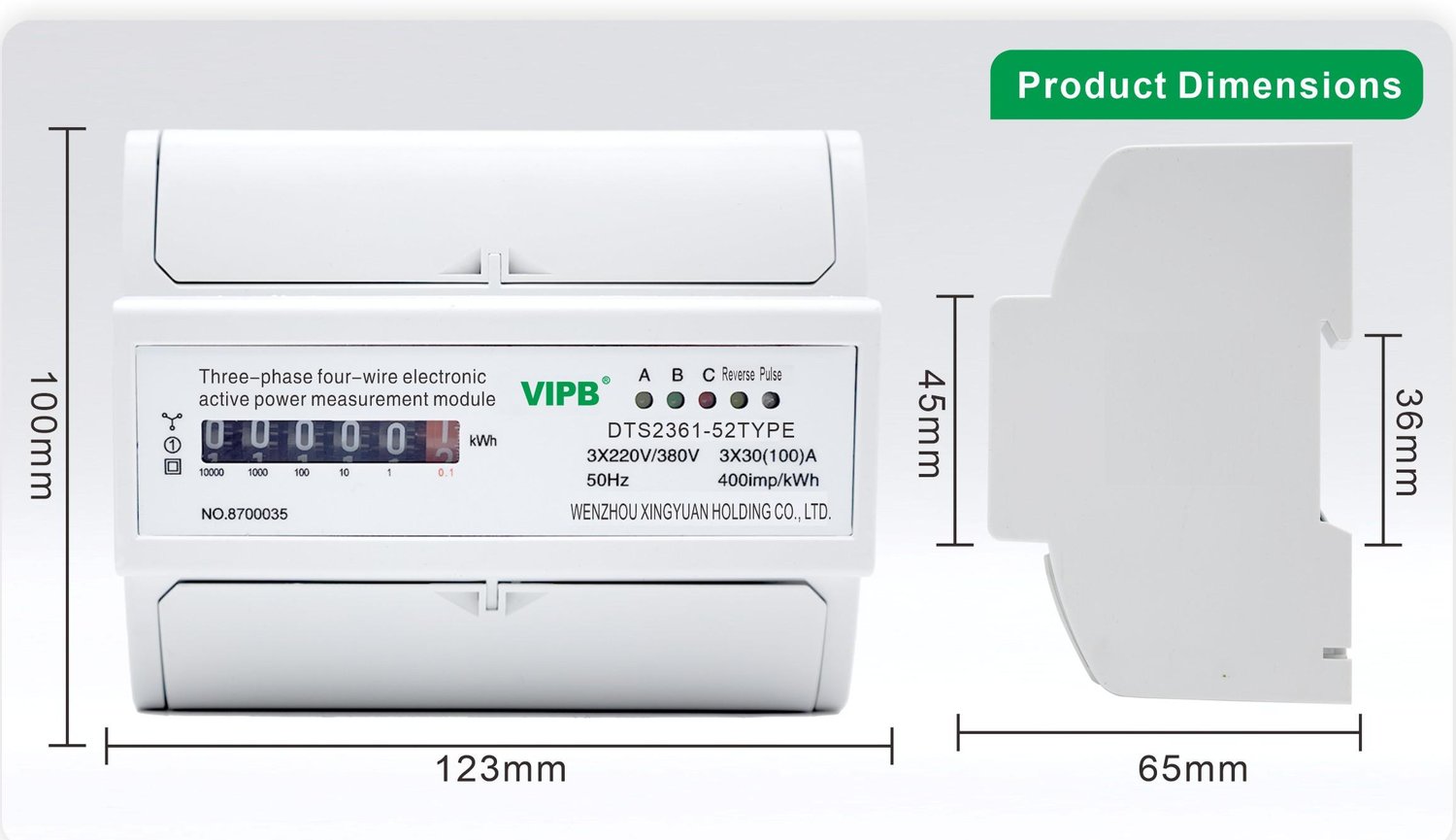

Dimensions
Related Models

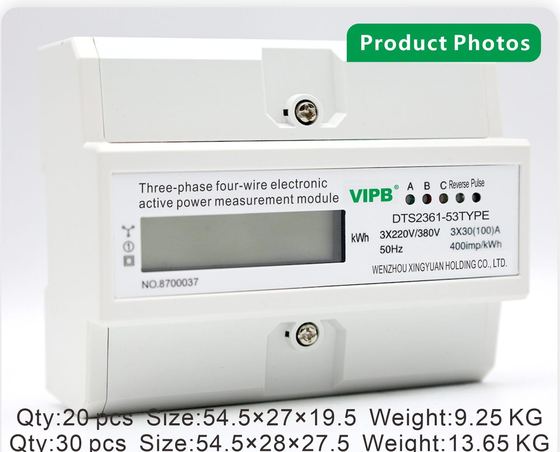

DTS2361-53
three-phase AC DIN-rail electricity meter / 7P

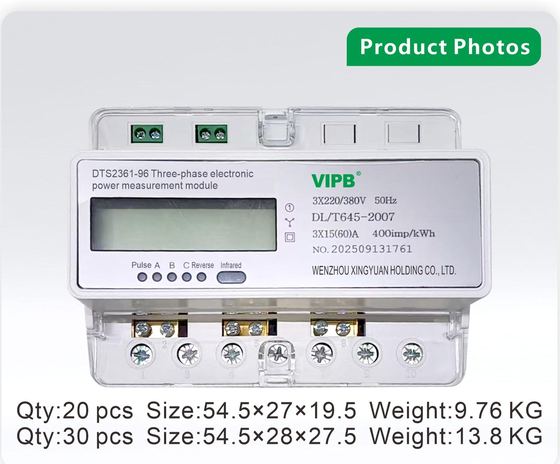

DTS2361-96
three-phase AC DIN-rail electricity meter / 7P

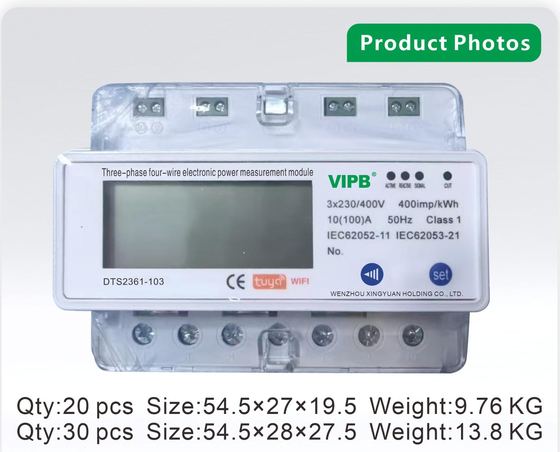

DTS2361-103
