DTS2361-41
three-phase AC DIN-rail electricity meter / 7P
Description
The DTS2361-41 is a three-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V/380V, a rated current of 3×30(100)A, an accuracy of Class 1. Readings are shown on an LCD display.
Product features: 7P Three-phase Standard 485 Communication LCD Metering. The housing measures 126mm×97mm×76mm and weighs ≈0.48kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Product Model | DTS2361-41 |
| Voltage | 220V/380V |
| Accuracy | Class 1 |
| Rated Current | 3×30(100)A |
| Dimensions | 126mm×97mm×76mm |
| Weight | ≈0.48kg |
| Display Mode | LCD |
| Product Features | 7P Three-phase Standard 485 Communication LCD Metering |
| Packing | 20pcs/ctn, 10.85kg, 54.5×27×19.5 |

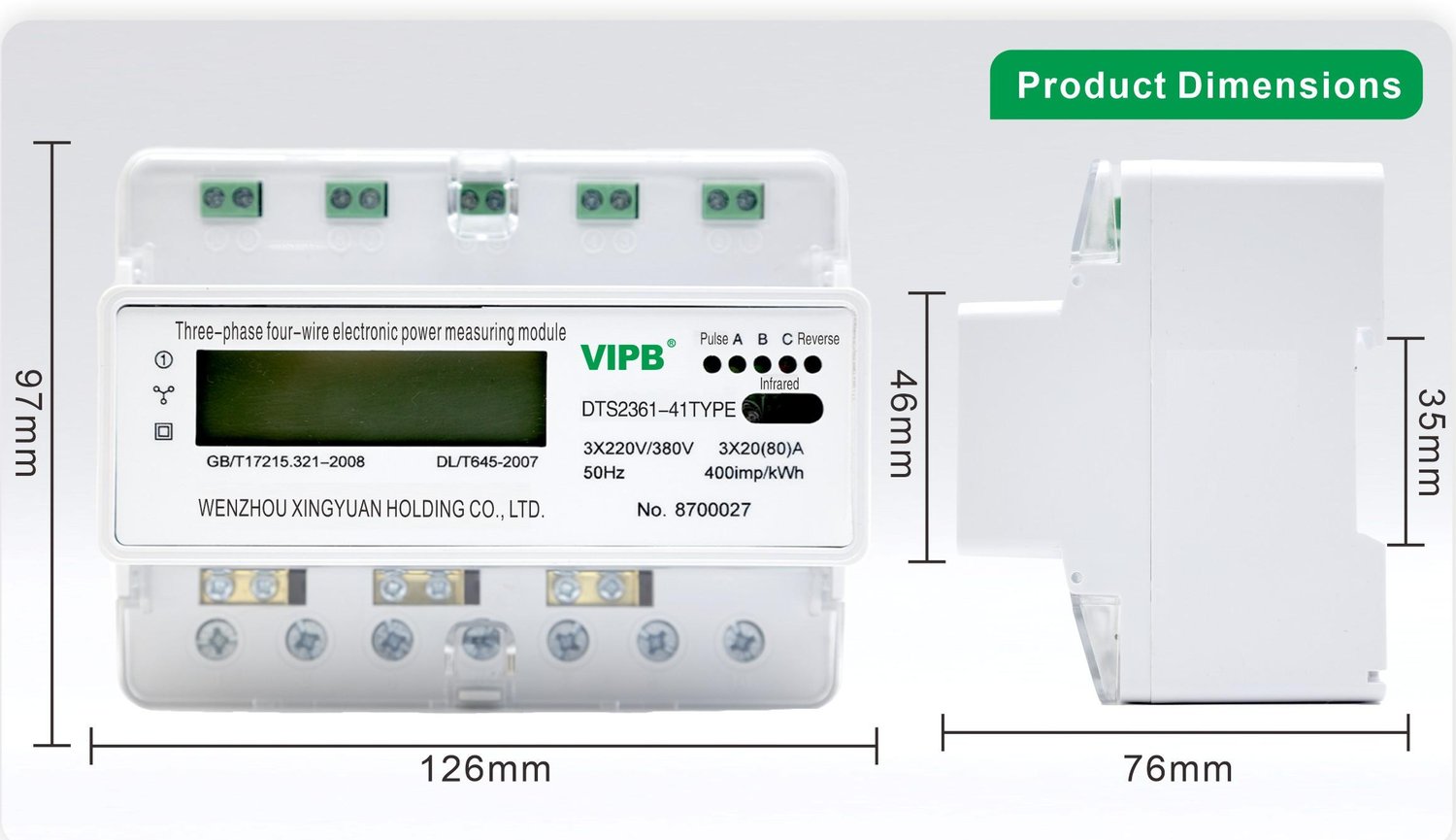

Dimensions
Related Models

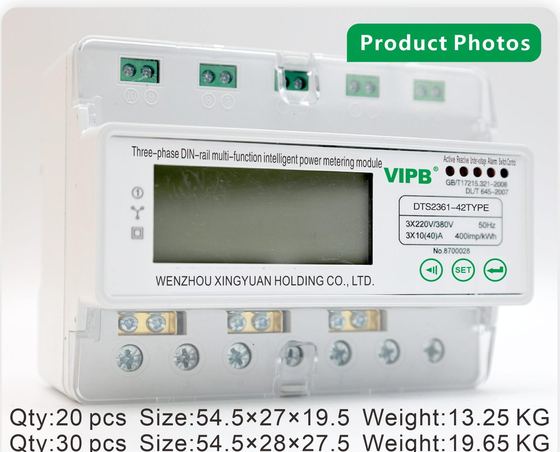

DTS2361-42
three-phase AC DIN-rail electricity meter / 7P

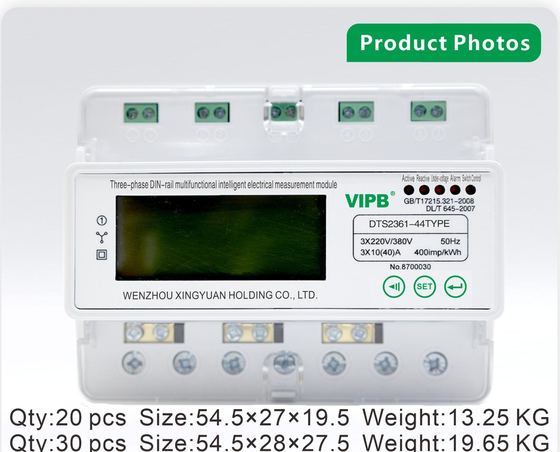

DTS2361-44
three-phase AC DIN-rail electricity meter / 7P

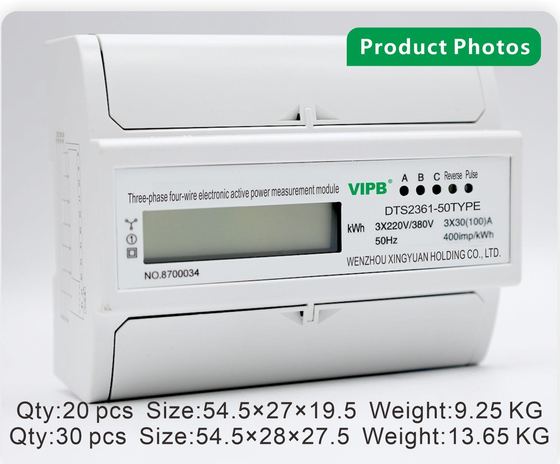

DTS2361-50
three-phase AC DIN-rail electricity meter / 7P
