DDS2361-6
single-phase AC DIN-rail electricity meter / 2P
Description

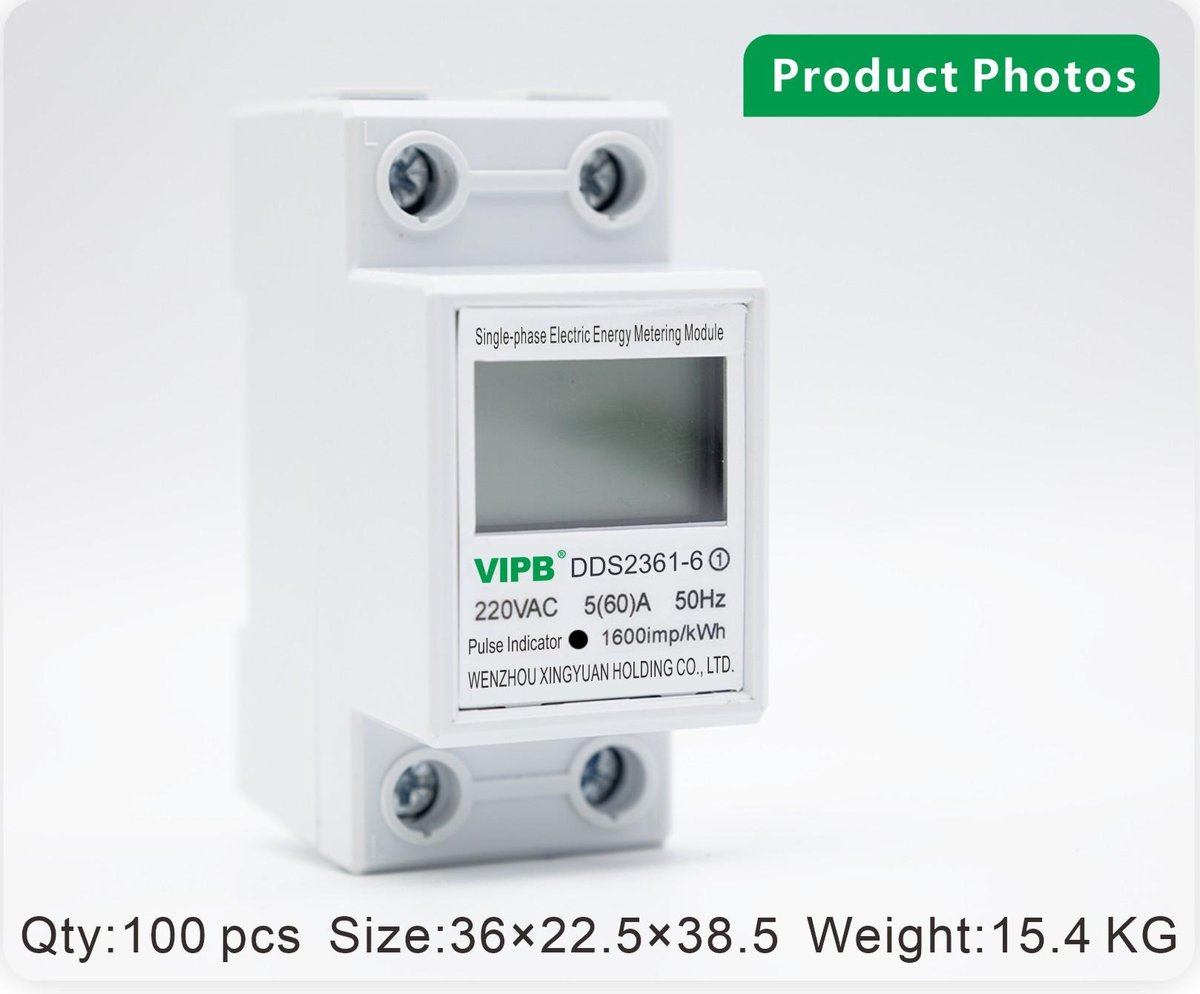

The DDS2361-6 is a single-phase DIN-rail electricity meter from VIPB (Wenzhou Xingyuan). It mounts on a standard 35 mm DIN rail. Key ratings: a rated voltage of 220V, a rated current of 5(60)A, an accuracy of Class 1. Readings are shown on an LCD display.
The housing measures 79mm×36mm×43mm and weighs ≈0.1kg. Typical applications include distribution boards, sub-metering for tenants and equipment, and energy monitoring in residential and commercial installations.
Technical Specifications
| Model | DDS2361-6 |
| Voltage | 220V |
| Accuracy | Class 1 |
| Rated Current | 5(60)A |
| Dimensions | 79mm×36mm×43mm |
| Weight | ≈0.1kg |
| Display Mode | LCD |
| Packing | 100pcs/ctn, 15.4kg, 36×22.5×38.5 |

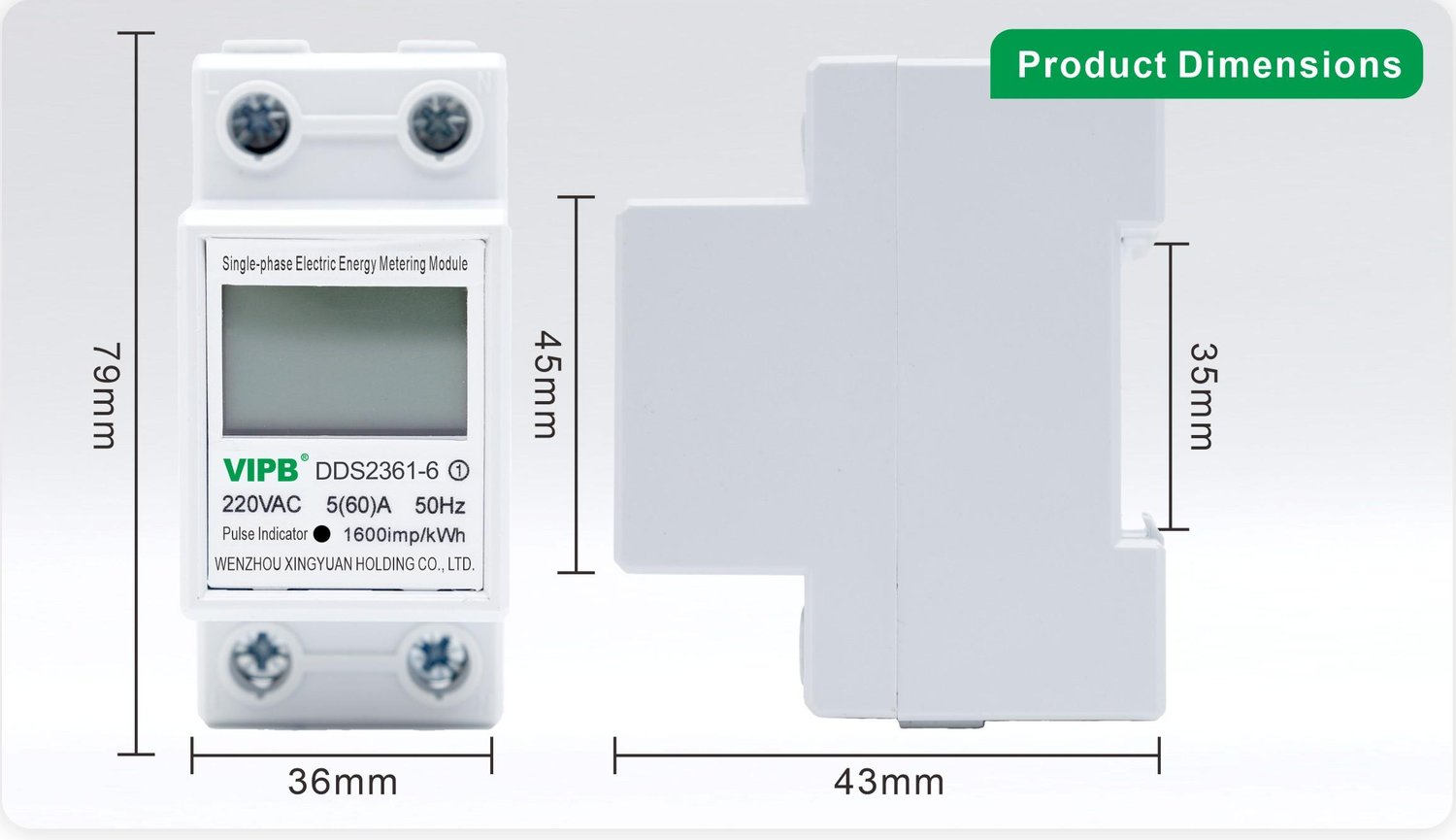

Dimensions
